GraphOfGridWrappers.hpp File Reference

#include <opm/common/OpmLog/OpmLog.hpp>
#include <opm/grid/GraphOfGrid.hpp>
#include <opm/grid/common/WellConnections.hpp>
#include <opm/grid/common/ZoltanGraphFunctions.hpp>

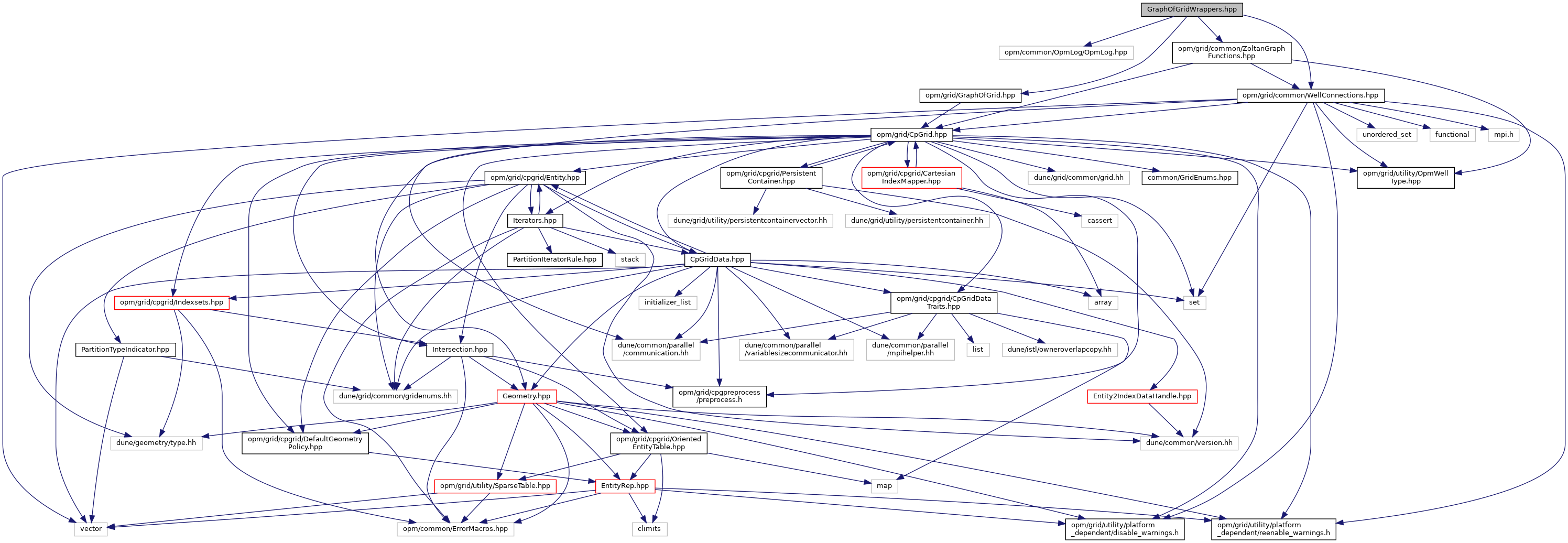

Include dependency graph for GraphOfGridWrappers.hpp:

Go to the source code of this file.

Namespaces
namespace	Opm
	Holds the implementation of the CpGrid as a pimple.
namespace	Opm::Impl

Functions
int	Opm::getGraphOfGridNumVertices (void *pGraph, int *err)
	callback function for ZOLTAN_NUM_OBJ_FN More...
void	Opm::getGraphOfGridVerticesList (void *pGraph, int dimGlobalID, int dimLocalID, ZOLTAN_ID_PTR gIDs, ZOLTAN_ID_PTR lIDs, int weightDim, float *objWeights, int *err)
	callback function for ZOLTAN_OBJ_LIST_FN More...
void	Opm::getGraphOfGridNumEdges (void *pGraph, int dimGlobalID, int dimLocalID, int numCells, ZOLTAN_ID_PTR gIDs, ZOLTAN_ID_PTR lIDs, int *numEdges, int *err)
	callback function for ZOLTAN_NUM_EDGES_MULTI_FN More...
void	Opm::getGraphOfGridEdgeList (void *pGraph, int dimGlobalID, int dimLocalID, int numCells, ZOLTAN_ID_PTR gIDs, ZOLTAN_ID_PTR lIDs, int *numEdges, ZOLTAN_ID_PTR nborGIDs, int *nborProc, int weightDim, float *edgeWeights, int *err)
	callback function for ZOLTAN_EDGE_LIST_MULTI_FN More...
template<typename Zoltan_Struct >
void	Opm::setGraphOfGridZoltanGraphFunctions (Zoltan_Struct *zz, GraphOfGrid< Dune::CpGrid > &gog, bool pretendNull)
	Register callback functions to Zoltan. More...
void	Opm::addFutureConnectionWells (GraphOfGrid< Dune::CpGrid > &gog, const std::unordered_map< std::string, std::set< int > > &wells, bool checkWellIntersections=true)
	Adds well to the GraphOfGrid. More...
void	Opm::addWellConnections (GraphOfGrid< Dune::CpGrid > &gog, const Dune::cpgrid::WellConnections &wells, bool checkWellIntersections=true)
	Add WellConnections to the GraphOfGrid. More...
void	Opm::extendGIDtoRank (const GraphOfGrid< Dune::CpGrid > &gog, std::vector< int > &gIDtoRank, const int &root=-1)
	Correct gIDtoRank's data about well cells. More...
void	Opm::Impl::extendAndSortImportList (std::vector< std::tuple< int, int, char, int > > &importList, const std::vector< int > &extraCells)
	Add cells to the import list and sort it. More...
std::vector< std::vector< int > >	Opm::Impl::extendRootExportList (const GraphOfGrid< Dune::CpGrid > &gog, std::vector< std::tuple< int, int, char > > &exportList, int root, const std::vector< int > &gIDtoRank)
	Add well cells' global IDs to the root's export list and output cells missing in other rank's import lists. More...
std::vector< int >	Opm::Impl::communicateExportedCells (const std::vector< std::vector< int > > &exportedCells, const Dune::cpgrid::CpGridDataTraits::Communication &cc, int root)
	Communicate cells exported from root, needed for extending other rank's import lists. More...
void	Opm::extendAndSortExportAndImportLists (const GraphOfGrid< Dune::CpGrid > &gog, const Dune::cpgrid::CpGridDataTraits::Communication &cc, int root, std::vector< std::tuple< int, int, char > > &exportList, std::vector< std::tuple< int, int, char, int > > &importList, const std::vector< int > &gIDtoRank={})
	Add well cells' global IDs to the root's export and others' import list. More...
std::vector< int >	Opm::getWellRanks (const std::vector< int > &gIDtoRank, const Dune::cpgrid::WellConnections &wellConnections)
	Find to which ranks wells were assigned. More...
std::vector< std::pair< std::string, bool > >	Opm::wellsOnThisRank (const std::vector< Dune::cpgrid::OpmWellType > &wells, const std::vector< int > &wellRanks, const Dune::cpgrid::CpGridDataTraits::Communication &cc, int root)
	Get rank-specific information about which wells are present. More...
template<class Id >
std::tuple< std::vector< int >, std::vector< std::pair< std::string, bool > >, std::vector< std::tuple< int, int, char > >, std::vector< std::tuple< int, int, char, int > > >	Opm::makeImportAndExportLists (const GraphOfGrid< Dune::CpGrid > &gog, const Dune::Communication< MPI_Comm > &cc, const std::vector< Dune::cpgrid::OpmWellType > *wells, const Dune::cpgrid::WellConnections &wellConnections, int root, int numExport, int numImport, const Id *exportLocalGids, const Id *exportGlobalGids, const int *exportToPart, const Id *importGlobalGids, int level)
	Transform Zoltan output into tuples. More...
std::tuple< std::vector< int >, std::vector< std::pair< std::string, bool > >, std::vector< std::tuple< int, int, char > >, std::vector< std::tuple< int, int, char, int > >, Dune::cpgrid::WellConnections >	Opm::zoltanPartitioningWithGraphOfGrid (const Dune::CpGrid &grid, const std::vector< Dune::cpgrid::OpmWellType > *wells, const std::unordered_map< std::string, std::set< int > > &possibleFutureConnections, const double *transmissibilities, const Dune::cpgrid::CpGridDataTraits::Communication &cc, Dune::EdgeWeightMethod edgeWeightMethod, int root, const double zoltanImbalanceTol, bool allowDistributedWells, const std::map< std::string, std::string > &params, int level)
	Call Zoltan partitioner on GraphOfGrid. More...
std::vector< std::vector< int > >	Opm::makeExportListsFromGIDtoRank (const std::vector< int > &gIDtoRank, int ccsize)
	Make complete export lists from a vector holding destination rank for each global ID. More...
std::tuple< std::vector< int >, std::vector< std::pair< std::string, bool > >, std::vector< std::tuple< int, int, char > >, std::vector< std::tuple< int, int, char, int > >, Dune::cpgrid::WellConnections >	Opm::zoltanSerialPartitioningWithGraphOfGrid (const Dune::CpGrid &grid, const std::vector< Dune::cpgrid::OpmWellType > *wells, const std::unordered_map< std::string, std::set< int > > &possibleFutureConnections, const double *transmissibilities, const Dune::cpgrid::CpGridDataTraits::Communication &cc, Dune::EdgeWeightMethod edgeWeightMethod, int root, const double zoltanImbalanceTol, bool allowDistributedWells, const std::map< std::string, std::string > &params)
	Call serial Zoltan partitioner on GraphOfGrid. More...
