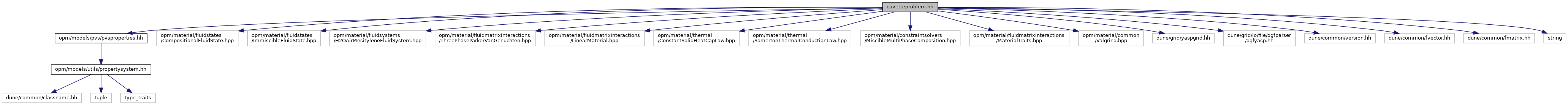

#include <opm/models/pvs/pvsproperties.hh>#include <opm/material/fluidstates/CompositionalFluidState.hpp>#include <opm/material/fluidstates/ImmiscibleFluidState.hpp>#include <opm/material/fluidsystems/H2OAirMesityleneFluidSystem.hpp>#include <opm/material/fluidmatrixinteractions/ThreePhaseParkerVanGenuchten.hpp>#include <opm/material/fluidmatrixinteractions/LinearMaterial.hpp>#include <opm/material/thermal/ConstantSolidHeatCapLaw.hpp>#include <opm/material/thermal/SomertonThermalConductionLaw.hpp>#include <opm/material/constraintsolvers/MiscibleMultiPhaseComposition.hpp>#include <opm/material/fluidmatrixinteractions/MaterialTraits.hpp>#include <opm/material/common/Valgrind.hpp>#include <dune/grid/yaspgrid.hh>#include <dune/grid/io/file/dgfparser/dgfyasp.hh>#include <dune/common/version.hh>#include <dune/common/fvector.hh>#include <dune/common/fmatrix.hh>#include <string>
Go to the source code of this file.
Classes | |
| struct | Opm::Properties::TTag::CuvetteBaseProblem |
| struct | Opm::Properties::Grid< TypeTag, TTag::CuvetteBaseProblem > |
| struct | Opm::Properties::Problem< TypeTag, TTag::CuvetteBaseProblem > |
| struct | Opm::Properties::FluidSystem< TypeTag, TTag::CuvetteBaseProblem > |
| struct | Opm::Properties::MaterialLaw< TypeTag, TTag::CuvetteBaseProblem > |
| struct | Opm::Properties::SolidEnergyLaw< TypeTag, TTag::CuvetteBaseProblem > |
| struct | Opm::Properties::ThermalConductionLaw< TypeTag, TTag::CuvetteBaseProblem > |
| class | Opm::CuvetteProblem< TypeTag > |
| Non-isothermal three-phase gas injection problem where a hot gas is injected into a unsaturated porous medium with a residually trapped NAPL contamination. More... | |
Namespaces | |
| namespace | Opm |
| namespace | Opm::Properties |
| namespace | Opm::Properties::TTag |
| The generic type tag for problems using the immiscible multi-phase model. | |
Detailed Description
Non-isothermal three-phase gas injection problem where a hot gas is injected into a unsaturated porous medium with a residually trapped NAPL contamination.
The domain is a quasi-two-dimensional container (cuvette). Its dimensions are 1.5 m x 0.74 m. The top and bottom boundaries are closed, the right boundary is a free-flow boundary allowing fluids to escape. From the left, an injection of a hot water-air mixture is injected. The set-up is aimed at remediating an initial NAPL (Non-Aquoeus Phase Liquid) contamination in the domain. The contamination is initially placed partly into the ambient coarse sand and partly into a fine sand lens.
This simulation can be varied through assigning different boundary conditions at the left boundary as described in Class (2001): Theorie und numerische Modellierung nichtisothermer Mehrphasenprozesse in NAPL-kontaminierten poroesen Medien, Dissertation, Eigenverlag des Instituts fuer Wasserbau
To see the basic effect and the differences to scenarios with pure steam or pure air injection, it is sufficient to simulate this problem to about 2-3 hours simulation time. Complete remediation of the domain requires much longer (about 10 days simulated time).
