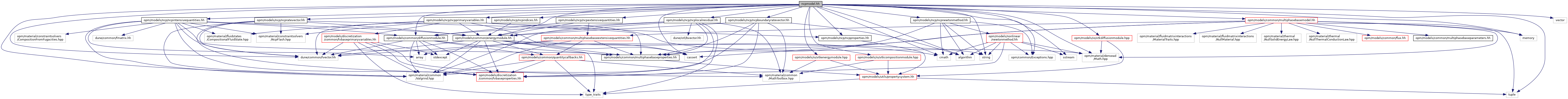

#include <dune/common/fvector.hh>#include <opm/common/Exceptions.hpp>#include <opm/material/common/Valgrind.hpp>#include <opm/material/densead/Math.hpp>#include <opm/models/ncp/ncpproperties.hh>#include <opm/models/ncp/ncplocalresidual.hh>#include <opm/models/ncp/ncpextensivequantities.hh>#include <opm/models/ncp/ncpprimaryvariables.hh>#include <opm/models/ncp/ncpboundaryratevector.hh>#include <opm/models/ncp/ncpratevector.hh>#include <opm/models/ncp/ncpintensivequantities.hh>#include <opm/models/ncp/ncpnewtonmethod.hh>#include <opm/models/ncp/ncpindices.hh>#include <opm/models/common/diffusionmodule.hh>#include <opm/models/common/energymodule.hh>#include <opm/models/common/multiphasebasemodel.hh>#include <opm/models/io/vtkcompositionmodule.hpp>#include <opm/models/io/vtkdiffusionmodule.hpp>#include <opm/models/io/vtkenergymodule.hpp>#include <algorithm>#include <cassert>#include <cmath>#include <memory>#include <sstream>#include <string>#include <tuple>#include <vector>
Go to the source code of this file.
Namespaces | |
| namespace | Opm |
| namespace | Opm::Properties |
| namespace | Opm::Properties::TTag |
| The generic type tag for problems using the immiscible multi-phase model. | |
Detailed Description
A compositional multi-phase model based on non-linear complementarity functions.
This model implements a
-phase flow of a fluid mixture composed of
chemical species. The phases are denoted by lower index
. All fluid phases are mixtures of
chemical species which are denoted by the upper index
.
By default, the standard multi-phase Darcy approach is used to determine the velocity, i.e.
![\[
\mathbf{v}_\alpha = - \frac{k_{r\alpha}}{\mu_\alpha} \mathbf{K}
\left(\mathbf{grad}\, p_\alpha - \varrho_{\alpha} \mathbf{g} \right) \;,
\]](form_84.png)
although the actual approach which is used can be specified via the FluxModule property. For example, the velocity model can by changed to the Forchheimer approach by
The core of the model is the conservation mass of each component by means of the equation
![\[
\sum_\alpha \frac{\partial\;\phi c_\alpha^\kappa S_\alpha }{\partial t}
- \sum_\alpha \mathrm{div} \left\{ c_\alpha^\kappa \mathbf{v}_\alpha \right\}
- q^\kappa = 0 \;.
\]](form_67.png)
For the missing model assumptions, the model uses non-linear complementarity functions. These are based on the observation that if a fluid phase is not present, the sum of the mole fractions of this fluid phase is smaller than
, i.e.
![\[ \forall \alpha: S_\alpha = 0 \implies \sum_\kappa
x_\alpha^\kappa \leq 1 \]](form_86.png)
Also, if a fluid phase may be present at a given spatial location its saturation must be non-negative:
![\[ \forall \alpha: \sum_\kappa x_\alpha^\kappa = 1 \implies S_\alpha \geq 0
*\]](form_87.png)
Since at any given spatial location, a phase is always either present or not present, one of the strict equalities on the right hand side is always true, i.e.
![\[
\forall \alpha: S_\alpha \left( \sum_\kappa x_\alpha^\kappa - 1 \right) = 0
\]](form_88.png)
always holds.
These three equations constitute a non-linear complementarity problem, which can be solved using so-called non-linear complementarity functions
. Such functions have the property
![\[\Phi(a,b) = 0 \iff a \geq0 \land b \geq0 \land a \cdot b = 0 \]](form_90.png)
Several non-linear complementarity functions have been suggested, e.g. the Fischer-Burmeister function
![\[ \Phi(a,b) = a + b - \sqrt{a^2 + b^2} \;. \]](form_91.png)
This model uses
![\[ \Phi(a,b) = \min \{a, b \}\;, \]](form_92.png)
because of its piecewise linearity.
The model assumes local thermodynamic equilibrium and uses the following primary variables:
- The pressure of the first phase
- The component fugacities
- The saturations of the first
phases
- Temperature
if the energy equation is enabled
