outflowproblem.hh File Reference
#include <opm/models/pvs/pvsproperties.hh>
#include <opm/material/fluidstates/CompositionalFluidState.hpp>
#include <opm/material/fluidsystems/H2ON2LiquidPhaseFluidSystem.hpp>
#include <dune/grid/yaspgrid.hh>
#include <dune/grid/io/file/dgfparser/dgfyasp.hh>
#include <dune/common/version.hh>
#include <dune/common/fvector.hh>
#include <dune/common/fmatrix.hh>

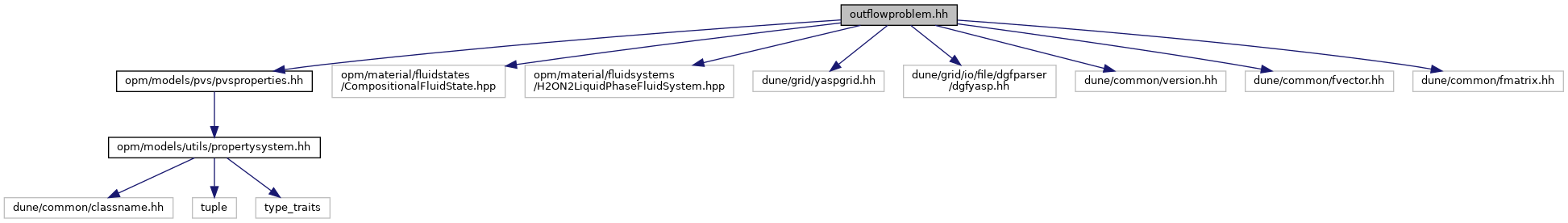

Include dependency graph for outflowproblem.hh:

Go to the source code of this file.

Classes

struct  Opm::Properties::TTag::OutflowBaseProblem

struct  Opm::Properties::Grid< TypeTag, TTag::OutflowBaseProblem >

struct  Opm::Properties::Problem< TypeTag, TTag::OutflowBaseProblem >

struct  Opm::Properties::FluidSystem< TypeTag, TTag::OutflowBaseProblem >

class  Opm::OutflowProblem< TypeTag >
 Problem where dissolved nitrogen is transported with the water phase from the left side to the right. More...


Namespaces

namespace  Opm

namespace  Opm::Properties

namespace  Opm::Properties::TTag
 The generic type tag for problems using the immiscible multi-phase model.


Detailed Description

Problem where dissolved nitrogen is transported with the water phase from the left side to the right.

The model domain is 1m times 1m and exhibits homogeneous soil properties ( $ \mathrm{K=10e-10, \Phi=0.4}$). Initially the domain is fully saturated by water without any nitrogen dissolved.

At the left side, a free-flow condition defines a nitrogen mole fraction of 0.02%. The water phase flows from the left side to the right due to the imposed pressure gradient of $1e5\,Pa/m$. The nitrogen is transported with the water flow and leaves the domain at the right boundary where an outflow boundary condition is used.
