parallelbasebackend.hh File Reference

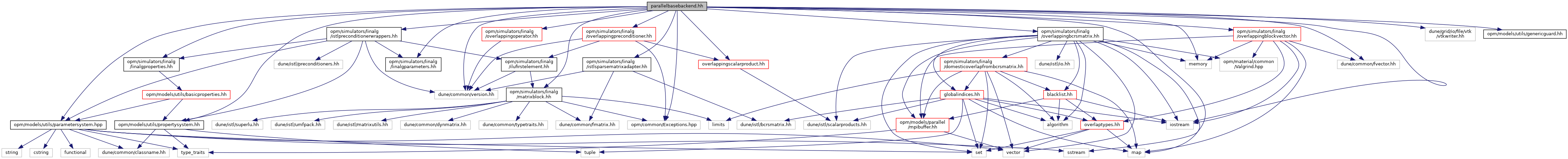

Include dependency graph for parallelbasebackend.hh:

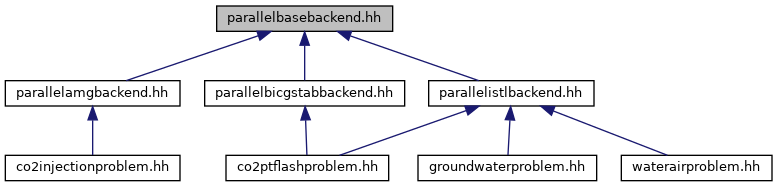

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

struct  Opm::Properties::TTag::ParallelBaseLinearSolver

struct  Opm::Properties::SparseMatrixAdapter< TypeTag, TTag::ParallelBaseLinearSolver >

class  Opm::Linear::ParallelBaseBackend< TypeTag >
 Provides the common code which is required by most linear solvers. More...

struct  Opm::Properties::LinearSolverScalar< TypeTag, TTag::ParallelBaseLinearSolver >

struct  Opm::Properties::OverlappingMatrix< TypeTag, TTag::ParallelBaseLinearSolver >

struct  Opm::Properties::Overlap< TypeTag, TTag::ParallelBaseLinearSolver >

struct  Opm::Properties::OverlappingVector< TypeTag, TTag::ParallelBaseLinearSolver >

struct  Opm::Properties::OverlappingScalarProduct< TypeTag, TTag::ParallelBaseLinearSolver >

struct  Opm::Properties::OverlappingLinearOperator< TypeTag, TTag::ParallelBaseLinearSolver >

struct  Opm::Properties::PreconditionerWrapper< TypeTag, TTag::ParallelBaseLinearSolver >


Namespaces

namespace  Opm

namespace  Opm::Properties

namespace  Opm::Properties::TTag
 The generic type tag for problems using the immiscible multi-phase model.

namespace  Opm::Linear


Detailed Description

Provides the common code which is required by most linear solvers.

This class provides access to all preconditioners offered by dune-istl using the PreconditionerWrapper property:

template<class TypeTag>
struct PreconditionerWrapper<TypeTag, TTag::YourTypeTag>
{ using type = Opm::Linear::PreconditionerWrapper$PRECONDITIONER<TypeTag>; };

Where the choices possible for '$PRECONDITIONER' are:

  • Jacobi: A Jacobi preconditioner
  • GaussSeidel: A Gauss-Seidel preconditioner
  • SSOR: A symmetric successive overrelaxation (SSOR) preconditioner
  • SOR: A successive overrelaxation (SOR) preconditioner
  • ILUn: An ILU(n) preconditioner
  • ILU0: An ILU(0) preconditioner. The results of this preconditioner are the same as setting the PreconditionerOrder property to 0 and using the ILU(n) preconditioner. The reason for the existence of ILU0 is that it is computationally cheaper because it does not need to consider things which are only required for higher orders
