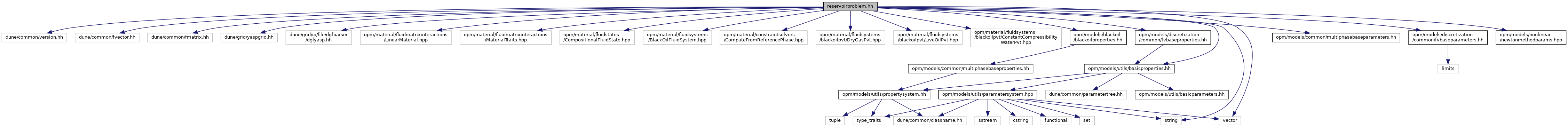

#include <dune/common/version.hh>#include <dune/common/fvector.hh>#include <dune/common/fmatrix.hh>#include <dune/grid/yaspgrid.hh>#include <dune/grid/io/file/dgfparser/dgfyasp.hh>#include <opm/material/fluidmatrixinteractions/LinearMaterial.hpp>#include <opm/material/fluidmatrixinteractions/MaterialTraits.hpp>#include <opm/material/fluidstates/CompositionalFluidState.hpp>#include <opm/material/fluidsystems/BlackOilFluidSystem.hpp>#include <opm/material/constraintsolvers/ComputeFromReferencePhase.hpp>#include <opm/material/fluidsystems/blackoilpvt/DryGasPvt.hpp>#include <opm/material/fluidsystems/blackoilpvt/LiveOilPvt.hpp>#include <opm/material/fluidsystems/blackoilpvt/ConstantCompressibilityWaterPvt.hpp>#include <opm/models/blackoil/blackoilproperties.hh>#include <opm/models/common/multiphasebaseparameters.hh>#include <opm/models/discretization/common/fvbaseparameters.hh>#include <opm/models/discretization/common/fvbaseproperties.hh>#include <opm/models/nonlinear/newtonmethodparams.hpp>#include <opm/models/utils/basicproperties.hh>#include <string>#include <vector>
Go to the source code of this file.
Classes | |
| struct | Opm::Properties::TTag::ReservoirBaseProblem |
| struct | Opm::Properties::Grid< TypeTag, TTag::ReservoirBaseProblem > |
| struct | Opm::Properties::Problem< TypeTag, TTag::ReservoirBaseProblem > |
| struct | Opm::Properties::MaterialLaw< TypeTag, TTag::ReservoirBaseProblem > |
| struct | Opm::Properties::EnableConstraints< TypeTag, TTag::ReservoirBaseProblem > |
| struct | Opm::Properties::FluidSystem< TypeTag, TTag::ReservoirBaseProblem > |
| Explicitly set the fluid system to the black-oil fluid system. More... | |
| struct | Opm::Parameters::MaxDepth< Scalar > |
| struct | Opm::Parameters::Temperature< Scalar > |
| struct | Opm::Parameters::WellWidth< Scalar > |
| class | Opm::ReservoirProblem< TypeTag > |
| Some simple test problem for the black-oil VCVF discretization inspired by an oil reservoir. More... | |
Namespaces | |
| namespace | Opm |
| namespace | Opm::Properties |
| namespace | Opm::Properties::TTag |
| The generic type tag for problems using the immiscible multi-phase model. | |
| namespace | Opm::Parameters |
Detailed Description
Some simple test problem for the black-oil VCVF discretization inspired by an oil reservoir.
The domain is two-dimensional and exhibits a size of 6000m times 60m. Initially, the reservoir is assumed by oil with a bubble point pressure of 20 MPa, which also the initial pressure in the domain. No-flow boundaries are used for all boundaries. The permeability of the lower 10 m is reduced compared to the upper 10 m of the domain witch capillary pressure always being neglected. Three wells are approximated using constraints: Two water-injector wells, one at the lower-left boundary one at the lower-right boundary and one producer well in the upper part of the center of the domain. The pressure for the producer is assumed to be 2/3 of the reservoir pressure, the injector wells use a pressure which is 50% above the reservoir pressure.
