This problem simulates an input file given in the data format used by the commercial ECLiPSE simulator. More...

#include <FlowGenericProblem.hpp>

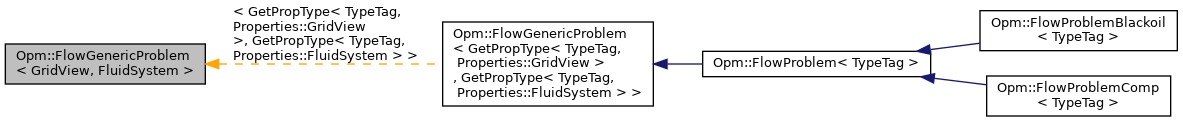

Inheritance diagram for Opm::FlowGenericProblem< GridView, FluidSystem >:

Classes
struct	RockParams

Public Types
using	Scalar = typename FluidSystem::Scalar

using	TabulatedTwoDFunction = UniformXTabulated2DFunction< Scalar >

using	TabulatedFunction = Tabulated1DFunction< Scalar >

Public Member Functions
	FlowGenericProblem (const EclipseState &eclState, const Schedule &schedule, const GridView &gridView)

Scalar	maxWaterSaturation (unsigned globalDofIdx) const
	Returns an element's historic maximum water phase saturation that was observed during the simulation. More...

Scalar	minOilPressure (unsigned globalDofIdx) const
	Returns an element's historic minimum pressure of the oil phase that was observed during the simulation. More...

Scalar	overburdenPressure (unsigned elementIdx) const
	Get the pressure of the overburden. More...

Scalar	referencePorosity (unsigned elementIdx, unsigned timeIdx) const
	Returns the porosity of an element. More...

Scalar	rockFraction (unsigned elementIdx, unsigned timeIdx) const
	Returns the rockFraction of an element. More...

void	setPorosity (Scalar poro, unsigned elementIdx, unsigned timeIdx=0)
	Sets the porosity of an element. More...

Scalar	solventSaturation (unsigned elemIdx) const
	Returns the initial solvent saturation for a given a cell index. More...

Scalar	solventRsw (unsigned elemIdx) const
	Returns the initial solvent dissolved in water for a given a cell index. More...

Scalar	drsdtcon (unsigned elemIdx, int episodeIdx) const
	Returns the dynamic drsdt convective mixing value. More...

Scalar	polymerConcentration (unsigned elemIdx) const
	Returns the initial polymer concentration for a given a cell index. More...

Scalar	polymerMolecularWeight (const unsigned elemIdx) const
	Returns the polymer molecule weight for a given cell index. More...

Scalar	microbialConcentration (unsigned elemIdx) const
	Returns the initial microbial concentration for a given a cell index. More...

Scalar	oxygenConcentration (unsigned elemIdx) const
	Returns the initial oxygen concentration for a given a cell index. More...

Scalar	ureaConcentration (unsigned elemIdx) const
	Returns the initial urea concentration for a given a cell index. More...

Scalar	biofilmConcentration (unsigned elemIdx) const
	Returns the initial biofilm concentration for a given a cell index. More...

Scalar	calciteConcentration (unsigned elemIdx) const
	Returns the initial calcite concentration for a given a cell index. More...

unsigned	pvtRegionIndex (unsigned elemIdx) const
	Returns the index the relevant PVT region given a cell index. More...

unsigned	satnumRegionIndex (unsigned elemIdx) const
	Returns the index the relevant saturation function region given a cell index. More...

unsigned	miscnumRegionIndex (unsigned elemIdx) const
	Returns the index the relevant MISC region given a cell index. More...

unsigned	plmixnumRegionIndex (unsigned elemIdx) const
	Returns the index the relevant PLMIXNUM (for polymer module) region given a cell index. More...

Scalar	maxPolymerAdsorption (unsigned elemIdx) const
	Returns the max polymer adsorption value. More...

Scalar	rockCompressibility (unsigned globalSpaceIdx) const

Scalar	rockReferencePressure (unsigned globalSpaceIdx) const

Scalar	porosity (unsigned globalSpaceIdx, unsigned timeIdx) const
	Direct indexed access to the porosity. More...

bool	vapparsActive (int episodeIdx) const

int	numPressurePointsEquil () const

bool	operator== (const FlowGenericProblem &rhs) const

template<class Serializer >
void	serializeOp (Serializer &serializer)

Static Public Member Functions
static FlowGenericProblem	serializationTestObject (const EclipseState &eclState, const Schedule &schedule, const GridView &gridView)

static std::string	helpPreamble (int, const char **argv)

static std::string	briefDescription ()

static void	setBriefDescription (const std::string &msg)
	Specifies the string returned by briefDescription() More...

Protected Types
using	Grid = std::remove_cv_t< typename std::remove_reference< decltype(gridView_.grid())>::type >

using	LookUpData = Opm::LookUpData< Grid, GridView >

Protected Member Functions
void	initFluidSystem_ ()

bool	shouldWriteOutput () const
	Always returns true. The ecl output writer takes care of the rest. More...

bool	shouldWriteRestartFile () const
	Returns true if an eWoms restart file should be written to disk. More...

bool	beginEpisode_ (bool enableExperiments, int episodeIdx)

void	beginTimeStep_ (bool enableExperiments, int episodeIdx, int timeStepIndex, Scalar startTime, Scalar time, Scalar timeStepSize, Scalar endTime)

void	readRockParameters_ (const std::vector< Scalar > &cellCenterDepths, std::function< std::array< int, 3 >(const unsigned)> ijkIndex)

void	readRockCompactionParameters_ ()

void	readBlackoilExtentionsInitialConditions_ (std::size_t numDof, bool enableSolvent, bool enablePolymer, bool enablePolymerMolarWeight, bool enableMICP)

void	updatePvtnum_ ()

void	updateSatnum_ ()

void	updateMiscnum_ ()

void	updatePlmixnum_ ()

void	updateKrnum_ ()

void	updateImbnum_ ()

std::function< unsigned(unsigned)>	lookupIdxOnLevelZeroAssigner_ ()

Protected Attributes
const EclipseState &	eclState_

const Schedule &	schedule_

const GridView &	gridView_

std::array< std::vector< Scalar >, 2 >	referencePorosity_

std::vector< int >	pvtnum_

std::vector< unsigned short >	satnum_

std::vector< unsigned short >	miscnum_

std::vector< unsigned short >	plmixnum_

std::vector< unsigned short >	krnumx_

std::vector< unsigned short >	krnumy_

std::vector< unsigned short >	krnumz_

std::vector< unsigned short >	imbnumx_

std::vector< unsigned short >	imbnumy_

std::vector< unsigned short >	imbnumz_

std::vector< RockParams >	rockParams_

std::vector< unsigned short >	rockTableIdx_

std::vector< TabulatedTwoDFunction >	rockCompPoroMultWc_

std::vector< TabulatedTwoDFunction >	rockCompTransMultWc_

std::vector< TabulatedFunction >	rockCompPoroMult_

std::vector< TabulatedFunction >	rockCompTransMult_

std::vector< Scalar >	rockCompTransMultVal_

PolymerSolutionContainer< Scalar >	polymer_

std::vector< Scalar >	maxOilSaturation_

std::vector< Scalar >	maxWaterSaturation_

std::vector< Scalar >	minRefPressure_

std::vector< Scalar >	overburdenPressure_

std::vector< Scalar >	solventSaturation_

std::vector< Scalar >	solventRsw_

MICPSolutionContainer< Scalar >	micp_

MixingRateControls< FluidSystem >	mixControls_

bool	enableTuning_

Scalar	initialTimeStepSize_

Scalar	maxTimeStepAfterWellEvent_

int	numPressurePointsEquil_

const LookUpData	lookUpData_

Static Protected Attributes
static std::string	briefDescription_

Detailed Description

template<class GridView, class FluidSystem>
class Opm::FlowGenericProblem< GridView, FluidSystem >

This problem simulates an input file given in the data format used by the commercial ECLiPSE simulator.

Member Typedef Documentation

◆ Grid

template<class GridView , class FluidSystem >

using Opm::FlowGenericProblem< GridView, FluidSystem >::Grid = std::remove_cv_t< typename std::remove_reference<decltype(gridView_.grid())>::type>

protected

◆ LookUpData

template<class GridView , class FluidSystem >

using Opm::FlowGenericProblem< GridView, FluidSystem >::LookUpData = Opm::LookUpData<Grid,GridView>

protected

◆ Scalar

template<class GridView , class FluidSystem >

using Opm::FlowGenericProblem< GridView, FluidSystem >::Scalar = typename FluidSystem::Scalar

◆ TabulatedFunction

template<class GridView , class FluidSystem >

using Opm::FlowGenericProblem< GridView, FluidSystem >::TabulatedFunction = Tabulated1DFunction<Scalar>

◆ TabulatedTwoDFunction

template<class GridView , class FluidSystem >

using Opm::FlowGenericProblem< GridView, FluidSystem >::TabulatedTwoDFunction = UniformXTabulated2DFunction<Scalar>

Constructor & Destructor Documentation

◆ FlowGenericProblem()

template<class GridView , class FluidSystem >

Opm::FlowGenericProblem< GridView, FluidSystem >::FlowGenericProblem	(	const EclipseState &	eclState,
		const Schedule &	schedule,
		const GridView &	gridView
	)

Member Function Documentation

◆ beginEpisode_()

template<class GridView , class FluidSystem >

bool Opm::FlowGenericProblem< GridView, FluidSystem >::beginEpisode_	(	bool	enableExperiments,
		int	episodeIdx
	)

protected

◆ beginTimeStep_()

template<class GridView , class FluidSystem >

void Opm::FlowGenericProblem< GridView, FluidSystem >::beginTimeStep_	(	bool	enableExperiments,
		int	episodeIdx,
		int	timeStepIndex,
		Scalar	startTime,
		Scalar	time,
		Scalar	timeStepSize,
		Scalar	endTime
	)

protected

◆ biofilmConcentration()

template<class GridView , class FluidSystem >

FlowGenericProblem< GridView, FluidSystem >::Scalar Opm::FlowGenericProblem< GridView, FluidSystem >::biofilmConcentration ( unsigned elemIdx ) const

Returns the initial biofilm concentration for a given a cell index.

◆ briefDescription()

template<class GridView , class FluidSystem >

std::string Opm::FlowGenericProblem< GridView, FluidSystem >::briefDescription

static

Referenced by Opm::FlowGenericProblem< GetPropType< TypeTag, Properties::GridView >, GetPropType< TypeTag, Properties::FluidSystem > >::maxWaterSaturation().

◆ calciteConcentration()

template<class GridView , class FluidSystem >

FlowGenericProblem< GridView, FluidSystem >::Scalar Opm::FlowGenericProblem< GridView, FluidSystem >::calciteConcentration ( unsigned elemIdx ) const

Returns the initial calcite concentration for a given a cell index.

◆ drsdtcon()

template<class GridView , class FluidSystem >

FlowGenericProblem< GridView, FluidSystem >::Scalar Opm::FlowGenericProblem< GridView, FluidSystem >::drsdtcon	(	unsigned	elemIdx,
		int	episodeIdx
	)		const

Returns the dynamic drsdt convective mixing value.

◆ helpPreamble()

template<class GridView , class FluidSystem >

std::string Opm::FlowGenericProblem< GridView, FluidSystem >::helpPreamble	(	int	,
		const char **	argv
	)

static

◆ initFluidSystem_()

template<class GridView , class FluidSystem >

void Opm::FlowGenericProblem< GridView, FluidSystem >::initFluidSystem_

protected

◆ lookupIdxOnLevelZeroAssigner_()

template<class GridView , class FluidSystem >

std::function< unsigned(unsigned)> Opm::FlowGenericProblem< GridView, FluidSystem >::lookupIdxOnLevelZeroAssigner_ ( )

inlineprotected

References Opm::FlowGenericProblem< GridView, FluidSystem >::lookUpData_.

◆ maxPolymerAdsorption()

template<class GridView , class FluidSystem >

FlowGenericProblem< GridView, FluidSystem >::Scalar Opm::FlowGenericProblem< GridView, FluidSystem >::maxPolymerAdsorption ( unsigned elemIdx ) const

Returns the max polymer adsorption value.

◆ maxWaterSaturation()

template<class GridView , class FluidSystem >

FlowGenericProblem< GridView, FluidSystem >::Scalar Opm::FlowGenericProblem< GridView, FluidSystem >::maxWaterSaturation ( unsigned globalDofIdx ) const

Returns an element's historic maximum water phase saturation that was observed during the simulation.

In this context, "historic" means the the time before the current timestep began.

This is used for output of the maximum water saturation used as input for water induced rock compation ROCK2D/ROCK2DTR.

◆ microbialConcentration()

template<class GridView , class FluidSystem >

FlowGenericProblem< GridView, FluidSystem >::Scalar Opm::FlowGenericProblem< GridView, FluidSystem >::microbialConcentration ( unsigned elemIdx ) const

Returns the initial microbial concentration for a given a cell index.

◆ minOilPressure()

template<class GridView , class FluidSystem >

FlowGenericProblem< GridView, FluidSystem >::Scalar Opm::FlowGenericProblem< GridView, FluidSystem >::minOilPressure ( unsigned globalDofIdx ) const

Returns an element's historic minimum pressure of the oil phase that was observed during the simulation.

In this context, "historic" means the the time before the current timestep began.

This is used for output of the minimum pressure used as input for the irreversible rock compation option.

◆ miscnumRegionIndex()

template<class GridView , class FluidSystem >

unsigned Opm::FlowGenericProblem< GridView, FluidSystem >::miscnumRegionIndex ( unsigned elemIdx ) const

Returns the index the relevant MISC region given a cell index.

◆ numPressurePointsEquil()

template<class GridView , class FluidSystem >

int Opm::FlowGenericProblem< GridView, FluidSystem >::numPressurePointsEquil ( ) const

inline

References Opm::FlowGenericProblem< GridView, FluidSystem >::numPressurePointsEquil_.

◆ operator==()

template<class GridView , class FluidSystem >

bool Opm::FlowGenericProblem< GridView, FluidSystem >::operator== ( const FlowGenericProblem< GridView, FluidSystem > & rhs ) const

◆ overburdenPressure()

template<class GridView , class FluidSystem >

FlowGenericProblem< GridView, FluidSystem >::Scalar Opm::FlowGenericProblem< GridView, FluidSystem >::overburdenPressure ( unsigned elementIdx ) const

Get the pressure of the overburden.

This method is mainly for output.

◆ oxygenConcentration()

template<class GridView , class FluidSystem >

FlowGenericProblem< GridView, FluidSystem >::Scalar Opm::FlowGenericProblem< GridView, FluidSystem >::oxygenConcentration ( unsigned elemIdx ) const

Returns the initial oxygen concentration for a given a cell index.

◆ plmixnumRegionIndex()

template<class GridView , class FluidSystem >

unsigned Opm::FlowGenericProblem< GridView, FluidSystem >::plmixnumRegionIndex ( unsigned elemIdx ) const

Returns the index the relevant PLMIXNUM (for polymer module) region given a cell index.

◆ polymerConcentration()

template<class GridView , class FluidSystem >

FlowGenericProblem< GridView, FluidSystem >::Scalar Opm::FlowGenericProblem< GridView, FluidSystem >::polymerConcentration ( unsigned elemIdx ) const

Returns the initial polymer concentration for a given a cell index.

◆ polymerMolecularWeight()

template<class GridView , class FluidSystem >

FlowGenericProblem< GridView, FluidSystem >::Scalar Opm::FlowGenericProblem< GridView, FluidSystem >::polymerMolecularWeight ( const unsigned elemIdx ) const

Returns the polymer molecule weight for a given cell index.

◆ porosity()

template<class GridView , class FluidSystem >

FlowGenericProblem< GridView, FluidSystem >::Scalar Opm::FlowGenericProblem< GridView, FluidSystem >::porosity	(	unsigned	globalSpaceIdx,
		unsigned	timeIdx
	)		const

Direct indexed access to the porosity.

For the FlowProblem, this method is identical to referencePorosity(). The intensive quantities object may apply various multipliers (e.g. ones which model rock compressibility and water induced rock compaction) to it which depend on the current physical conditions.

◆ pvtRegionIndex()

template<class GridView , class FluidSystem >

unsigned Opm::FlowGenericProblem< GridView, FluidSystem >::pvtRegionIndex ( unsigned elemIdx ) const

Returns the index the relevant PVT region given a cell index.

◆ readBlackoilExtentionsInitialConditions_()

template<class GridView , class FluidSystem >

void Opm::FlowGenericProblem< GridView, FluidSystem >::readBlackoilExtentionsInitialConditions_	(	std::size_t	numDof,
		bool	enableSolvent,
		bool	enablePolymer,
		bool	enablePolymerMolarWeight,
		bool	enableMICP
	)

protected

◆ readRockCompactionParameters_()

template<class GridView , class FluidSystem >

void Opm::FlowGenericProblem< GridView, FluidSystem >::readRockCompactionParameters_

protected

◆ readRockParameters_()

template<class GridView , class FluidSystem >

void Opm::FlowGenericProblem< GridView, FluidSystem >::readRockParameters_	(	const std::vector< Scalar > &	cellCenterDepths,
		std::function< std::array< int, 3 >(const unsigned)>	ijkIndex
	)

protected

◆ referencePorosity()

template<class GridView , class FluidSystem >

Scalar Opm::FlowGenericProblem< GridView, FluidSystem >::referencePorosity	(	unsigned	elementIdx,
		unsigned	timeIdx
	)		const

inline

Returns the porosity of an element.

The reference porosity of an element is the porosity of the medium before modified by the current solution. Note that this method is not part of the generic eWoms problem API because it would bake the assumption that only the elements are the degrees of freedom into the interface.

References Opm::FlowGenericProblem< GridView, FluidSystem >::referencePorosity_.

◆ rockCompressibility()

template<class GridView , class FluidSystem >

FlowGenericProblem< GridView, FluidSystem >::Scalar Opm::FlowGenericProblem< GridView, FluidSystem >::rockCompressibility ( unsigned globalSpaceIdx ) const

Direct access to rock compressibility.

While the above overload could be implemented in terms of this method, that would require always looking up the global space index, which is not always needed.

◆ rockFraction()

template<class GridView , class FluidSystem >

FlowGenericProblem< GridView, FluidSystem >::Scalar Opm::FlowGenericProblem< GridView, FluidSystem >::rockFraction	(	unsigned	elementIdx,
		unsigned	timeIdx
	)		const

Returns the rockFraction of an element.

Usually 1 - porosity, but if pvmult is used to modify porosity we will apply the same multiplier to the rock fraction i.e. pvmult*(1 - porosity) and thus interpret multpv as a volume multiplier. This is to avoid negative rock volume for pvmult*porosity > 1

◆ rockReferencePressure()

template<class GridView , class FluidSystem >

FlowGenericProblem< GridView, FluidSystem >::Scalar Opm::FlowGenericProblem< GridView, FluidSystem >::rockReferencePressure ( unsigned globalSpaceIdx ) const

Direct access to rock reference pressure.

While the above overload could be implemented in terms of this method, that would require always looking up the global space index, which is not always needed.

◆ satnumRegionIndex()

template<class GridView , class FluidSystem >

unsigned Opm::FlowGenericProblem< GridView, FluidSystem >::satnumRegionIndex ( unsigned elemIdx ) const

Returns the index the relevant saturation function region given a cell index.

◆ serializationTestObject()

template<class GridView , class FluidSystem >

FlowGenericProblem< GridView, FluidSystem > Opm::FlowGenericProblem< GridView, FluidSystem >::serializationTestObject	(	const EclipseState &	eclState,
		const Schedule &	schedule,
		const GridView &	gridView
	)

static

◆ serializeOp()

template<class GridView , class FluidSystem >

template<class Serializer >

void Opm::FlowGenericProblem< GridView, FluidSystem >::serializeOp ( Serializer & serializer )

inline

◆ setBriefDescription()

template<class GridView , class FluidSystem >

static void Opm::FlowGenericProblem< GridView, FluidSystem >::setBriefDescription ( const std::string & msg )

inlinestatic

Specifies the string returned by briefDescription()

This string appears in the usage message.

References Opm::FlowGenericProblem< GridView, FluidSystem >::briefDescription_.

◆ setPorosity()

template<class GridView , class FluidSystem >

void Opm::FlowGenericProblem< GridView, FluidSystem >::setPorosity	(	Scalar	poro,
		unsigned	elementIdx,
		unsigned	timeIdx = `0`
	)

inline

Sets the porosity of an element.

References Opm::FlowGenericProblem< GridView, FluidSystem >::referencePorosity_.

◆ shouldWriteOutput()

template<class GridView , class FluidSystem >

bool Opm::FlowGenericProblem< GridView, FluidSystem >::shouldWriteOutput ( ) const

inlineprotected

Always returns true. The ecl output writer takes care of the rest.

◆ shouldWriteRestartFile()

template<class GridView , class FluidSystem >

bool Opm::FlowGenericProblem< GridView, FluidSystem >::shouldWriteRestartFile ( ) const

inlineprotected

Returns true if an eWoms restart file should be written to disk.

The FlowProblem does not write any restart files using the ad-hoc format, only ones using the ECL format.

◆ solventRsw()

template<class GridView , class FluidSystem >

FlowGenericProblem< GridView, FluidSystem >::Scalar Opm::FlowGenericProblem< GridView, FluidSystem >::solventRsw ( unsigned elemIdx ) const

Returns the initial solvent dissolved in water for a given a cell index.

◆ solventSaturation()

template<class GridView , class FluidSystem >

FlowGenericProblem< GridView, FluidSystem >::Scalar Opm::FlowGenericProblem< GridView, FluidSystem >::solventSaturation ( unsigned elemIdx ) const

Returns the initial solvent saturation for a given a cell index.

◆ updateImbnum_()

template<class GridView , class FluidSystem >

void Opm::FlowGenericProblem< GridView, FluidSystem >::updateImbnum_

protected

◆ updateKrnum_()

template<class GridView , class FluidSystem >

void Opm::FlowGenericProblem< GridView, FluidSystem >::updateKrnum_

protected

◆ updateMiscnum_()

template<class GridView , class FluidSystem >

void Opm::FlowGenericProblem< GridView, FluidSystem >::updateMiscnum_

protected

◆ updatePlmixnum_()

template<class GridView , class FluidSystem >

void Opm::FlowGenericProblem< GridView, FluidSystem >::updatePlmixnum_

protected

◆ updatePvtnum_()

template<class GridView , class FluidSystem >

void Opm::FlowGenericProblem< GridView, FluidSystem >::updatePvtnum_

protected

◆ updateSatnum_()

template<class GridView , class FluidSystem >

void Opm::FlowGenericProblem< GridView, FluidSystem >::updateSatnum_

protected

◆ ureaConcentration()

template<class GridView , class FluidSystem >

FlowGenericProblem< GridView, FluidSystem >::Scalar Opm::FlowGenericProblem< GridView, FluidSystem >::ureaConcentration ( unsigned elemIdx ) const

Returns the initial urea concentration for a given a cell index.

◆ vapparsActive()

template<class GridView , class FluidSystem >

bool Opm::FlowGenericProblem< GridView, FluidSystem >::vapparsActive ( int episodeIdx ) const

Member Data Documentation

◆ briefDescription_

template<class GridView , class FluidSystem >

std::string Opm::FlowGenericProblem< GridView, FluidSystem >::briefDescription_

inlinestaticprotected

Referenced by Opm::FlowGenericProblem< GridView, FluidSystem >::setBriefDescription().

◆ eclState_

template<class GridView , class FluidSystem >

const EclipseState& Opm::FlowGenericProblem< GridView, FluidSystem >::eclState_

protected

◆ enableTuning_

template<class GridView , class FluidSystem >

bool Opm::FlowGenericProblem< GridView, FluidSystem >::enableTuning_

protected

◆ gridView_

template<class GridView , class FluidSystem >

const GridView& Opm::FlowGenericProblem< GridView, FluidSystem >::gridView_

protected

◆ imbnumx_

template<class GridView , class FluidSystem >

std::vector<unsigned short> Opm::FlowGenericProblem< GridView, FluidSystem >::imbnumx_

protected

◆ imbnumy_

template<class GridView , class FluidSystem >

std::vector<unsigned short> Opm::FlowGenericProblem< GridView, FluidSystem >::imbnumy_

protected

◆ imbnumz_

template<class GridView , class FluidSystem >

std::vector<unsigned short> Opm::FlowGenericProblem< GridView, FluidSystem >::imbnumz_

protected

◆ initialTimeStepSize_

template<class GridView , class FluidSystem >

Scalar Opm::FlowGenericProblem< GridView, FluidSystem >::initialTimeStepSize_

protected

◆ krnumx_

template<class GridView , class FluidSystem >

std::vector<unsigned short> Opm::FlowGenericProblem< GridView, FluidSystem >::krnumx_

protected

◆ krnumy_

template<class GridView , class FluidSystem >

std::vector<unsigned short> Opm::FlowGenericProblem< GridView, FluidSystem >::krnumy_

protected

◆ krnumz_

template<class GridView , class FluidSystem >

std::vector<unsigned short> Opm::FlowGenericProblem< GridView, FluidSystem >::krnumz_

protected

◆ lookUpData_

template<class GridView , class FluidSystem >

const LookUpData Opm::FlowGenericProblem< GridView, FluidSystem >::lookUpData_

protected

Referenced by Opm::FlowGenericProblem< GridView, FluidSystem >::lookupIdxOnLevelZeroAssigner_().

◆ maxOilSaturation_

template<class GridView , class FluidSystem >

std::vector<Scalar> Opm::FlowGenericProblem< GridView, FluidSystem >::maxOilSaturation_

protected

Referenced by Opm::FlowGenericProblem< GetPropType< TypeTag, Properties::GridView >, GetPropType< TypeTag, Properties::FluidSystem > >::briefDescription(), and Opm::FlowGenericProblem< GridView, FluidSystem >::serializeOp().

◆ maxTimeStepAfterWellEvent_

template<class GridView , class FluidSystem >

Scalar Opm::FlowGenericProblem< GridView, FluidSystem >::maxTimeStepAfterWellEvent_

protected

◆ maxWaterSaturation_

template<class GridView , class FluidSystem >

std::vector<Scalar> Opm::FlowGenericProblem< GridView, FluidSystem >::maxWaterSaturation_

protected

Referenced by Opm::FlowGenericProblem< GetPropType< TypeTag, Properties::GridView >, GetPropType< TypeTag, Properties::FluidSystem > >::briefDescription(), Opm::FlowGenericProblem< GridView, FluidSystem >::operator==(), and Opm::FlowGenericProblem< GridView, FluidSystem >::serializeOp().

◆ micp_

template<class GridView , class FluidSystem >

MICPSolutionContainer<Scalar> Opm::FlowGenericProblem< GridView, FluidSystem >::micp_

protected

Referenced by Opm::FlowGenericProblem< GetPropType< TypeTag, Properties::GridView >, GetPropType< TypeTag, Properties::FluidSystem > >::briefDescription(), Opm::FlowGenericProblem< GridView, FluidSystem >::operator==(), and Opm::FlowGenericProblem< GridView, FluidSystem >::serializeOp().

◆ minRefPressure_

template<class GridView , class FluidSystem >

std::vector<Scalar> Opm::FlowGenericProblem< GridView, FluidSystem >::minRefPressure_

protected

Referenced by Opm::FlowGenericProblem< GetPropType< TypeTag, Properties::GridView >, GetPropType< TypeTag, Properties::FluidSystem > >::briefDescription(), Opm::FlowGenericProblem< GridView, FluidSystem >::operator==(), and Opm::FlowGenericProblem< GridView, FluidSystem >::serializeOp().

◆ miscnum_

template<class GridView , class FluidSystem >

std::vector<unsigned short> Opm::FlowGenericProblem< GridView, FluidSystem >::miscnum_

protected

◆ mixControls_

template<class GridView , class FluidSystem >

MixingRateControls<FluidSystem> Opm::FlowGenericProblem< GridView, FluidSystem >::mixControls_

protected

Referenced by Opm::FlowGenericProblem< GetPropType< TypeTag, Properties::GridView >, GetPropType< TypeTag, Properties::FluidSystem > >::briefDescription(), Opm::FlowGenericProblem< GridView, FluidSystem >::operator==(), and Opm::FlowGenericProblem< GridView, FluidSystem >::serializeOp().

◆ numPressurePointsEquil_

template<class GridView , class FluidSystem >

int Opm::FlowGenericProblem< GridView, FluidSystem >::numPressurePointsEquil_

protected

Referenced by Opm::FlowGenericProblem< GridView, FluidSystem >::numPressurePointsEquil().

◆ overburdenPressure_

template<class GridView , class FluidSystem >

std::vector<Scalar> Opm::FlowGenericProblem< GridView, FluidSystem >::overburdenPressure_

protected

Referenced by Opm::FlowGenericProblem< GetPropType< TypeTag, Properties::GridView >, GetPropType< TypeTag, Properties::FluidSystem > >::briefDescription(), Opm::FlowGenericProblem< GridView, FluidSystem >::operator==(), and Opm::FlowGenericProblem< GridView, FluidSystem >::serializeOp().

◆ plmixnum_

template<class GridView , class FluidSystem >

std::vector<unsigned short> Opm::FlowGenericProblem< GridView, FluidSystem >::plmixnum_

protected

◆ polymer_

template<class GridView , class FluidSystem >

PolymerSolutionContainer<Scalar> Opm::FlowGenericProblem< GridView, FluidSystem >::polymer_

protected

Referenced by Opm::FlowGenericProblem< GetPropType< TypeTag, Properties::GridView >, GetPropType< TypeTag, Properties::FluidSystem > >::briefDescription(), Opm::FlowGenericProblem< GridView, FluidSystem >::operator==(), and Opm::FlowGenericProblem< GridView, FluidSystem >::serializeOp().

◆ pvtnum_

template<class GridView , class FluidSystem >

std::vector<int> Opm::FlowGenericProblem< GridView, FluidSystem >::pvtnum_

protected

◆ referencePorosity_

template<class GridView , class FluidSystem >

std::array<std::vector<Scalar>, 2> Opm::FlowGenericProblem< GridView, FluidSystem >::referencePorosity_

protected

Referenced by Opm::FlowGenericProblem< GridView, FluidSystem >::referencePorosity(), and Opm::FlowGenericProblem< GridView, FluidSystem >::setPorosity().

◆ rockCompPoroMult_

template<class GridView , class FluidSystem >

std::vector<TabulatedFunction> Opm::FlowGenericProblem< GridView, FluidSystem >::rockCompPoroMult_

protected

◆ rockCompPoroMultWc_

template<class GridView , class FluidSystem >

std::vector<TabulatedTwoDFunction> Opm::FlowGenericProblem< GridView, FluidSystem >::rockCompPoroMultWc_

protected

◆ rockCompTransMult_

template<class GridView , class FluidSystem >

std::vector<TabulatedFunction> Opm::FlowGenericProblem< GridView, FluidSystem >::rockCompTransMult_

protected

◆ rockCompTransMultVal_

template<class GridView , class FluidSystem >

std::vector<Scalar> Opm::FlowGenericProblem< GridView, FluidSystem >::rockCompTransMultVal_

protected

◆ rockCompTransMultWc_

template<class GridView , class FluidSystem >

std::vector<TabulatedTwoDFunction> Opm::FlowGenericProblem< GridView, FluidSystem >::rockCompTransMultWc_

protected

◆ rockParams_

template<class GridView , class FluidSystem >

std::vector<RockParams> Opm::FlowGenericProblem< GridView, FluidSystem >::rockParams_

protected

◆ rockTableIdx_

template<class GridView , class FluidSystem >

std::vector<unsigned short> Opm::FlowGenericProblem< GridView, FluidSystem >::rockTableIdx_

protected

◆ satnum_

template<class GridView , class FluidSystem >

std::vector<unsigned short> Opm::FlowGenericProblem< GridView, FluidSystem >::satnum_

protected

◆ schedule_

template<class GridView , class FluidSystem >

const Schedule& Opm::FlowGenericProblem< GridView, FluidSystem >::schedule_

protected

◆ solventRsw_

template<class GridView , class FluidSystem >

std::vector<Scalar> Opm::FlowGenericProblem< GridView, FluidSystem >::solventRsw_

protected

Referenced by Opm::FlowGenericProblem< GetPropType< TypeTag, Properties::GridView >, GetPropType< TypeTag, Properties::FluidSystem > >::briefDescription(), Opm::FlowGenericProblem< GridView, FluidSystem >::operator==(), and Opm::FlowGenericProblem< GridView, FluidSystem >::serializeOp().

◆ solventSaturation_

template<class GridView , class FluidSystem >

std::vector<Scalar> Opm::FlowGenericProblem< GridView, FluidSystem >::solventSaturation_

protected

Referenced by Opm::FlowGenericProblem< GetPropType< TypeTag, Properties::GridView >, GetPropType< TypeTag, Properties::FluidSystem > >::briefDescription(), Opm::FlowGenericProblem< GridView, FluidSystem >::operator==(), and Opm::FlowGenericProblem< GridView, FluidSystem >::serializeOp().

The documentation for this class was generated from the following files:

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Member Typedef Documentation

◆ Grid

◆ LookUpData

◆ Scalar

◆ TabulatedFunction

◆ TabulatedTwoDFunction

Constructor & Destructor Documentation

◆ FlowGenericProblem()

Member Function Documentation

◆ beginEpisode_()

◆ beginTimeStep_()

◆ biofilmConcentration()

◆ briefDescription()

◆ calciteConcentration()

◆ drsdtcon()

◆ helpPreamble()

◆ initFluidSystem_()

◆ lookupIdxOnLevelZeroAssigner_()

◆ maxPolymerAdsorption()

◆ maxWaterSaturation()

◆ microbialConcentration()

◆ minOilPressure()

◆ miscnumRegionIndex()

◆ numPressurePointsEquil()

◆ operator==()

◆ overburdenPressure()

◆ oxygenConcentration()

◆ plmixnumRegionIndex()

◆ polymerConcentration()

◆ polymerMolecularWeight()

◆ porosity()

◆ pvtRegionIndex()

◆ readBlackoilExtentionsInitialConditions_()

◆ readRockCompactionParameters_()

◆ readRockParameters_()

◆ referencePorosity()

◆ rockCompressibility()

◆ rockFraction()

◆ rockReferencePressure()

◆ satnumRegionIndex()

◆ serializationTestObject()

◆ serializeOp()

◆ setBriefDescription()

◆ setPorosity()

◆ shouldWriteOutput()

◆ shouldWriteRestartFile()

◆ solventRsw()

◆ solventSaturation()

◆ updateImbnum_()

◆ updateKrnum_()

◆ updateMiscnum_()

◆ updatePlmixnum_()

◆ updatePvtnum_()

◆ updateSatnum_()

◆ ureaConcentration()

◆ vapparsActive()

Member Data Documentation

◆ briefDescription_

◆ eclState_

◆ enableTuning_

◆ gridView_

◆ imbnumx_

◆ imbnumy_

◆ imbnumz_

◆ initialTimeStepSize_

◆ krnumx_

◆ krnumy_

◆ krnumz_

◆ lookUpData_

◆ maxOilSaturation_

◆ maxTimeStepAfterWellEvent_
