This class calculates the threshold pressure for grid faces according to the Eclipse Reference Manual. More...

#include <FlowThresholdPressure.hpp>

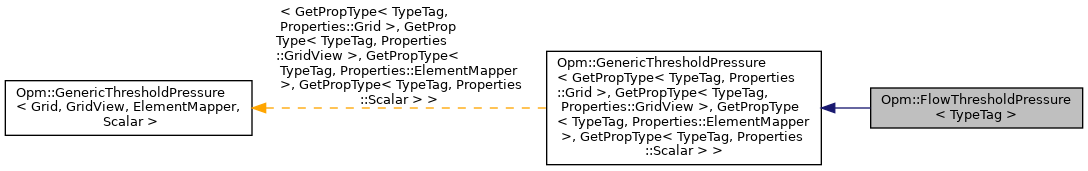

Inheritance diagram for Opm::FlowThresholdPressure< TypeTag >:

Public Types
using	CartesianIndexMapper = Dune::CartesianIndexMapper< GetPropType< TypeTag, Properties::Grid > >

using	LookUpData = Opm::LookUpData< GetPropType< TypeTag, Properties::Grid >, GetPropType< TypeTag, Properties::GridView > >

using	LookUpCartesianData = Opm::LookUpCartesianData< GetPropType< TypeTag, Properties::Grid >, GetPropType< TypeTag, Properties::GridView > >

Public Member Functions
	FlowThresholdPressure (const Simulator &simulator)

void	finishInit ()
	Actually compute the threshold pressures over a face as a pre-compute step. More...

GetPropType< TypeTag, Properties::Scalar >	thresholdPressure (int elem1Idx, int elem2Idx) const
	Returns the theshold pressure [Pa] for the intersection between two elements. More...

const std::vector< GetPropType< TypeTag, Properties::Scalar > > &	data () const
	Return the raw array with the threshold pressures. More...

void	setFromRestart (const std::vector< GetPropType< TypeTag, Properties::Scalar > > &values)
	Set the threshold pressures from a raw array. More...

std::vector< GetPropType< TypeTag, Properties::Scalar > >	getRestartVector () const
	Returns a fully expanded vector for restart file writing. More...

Protected Member Functions
void	applyExplicitThresholdPressures_ ()

void	configureThpresft_ ()

void	logPressures ()

Protected Attributes
const CartesianIndexMapper &	cartMapper_

const GetPropType< TypeTag, Properties::GridView > &	gridView_

const GetPropType< TypeTag, Properties::ElementMapper > &	elementMapper_

const LookUpData	lookUpData_

const LookUpCartesianData	lookUpCartesianData_

const EclipseState &	eclState_

std::vector< GetPropType< TypeTag, Properties::Scalar > >	thpresDefault_

std::vector< GetPropType< TypeTag, Properties::Scalar > >	thpres_

unsigned	numEquilRegions_

std::vector< unsigned short >	elemEquilRegion_

std::vector< GetPropType< TypeTag, Properties::Scalar > >	thpresftValues_

std::vector< int >	cartElemFaultIdx_

bool	enableThresholdPressure_

Detailed Description

template<class TypeTag>
class Opm::FlowThresholdPressure< TypeTag >

This class calculates the threshold pressure for grid faces according to the Eclipse Reference Manual.

If the difference of the pressure potential between two cells is below the threshold pressure, the pressure potential difference is assumed to be zero, if it is larger than the threshold pressure, it is reduced by the threshold pressure.

Member Typedef Documentation

◆ CartesianIndexMapper

using Opm::GenericThresholdPressure< GetPropType< TypeTag, Properties::Grid > , GetPropType< TypeTag, Properties::GridView > , GetPropType< TypeTag, Properties::ElementMapper > , GetPropType< TypeTag, Properties::Scalar > >::CartesianIndexMapper = Dune::CartesianIndexMapper<GetPropType< TypeTag, Properties::Grid > >

inherited

◆ LookUpCartesianData

using Opm::GenericThresholdPressure< GetPropType< TypeTag, Properties::Grid > , GetPropType< TypeTag, Properties::GridView > , GetPropType< TypeTag, Properties::ElementMapper > , GetPropType< TypeTag, Properties::Scalar > >::LookUpCartesianData = Opm::LookUpCartesianData<GetPropType< TypeTag, Properties::Grid > ,GetPropType< TypeTag, Properties::GridView > >

inherited

◆ LookUpData

using Opm::GenericThresholdPressure< GetPropType< TypeTag, Properties::Grid > , GetPropType< TypeTag, Properties::GridView > , GetPropType< TypeTag, Properties::ElementMapper > , GetPropType< TypeTag, Properties::Scalar > >::LookUpData = Opm::LookUpData<GetPropType< TypeTag, Properties::Grid > ,GetPropType< TypeTag, Properties::GridView > >

inherited

Constructor & Destructor Documentation

◆ FlowThresholdPressure()

template<class TypeTag >

Opm::FlowThresholdPressure< TypeTag >::FlowThresholdPressure ( const Simulator & simulator )

inline

Member Function Documentation

◆ applyExplicitThresholdPressures_()

void Opm::GenericThresholdPressure< GetPropType< TypeTag, Properties::Grid > , GetPropType< TypeTag, Properties::GridView > , GetPropType< TypeTag, Properties::ElementMapper > , GetPropType< TypeTag, Properties::Scalar > >::applyExplicitThresholdPressures_

protectedinherited

◆ configureThpresft_()

void Opm::GenericThresholdPressure< GetPropType< TypeTag, Properties::Grid > , GetPropType< TypeTag, Properties::GridView > , GetPropType< TypeTag, Properties::ElementMapper > , GetPropType< TypeTag, Properties::Scalar > >::configureThpresft_

protectedinherited

◆ data()

const std::vector< GetPropType< TypeTag, Properties::Scalar > > & Opm::GenericThresholdPressure< GetPropType< TypeTag, Properties::Grid > , GetPropType< TypeTag, Properties::GridView > , GetPropType< TypeTag, Properties::ElementMapper > , GetPropType< TypeTag, Properties::Scalar > >::data ( ) const

inlineinherited

Return the raw array with the threshold pressures.

This is used for the restart capability.

◆ finishInit()

template<class TypeTag >

void Opm::FlowThresholdPressure< TypeTag >::finishInit ( )

inline

Actually compute the threshold pressures over a face as a pre-compute step.

◆ getRestartVector()

std::vector< GetPropType< TypeTag, Properties::Scalar > > Opm::GenericThresholdPressure< GetPropType< TypeTag, Properties::Grid > , GetPropType< TypeTag, Properties::GridView > , GetPropType< TypeTag, Properties::ElementMapper > , GetPropType< TypeTag, Properties::Scalar > >::getRestartVector

inherited

Returns a fully expanded vector for restart file writing.

Returns the union of explicitly configured entries and defaulted values.

◆ logPressures()

void Opm::GenericThresholdPressure< GetPropType< TypeTag, Properties::Grid > , GetPropType< TypeTag, Properties::GridView > , GetPropType< TypeTag, Properties::ElementMapper > , GetPropType< TypeTag, Properties::Scalar > >::logPressures

protectedinherited

◆ setFromRestart()

void Opm::GenericThresholdPressure< GetPropType< TypeTag, Properties::Grid > , GetPropType< TypeTag, Properties::GridView > , GetPropType< TypeTag, Properties::ElementMapper > , GetPropType< TypeTag, Properties::Scalar > >::setFromRestart ( const std::vector< GetPropType< TypeTag, Properties::Scalar > > & values )

inlineinherited

Set the threshold pressures from a raw array.

This is used for the restart capability.

◆ thresholdPressure()

GetPropType< TypeTag, Properties::Scalar > Opm::GenericThresholdPressure< GetPropType< TypeTag, Properties::Grid > , GetPropType< TypeTag, Properties::GridView > , GetPropType< TypeTag, Properties::ElementMapper > , GetPropType< TypeTag, Properties::Scalar > >::thresholdPressure	(	int	elem1Idx,
		int	elem2Idx
	)		const

inherited

Returns the theshold pressure [Pa] for the intersection between two elements.

This is tailor made for the E100 threshold pressure mechanism and it is thus quite a hack: First of all threshold pressures in general are unphysical, and second, they should be different for the fluid phase but are not. Anyway, this seems to be E100's way of doing things, so we do it the same way.

Member Data Documentation

◆ cartElemFaultIdx_

std::vector<int> Opm::GenericThresholdPressure< GetPropType< TypeTag, Properties::Grid > , GetPropType< TypeTag, Properties::GridView > , GetPropType< TypeTag, Properties::ElementMapper > , GetPropType< TypeTag, Properties::Scalar > >::cartElemFaultIdx_

protectedinherited

◆ cartMapper_

const CartesianIndexMapper& Opm::GenericThresholdPressure< GetPropType< TypeTag, Properties::Grid > , GetPropType< TypeTag, Properties::GridView > , GetPropType< TypeTag, Properties::ElementMapper > , GetPropType< TypeTag, Properties::Scalar > >::cartMapper_

protectedinherited

◆ eclState_

const EclipseState& Opm::GenericThresholdPressure< GetPropType< TypeTag, Properties::Grid > , GetPropType< TypeTag, Properties::GridView > , GetPropType< TypeTag, Properties::ElementMapper > , GetPropType< TypeTag, Properties::Scalar > >::eclState_

protectedinherited

◆ elementMapper_

const GetPropType< TypeTag, Properties::ElementMapper > & Opm::GenericThresholdPressure< GetPropType< TypeTag, Properties::Grid > , GetPropType< TypeTag, Properties::GridView > , GetPropType< TypeTag, Properties::ElementMapper > , GetPropType< TypeTag, Properties::Scalar > >::elementMapper_

protectedinherited

◆ elemEquilRegion_

std::vector<unsigned short> Opm::GenericThresholdPressure< GetPropType< TypeTag, Properties::Grid > , GetPropType< TypeTag, Properties::GridView > , GetPropType< TypeTag, Properties::ElementMapper > , GetPropType< TypeTag, Properties::Scalar > >::elemEquilRegion_

protectedinherited

◆ enableThresholdPressure_

bool Opm::GenericThresholdPressure< GetPropType< TypeTag, Properties::Grid > , GetPropType< TypeTag, Properties::GridView > , GetPropType< TypeTag, Properties::ElementMapper > , GetPropType< TypeTag, Properties::Scalar > >::enableThresholdPressure_

protectedinherited

◆ gridView_

const GetPropType< TypeTag, Properties::GridView > & Opm::GenericThresholdPressure< GetPropType< TypeTag, Properties::Grid > , GetPropType< TypeTag, Properties::GridView > , GetPropType< TypeTag, Properties::ElementMapper > , GetPropType< TypeTag, Properties::Scalar > >::gridView_

protectedinherited

◆ lookUpCartesianData_

const LookUpCartesianData Opm::GenericThresholdPressure< GetPropType< TypeTag, Properties::Grid > , GetPropType< TypeTag, Properties::GridView > , GetPropType< TypeTag, Properties::ElementMapper > , GetPropType< TypeTag, Properties::Scalar > >::lookUpCartesianData_

protectedinherited

◆ lookUpData_

const LookUpData Opm::GenericThresholdPressure< GetPropType< TypeTag, Properties::Grid > , GetPropType< TypeTag, Properties::GridView > , GetPropType< TypeTag, Properties::ElementMapper > , GetPropType< TypeTag, Properties::Scalar > >::lookUpData_

protectedinherited

◆ numEquilRegions_

unsigned Opm::GenericThresholdPressure< GetPropType< TypeTag, Properties::Grid > , GetPropType< TypeTag, Properties::GridView > , GetPropType< TypeTag, Properties::ElementMapper > , GetPropType< TypeTag, Properties::Scalar > >::numEquilRegions_

protectedinherited

◆ thpres_

std::vector<GetPropType< TypeTag, Properties::Scalar > > Opm::GenericThresholdPressure< GetPropType< TypeTag, Properties::Grid > , GetPropType< TypeTag, Properties::GridView > , GetPropType< TypeTag, Properties::ElementMapper > , GetPropType< TypeTag, Properties::Scalar > >::thpres_

protectedinherited

◆ thpresDefault_

std::vector<GetPropType< TypeTag, Properties::Scalar > > Opm::GenericThresholdPressure< GetPropType< TypeTag, Properties::Grid > , GetPropType< TypeTag, Properties::GridView > , GetPropType< TypeTag, Properties::ElementMapper > , GetPropType< TypeTag, Properties::Scalar > >::thpresDefault_

protectedinherited

◆ thpresftValues_

std::vector<GetPropType< TypeTag, Properties::Scalar > > Opm::GenericThresholdPressure< GetPropType< TypeTag, Properties::Grid > , GetPropType< TypeTag, Properties::GridView > , GetPropType< TypeTag, Properties::ElementMapper > , GetPropType< TypeTag, Properties::Scalar > >::thpresftValues_

protectedinherited

The documentation for this class was generated from the following file:

FlowThresholdPressure.hpp
