#include <GenericCpGridVanguard.hpp>

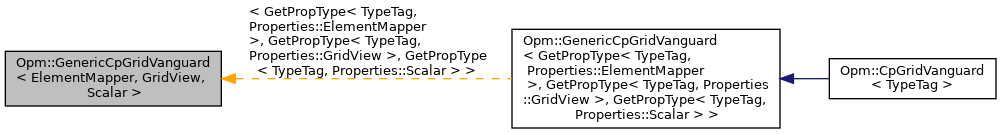

Inheritance diagram for Opm::GenericCpGridVanguard< ElementMapper, GridView, Scalar >:

Public Member Functions
	GenericCpGridVanguard ()

virtual	~GenericCpGridVanguard ()=default

Dune::CpGrid &	grid ()
	Return a reference to the simulation grid. More...

const Dune::CpGrid &	grid () const
	Return a reference to the simulation grid. More...

const Dune::CpGrid &	equilGrid () const
	Returns a refefence to the grid which should be used by the EQUIL initialization code. More...

void	releaseEquilGrid ()
	Indicates that the initial condition has been computed and the memory used by the EQUIL grid can be released. More...

const CartesianIndexMapper &	cartesianIndexMapper () const
	Returns the object which maps a global element index of the simulation grid to the corresponding element index of the logically Cartesian index. More...

const CartesianIndexMapper &	equilCartesianIndexMapper () const
	Returns mapper from compressed to cartesian indices for the EQUIL grid. More...

const std::vector< int > &	cellPartition () const

Static Public Member Functions
static void	setExternalLoadBalancer (const std::function< std::vector< int >(const Dune::CpGrid &)> &loadBalancer)
	Sets a function that returns external load balancing information when passed the grid. More...

Protected Types
using	CartesianIndexMapper = Dune::CartesianIndexMapper< Dune::CpGrid >

using	Element = typename GridView::template Codim< 0 >::Entity

Protected Member Functions
void	doLoadBalance_ (const Dune::EdgeWeightMethod edgeWeightsMethod, const bool ownersFirst, const bool serialPartitioning, const bool enableDistributedWells, const double zoltanImbalanceTol, const GridView &gridView, const Schedule &schedule, EclipseState &eclState, FlowGenericVanguard::ParallelWellStruct &parallelWells, const int numJacobiBlocks)
	Distribute the simulation grid over multiple processes. More...

void	distributeFieldProps_ (EclipseState &eclState)

virtual const std::string &	zoltanParams () const =0

void	allocCartMapper ()

void	doCreateGrids_ (EclipseState &eclState)

void	addLgrsUpdateLeafView (const LgrCollection &lgrCollection, const int lgrsSize)

virtual void	allocTrans ()=0

virtual double	getTransmissibility (unsigned I, unsigned J) const =0

void	doFilterConnections_ (Schedule &schedule)

Scalar	computeCellThickness (const Element &element) const

Protected Attributes
std::unique_ptr< Dune::CpGrid >	grid_

std::unique_ptr< Dune::CpGrid >	equilGrid_

std::unique_ptr< CartesianIndexMapper >	cartesianIndexMapper_

std::unique_ptr< CartesianIndexMapper >	equilCartesianIndexMapper_

int	mpiRank

std::vector< int >	cell_part_ {}

Member Typedef Documentation

◆ CartesianIndexMapper

template<class ElementMapper , class GridView , class Scalar >

using Opm::GenericCpGridVanguard< ElementMapper, GridView, Scalar >::CartesianIndexMapper = Dune::CartesianIndexMapper<Dune::CpGrid>

protected

◆ Element

template<class ElementMapper , class GridView , class Scalar >

using Opm::GenericCpGridVanguard< ElementMapper, GridView, Scalar >::Element = typename GridView::template Codim<0>::Entity

protected

Constructor & Destructor Documentation

◆ GenericCpGridVanguard()

template<class ElementMapper , class GridView , class Scalar >

Opm::GenericCpGridVanguard< ElementMapper, GridView, Scalar >::GenericCpGridVanguard ( )

◆ ~GenericCpGridVanguard()

template<class ElementMapper , class GridView , class Scalar >

virtual Opm::GenericCpGridVanguard< ElementMapper, GridView, Scalar >::~GenericCpGridVanguard ( )

virtualdefault

Member Function Documentation

◆ addLgrsUpdateLeafView()

template<class ElementMapper , class GridView , class Scalar >

void Opm::GenericCpGridVanguard< ElementMapper, GridView, Scalar >::addLgrsUpdateLeafView	(	const LgrCollection &	lgrCollection,
		const int	lgrsSize
	)

protected

◆ allocCartMapper()

template<class ElementMapper , class GridView , class Scalar >

void Opm::GenericCpGridVanguard< ElementMapper, GridView, Scalar >::allocCartMapper ( )

protected

◆ allocTrans()

template<class ElementMapper , class GridView , class Scalar >

virtual void Opm::GenericCpGridVanguard< ElementMapper, GridView, Scalar >::allocTrans ( )

protectedpure virtual

Implemented in Opm::CpGridVanguard< TypeTag >.

◆ cartesianIndexMapper()

template<class ElementMapper , class GridView , class Scalar >

const CartesianIndexMapper & Opm::GenericCpGridVanguard< ElementMapper, GridView, Scalar >::cartesianIndexMapper ( ) const

Returns the object which maps a global element index of the simulation grid to the corresponding element index of the logically Cartesian index.

◆ cellPartition()

template<class ElementMapper , class GridView , class Scalar >

const std::vector< int > & Opm::GenericCpGridVanguard< ElementMapper, GridView, Scalar >::cellPartition ( ) const

inline

References Opm::GenericCpGridVanguard< ElementMapper, GridView, Scalar >::cell_part_.

◆ computeCellThickness()

template<class ElementMapper , class GridView , class Scalar >

Scalar Opm::GenericCpGridVanguard< ElementMapper, GridView, Scalar >::computeCellThickness ( const Element & element ) const

protected

◆ distributeFieldProps_()

template<class ElementMapper , class GridView , class Scalar >

void Opm::GenericCpGridVanguard< ElementMapper, GridView, Scalar >::distributeFieldProps_ ( EclipseState & eclState )

protected

◆ doCreateGrids_()

template<class ElementMapper , class GridView , class Scalar >

void Opm::GenericCpGridVanguard< ElementMapper, GridView, Scalar >::doCreateGrids_ ( EclipseState & eclState )

protected

◆ doFilterConnections_()

template<class ElementMapper , class GridView , class Scalar >

void Opm::GenericCpGridVanguard< ElementMapper, GridView, Scalar >::doFilterConnections_ ( Schedule & schedule )

protected

◆ doLoadBalance_()

template<class ElementMapper , class GridView , class Scalar >

void Opm::GenericCpGridVanguard< ElementMapper, GridView, Scalar >::doLoadBalance_	(	const Dune::EdgeWeightMethod	edgeWeightsMethod,
		const bool	ownersFirst,
		const bool	serialPartitioning,
		const bool	enableDistributedWells,
		const double	zoltanImbalanceTol,
		const GridView &	gridView,
		const Schedule &	schedule,
		EclipseState &	eclState,
		FlowGenericVanguard::ParallelWellStruct &	parallelWells,
		const int	numJacobiBlocks
	)

protected

Distribute the simulation grid over multiple processes.

(For parallel simulation runs.)

◆ equilCartesianIndexMapper()

template<class ElementMapper , class GridView , class Scalar >

const CartesianIndexMapper & Opm::GenericCpGridVanguard< ElementMapper, GridView, Scalar >::equilCartesianIndexMapper ( ) const

Returns mapper from compressed to cartesian indices for the EQUIL grid.

◆ equilGrid()

template<class ElementMapper , class GridView , class Scalar >

const Dune::CpGrid & Opm::GenericCpGridVanguard< ElementMapper, GridView, Scalar >::equilGrid ( ) const

Returns a refefence to the grid which should be used by the EQUIL initialization code.

The EQUIL keyword is used to specify the initial condition of the reservoir in hydrostatic equilibrium. Since the code which does this is not accepting arbitrary DUNE grids (the code is part of the opm-core module), this is not necessarily the same as the grid which is used for the actual simulation.

◆ getTransmissibility()

template<class ElementMapper , class GridView , class Scalar >

virtual double Opm::GenericCpGridVanguard< ElementMapper, GridView, Scalar >::getTransmissibility	(	unsigned	I,
		unsigned	J
	)		const

protectedpure virtual

Implemented in Opm::CpGridVanguard< TypeTag >.

◆ grid() [1/2]

template<class ElementMapper , class GridView , class Scalar >

Dune::CpGrid & Opm::GenericCpGridVanguard< ElementMapper, GridView, Scalar >::grid ( )

inline

Return a reference to the simulation grid.

References Opm::GenericCpGridVanguard< ElementMapper, GridView, Scalar >::grid_.

◆ grid() [2/2]

template<class ElementMapper , class GridView , class Scalar >

const Dune::CpGrid & Opm::GenericCpGridVanguard< ElementMapper, GridView, Scalar >::grid ( ) const

inline

Return a reference to the simulation grid.

References Opm::GenericCpGridVanguard< ElementMapper, GridView, Scalar >::grid_.

◆ releaseEquilGrid()

template<class ElementMapper , class GridView , class Scalar >

void Opm::GenericCpGridVanguard< ElementMapper, GridView, Scalar >::releaseEquilGrid ( )

Indicates that the initial condition has been computed and the memory used by the EQUIL grid can be released.

Depending on the implementation, subsequent accesses to the EQUIL grid lead to crashes.

◆ setExternalLoadBalancer()

template<class ElementMapper , class GridView , class Scalar >

static void Opm::GenericCpGridVanguard< ElementMapper, GridView, Scalar >::setExternalLoadBalancer ( const std::function< std::vector< int >(const Dune::CpGrid &)> & loadBalancer )

inlinestatic

Sets a function that returns external load balancing information when passed the grid.

The information is a vector of integers indication the partition index for each cell id.

References Opm::externalLoadBalancer.

◆ zoltanParams()

template<class ElementMapper , class GridView , class Scalar >

virtual const std::string & Opm::GenericCpGridVanguard< ElementMapper, GridView, Scalar >::zoltanParams ( ) const

protectedpure virtual

Implemented in Opm::CpGridVanguard< TypeTag >.

Member Data Documentation

◆ cartesianIndexMapper_

template<class ElementMapper , class GridView , class Scalar >

std::unique_ptr<CartesianIndexMapper> Opm::GenericCpGridVanguard< ElementMapper, GridView, Scalar >::cartesianIndexMapper_

protected

◆ cell_part_

template<class ElementMapper , class GridView , class Scalar >

std::vector<int> Opm::GenericCpGridVanguard< ElementMapper, GridView, Scalar >::cell_part_ {}

protected

Referenced by Opm::GenericCpGridVanguard< ElementMapper, GridView, Scalar >::cellPartition().

◆ equilCartesianIndexMapper_

template<class ElementMapper , class GridView , class Scalar >

std::unique_ptr<CartesianIndexMapper> Opm::GenericCpGridVanguard< ElementMapper, GridView, Scalar >::equilCartesianIndexMapper_

protected

◆ equilGrid_

template<class ElementMapper , class GridView , class Scalar >

std::unique_ptr<Dune::CpGrid> Opm::GenericCpGridVanguard< ElementMapper, GridView, Scalar >::equilGrid_

protected

◆ grid_

template<class ElementMapper , class GridView , class Scalar >

std::unique_ptr<Dune::CpGrid> Opm::GenericCpGridVanguard< ElementMapper, GridView, Scalar >::grid_

protected

Referenced by Opm::GenericCpGridVanguard< ElementMapper, GridView, Scalar >::grid().

◆ mpiRank

template<class ElementMapper , class GridView , class Scalar >

int Opm::GenericCpGridVanguard< ElementMapper, GridView, Scalar >::mpiRank

protected

The documentation for this class was generated from the following file:

GenericCpGridVanguard.hpp
