A two-step version of an overlapping Schwarz preconditioner using one step ILU0 as. More...

#include <ParallelOverlappingILU0.hpp>

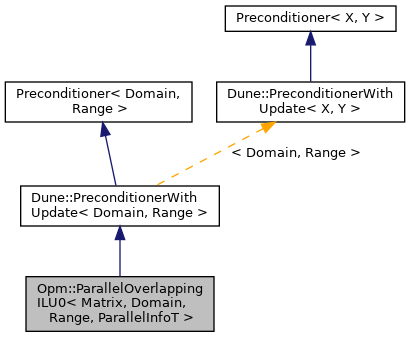

Inheritance diagram for Opm::ParallelOverlappingILU0< Matrix, Domain, Range, ParallelInfoT >:

Classes
struct	CRS

Public Types
using	matrix_type = typename std::remove_const< Matrix >::type
	The matrix type the preconditioner is for. More...

using	domain_type = Domain
	The domain type of the preconditioner. More...

using	range_type = Range
	The range type of the preconditioner. More...

using	field_type = typename Domain::field_type
	The field type of the preconditioner. More...

using	block_type = typename matrix_type::block_type

using	size_type = typename matrix_type::size_type

Public Member Functions
Dune::SolverCategory::Category	category () const override

	ParallelOverlappingILU0 (const Matrix &A, const int n, const field_type w, MILU_VARIANT milu, bool redblack=false, bool reorder_sphere=true)
	Constructor. More...

	ParallelOverlappingILU0 (const Matrix &A, const ParallelInfo &comm, const int n, const field_type w, MILU_VARIANT milu, bool redblack=false, bool reorder_sphere=true)
	Constructor gets all parameters to operate the prec. More...

	ParallelOverlappingILU0 (const Matrix &A, const field_type w, MILU_VARIANT milu, bool redblack=false, bool reorder_sphere=true)
	Constructor. More...

	ParallelOverlappingILU0 (const Matrix &A, const ParallelInfo &comm, const field_type w, MILU_VARIANT milu, bool redblack=false, bool reorder_sphere=true)
	Constructor. More...

	ParallelOverlappingILU0 (const Matrix &A, const ParallelInfo &comm, const field_type w, MILU_VARIANT milu, size_type interiorSize, bool redblack=false, bool reorder_sphere=true)
	Constructor. More...

void	pre (Domain &, Range &) override
	Prepare the preconditioner. More...

void	apply (Domain &v, const Range &d) override
	Apply the preconditoner. More...

template<class V >
void	copyOwnerToAll (V &v) const

void	post (Range &) override
	Clean up. More...

void	update () override

Protected Member Functions
Range &	reorderD (const Range &d)
	Reorder D if needed and return a reference to it. More...

Domain &	reorderV (Domain &v)
	Reorder V if needed and return a reference to it. More...

void	reorderBack (const Range &reorderedV, Range &v)

Protected Attributes
std::unique_ptr< Matrix >	ILU_
	The ILU0 decomposition of the matrix. More...

CRS	lower_

CRS	upper_

std::vector< block_type >	inv_

std::vector< std::size_t >	ordering_
	the reordering of the unknowns More...

Range	reorderedD_
	The reordered right hand side. More...

Domain	reorderedV_
	The reordered left hand side. More...

const ParallelInfo *	comm_

const field_type	w_
	The relaxation factor to use. More...

const bool	relaxation_

size_type	interiorSize_

const Matrix *	A_

int	iluIteration_

MILU_VARIANT	milu_

bool	redBlack_

bool	reorderSphere_

Detailed Description

template<class Matrix, class Domain, class Range, class ParallelInfoT>
class Opm::ParallelOverlappingILU0< Matrix, Domain, Range, ParallelInfoT >

A two-step version of an overlapping Schwarz preconditioner using one step ILU0 as.

This preconditioner differs from a ParallelRestrictedOverlappingSchwarz with Dune:SeqILU0 in the following way: During apply we make sure that the current residual is consistent (i.e. each process knows the same value for each index. Then we solve Ly = d for y and make y consistent again. Last we solve Ux = y and make sure that x is consistent. In contrast for ParallelRestrictedOverlappingSchwarz we solve (LU)x = d for x without forcing consistency between the two steps.

Template Parameters

Matrix	The type of the Matrix.
Domain	The type of the Vector representing the domain.
Range	The type of the Vector representing the range.
ParallelInfo	The type of the parallel information object used, e.g. Dune::OwnerOverlapCommunication

Member Typedef Documentation

◆ block_type

template<class Matrix , class Domain , class Range , class ParallelInfoT >

using Opm::ParallelOverlappingILU0< Matrix, Domain, Range, ParallelInfoT >::block_type = typename matrix_type::block_type

◆ domain_type

template<class Matrix , class Domain , class Range , class ParallelInfoT >

using Opm::ParallelOverlappingILU0< Matrix, Domain, Range, ParallelInfoT >::domain_type = Domain

The domain type of the preconditioner.

◆ field_type

template<class Matrix , class Domain , class Range , class ParallelInfoT >

using Opm::ParallelOverlappingILU0< Matrix, Domain, Range, ParallelInfoT >::field_type = typename Domain::field_type

The field type of the preconditioner.

◆ matrix_type

template<class Matrix , class Domain , class Range , class ParallelInfoT >

using Opm::ParallelOverlappingILU0< Matrix, Domain, Range, ParallelInfoT >::matrix_type = typename std::remove_const<Matrix>::type

The matrix type the preconditioner is for.

◆ range_type

template<class Matrix , class Domain , class Range , class ParallelInfoT >

using Opm::ParallelOverlappingILU0< Matrix, Domain, Range, ParallelInfoT >::range_type = Range

The range type of the preconditioner.

◆ size_type

template<class Matrix , class Domain , class Range , class ParallelInfoT >

using Opm::ParallelOverlappingILU0< Matrix, Domain, Range, ParallelInfoT >::size_type = typename matrix_type::size_type

Constructor & Destructor Documentation

◆ ParallelOverlappingILU0() [1/5]

template<class Matrix , class Domain , class Range , class ParallelInfoT >

Opm::ParallelOverlappingILU0< Matrix, Domain, Range, ParallelInfoT >::ParallelOverlappingILU0	(	const Matrix &	A,
		const int	n,
		const field_type	w,
		MILU_VARIANT	milu,
		bool	redblack = `false`,
		bool	reorder_sphere = `true`
	)

Constructor.

Constructor gets all parameters to operate the prec.

Parameters

A	The matrix to operate on.
n	ILU fill in level (for testing). This does not work in parallel.
w	The relaxation factor.
milu	The modified ILU variant to use. 0 means traditional ILU.

See also: MILU_VARIANT.

Parameters

redblack	Whether to use a red-black ordering.
reorder_sphere	If true, we start the reordering at a root node. The vertices on each layer aound it (same distance) are ordered consecutivly. If false, we preserver the order of the vertices with the same color.

References Opm::ParallelOverlappingILU0< Matrix, Domain, Range, ParallelInfoT >::interiorSize_, and Opm::ParallelOverlappingILU0< Matrix, Domain, Range, ParallelInfoT >::update().

◆ ParallelOverlappingILU0() [2/5]

template<class Matrix , class Domain , class Range , class ParallelInfoT >

Opm::ParallelOverlappingILU0< Matrix, Domain, Range, ParallelInfoT >::ParallelOverlappingILU0	(	const Matrix &	A,
		const ParallelInfo &	comm,
		const int	n,
		const field_type	w,
		MILU_VARIANT	milu,
		bool	redblack = `false`,
		bool	reorder_sphere = `true`
	)

Constructor gets all parameters to operate the prec.

Parameters

A	The matrix to operate on.
comm	communication object, e.g. Dune::OwnerOverlapCopyCommunication
n	ILU fill in level (for testing). This does not work in parallel.
w	The relaxation factor.
milu	The modified ILU variant to use. 0 means traditional ILU.

See also: MILU_VARIANT.

Parameters

redblack	Whether to use a red-black ordering.
reorder_sphere	If true, we start the reordering at a root node. The vertices on each layer aound it (same distance) are ordered consecutivly. If false, we preserver the order of the vertices with the same color.

References Opm::ParallelOverlappingILU0< Matrix, Domain, Range, ParallelInfoT >::interiorSize_, and Opm::ParallelOverlappingILU0< Matrix, Domain, Range, ParallelInfoT >::update().

◆ ParallelOverlappingILU0() [3/5]

template<class Matrix , class Domain , class Range , class ParallelInfoT >

Opm::ParallelOverlappingILU0< Matrix, Domain, Range, ParallelInfoT >::ParallelOverlappingILU0	(	const Matrix &	A,
		const field_type	w,
		MILU_VARIANT	milu,
		bool	redblack = `false`,
		bool	reorder_sphere = `true`
	)

Constructor.

Constructor gets all parameters to operate the prec.

Parameters

A	The matrix to operate on.
w	The relaxation factor.
milu	The modified ILU variant to use. 0 means traditional ILU.

See also: MILU_VARIANT.

Parameters

redblack	Whether to use a red-black ordering.
reorder_sphere	If true, we start the reordering at a root node. The vertices on each layer aound it (same distance) are ordered consecutivly. If false, we preserver the order of the vertices with the same color.

◆ ParallelOverlappingILU0() [4/5]

template<class Matrix , class Domain , class Range , class ParallelInfoT >

Opm::ParallelOverlappingILU0< Matrix, Domain, Range, ParallelInfoT >::ParallelOverlappingILU0	(	const Matrix &	A,
		const ParallelInfo &	comm,
		const field_type	w,
		MILU_VARIANT	milu,
		bool	redblack = `false`,
		bool	reorder_sphere = `true`
	)

Constructor.

Constructor gets all parameters to operate the prec.

Parameters

A	The matrix to operate on.
comm	communication object, e.g. Dune::OwnerOverlapCopyCommunication
w	The relaxation factor.
milu	The modified ILU variant to use. 0 means traditional ILU.

See also: MILU_VARIANT.

Parameters

redblack	Whether to use a red-black ordering.
reorder_sphere	If true, we start the reordering at a root node. The vertices on each layer aound it (same distance) are ordered consecutivly. If false, we preserver the order of the vertices with the same color.

References Opm::ParallelOverlappingILU0< Matrix, Domain, Range, ParallelInfoT >::interiorSize_, and Opm::ParallelOverlappingILU0< Matrix, Domain, Range, ParallelInfoT >::update().

◆ ParallelOverlappingILU0() [5/5]

template<class Matrix , class Domain , class Range , class ParallelInfoT >

Opm::ParallelOverlappingILU0< Matrix, Domain, Range, ParallelInfoT >::ParallelOverlappingILU0	(	const Matrix &	A,
		const ParallelInfo &	comm,
		const field_type	w,
		MILU_VARIANT	milu,
		size_type	interiorSize,
		bool	redblack = `false`,
		bool	reorder_sphere = `true`
	)

Constructor.

Constructor gets all parameters to operate the prec.

Parameters

A	The matrix to operate on.
n	ILU fill in level (for testing). This does not work in parallel.
w	The relaxation factor.
milu	The modified ILU variant to use. 0 means traditional ILU.

See also: MILU_VARIANT.

Parameters

interiorSize	The number of interior/owner rows in the matrix.
redblack	Whether to use a red-black ordering.
reorder_sphere	If true, we start the reordering at a root node. The vertices on each layer aound it (same distance) are ordered consecutivly. If false, we preserver the order of the vertices with the same color.

References Opm::ParallelOverlappingILU0< Matrix, Domain, Range, ParallelInfoT >::update().

Member Function Documentation

◆ apply()

template<class Matrix , class Domain , class Range , class ParallelInfoT >

void Opm::ParallelOverlappingILU0< Matrix, Domain, Range, ParallelInfoT >::apply	(	Domain &	v,
		const Range &	d
	)

override

Apply the preconditoner.

◆ category()

template<class Matrix , class Domain , class Range , class ParallelInfoT >

Dune::SolverCategory::Category Opm::ParallelOverlappingILU0< Matrix, Domain, Range, ParallelInfoT >::category

override

◆ copyOwnerToAll()

template<class Matrix , class Domain , class Range , class ParallelInfoT >

template<class V >

void Opm::ParallelOverlappingILU0< Matrix, Domain, Range, ParallelInfoT >::copyOwnerToAll ( V & v ) const

◆ post()

template<class Matrix , class Domain , class Range , class ParallelInfoT >

void Opm::ParallelOverlappingILU0< Matrix, Domain, Range, ParallelInfoT >::post ( Range & )

inlineoverride

Clean up.

◆ pre()

template<class Matrix , class Domain , class Range , class ParallelInfoT >

void Opm::ParallelOverlappingILU0< Matrix, Domain, Range, ParallelInfoT >::pre	(	Domain &	,
		Range &
	)

inlineoverride

Prepare the preconditioner.

◆ reorderBack()

template<class Matrix , class Domain , class Range , class ParallelInfoT >

void Opm::ParallelOverlappingILU0< Matrix, Domain, Range, ParallelInfoT >::reorderBack	(	const Range &	reorderedV,
		Range &	v
	)

protected

◆ reorderD()

template<class Matrix , class Domain , class Range , class ParallelInfoT >

Range & Opm::ParallelOverlappingILU0< Matrix, Domain, Range, ParallelInfoT >::reorderD ( const Range & d )

protected

Reorder D if needed and return a reference to it.

◆ reorderV()

template<class Matrix , class Domain , class Range , class ParallelInfoT >

Domain & Opm::ParallelOverlappingILU0< Matrix, Domain, Range, ParallelInfoT >::reorderV ( Domain & v )

protected

Reorder V if needed and return a reference to it.

◆ update()

template<class Matrix , class Domain , class Range , class ParallelInfoT >

void Opm::ParallelOverlappingILU0< Matrix, Domain, Range, ParallelInfoT >::update

overridevirtual

Implements Dune::PreconditionerWithUpdate< Domain, Range >.

References Opm::colorVerticesWelshPowell(), Opm::detail::convertToCRS(), Opm::detail::ghost_last_bilu0_decomposition(), Opm::detail::milu0_decomposition(), Opm::MILU_1, Opm::MILU_2, Opm::MILU_3, Opm::MILU_4, Opm::detail::milun_decomposition(), Opm::reorderVerticesPreserving(), and Opm::reorderVerticesSpheres().

Referenced by Opm::ParallelOverlappingILU0< Matrix, Domain, Range, ParallelInfoT >::ParallelOverlappingILU0().

Member Data Documentation

◆ A_

template<class Matrix , class Domain , class Range , class ParallelInfoT >

const Matrix* Opm::ParallelOverlappingILU0< Matrix, Domain, Range, ParallelInfoT >::A_

protected

◆ comm_

template<class Matrix , class Domain , class Range , class ParallelInfoT >

const ParallelInfo* Opm::ParallelOverlappingILU0< Matrix, Domain, Range, ParallelInfoT >::comm_

protected

◆ ILU_

template<class Matrix , class Domain , class Range , class ParallelInfoT >

std::unique_ptr<Matrix> Opm::ParallelOverlappingILU0< Matrix, Domain, Range, ParallelInfoT >::ILU_

protected

The ILU0 decomposition of the matrix.

◆ iluIteration_

template<class Matrix , class Domain , class Range , class ParallelInfoT >

int Opm::ParallelOverlappingILU0< Matrix, Domain, Range, ParallelInfoT >::iluIteration_

protected

◆ interiorSize_

template<class Matrix , class Domain , class Range , class ParallelInfoT >

size_type Opm::ParallelOverlappingILU0< Matrix, Domain, Range, ParallelInfoT >::interiorSize_

protected

Referenced by Opm::ParallelOverlappingILU0< Matrix, Domain, Range, ParallelInfoT >::ParallelOverlappingILU0().

◆ inv_

template<class Matrix , class Domain , class Range , class ParallelInfoT >

std::vector< block_type > Opm::ParallelOverlappingILU0< Matrix, Domain, Range, ParallelInfoT >::inv_

protected

◆ lower_

template<class Matrix , class Domain , class Range , class ParallelInfoT >

CRS Opm::ParallelOverlappingILU0< Matrix, Domain, Range, ParallelInfoT >::lower_

protected

◆ milu_

template<class Matrix , class Domain , class Range , class ParallelInfoT >

MILU_VARIANT Opm::ParallelOverlappingILU0< Matrix, Domain, Range, ParallelInfoT >::milu_

protected

◆ ordering_

template<class Matrix , class Domain , class Range , class ParallelInfoT >

std::vector< std::size_t > Opm::ParallelOverlappingILU0< Matrix, Domain, Range, ParallelInfoT >::ordering_

protected

the reordering of the unknowns

◆ redBlack_

template<class Matrix , class Domain , class Range , class ParallelInfoT >

bool Opm::ParallelOverlappingILU0< Matrix, Domain, Range, ParallelInfoT >::redBlack_

protected

◆ relaxation_

template<class Matrix , class Domain , class Range , class ParallelInfoT >

const bool Opm::ParallelOverlappingILU0< Matrix, Domain, Range, ParallelInfoT >::relaxation_

protected

◆ reorderedD_

template<class Matrix , class Domain , class Range , class ParallelInfoT >

Range Opm::ParallelOverlappingILU0< Matrix, Domain, Range, ParallelInfoT >::reorderedD_

protected

The reordered right hand side.

◆ reorderedV_

template<class Matrix , class Domain , class Range , class ParallelInfoT >

Domain Opm::ParallelOverlappingILU0< Matrix, Domain, Range, ParallelInfoT >::reorderedV_

protected

The reordered left hand side.

◆ reorderSphere_

template<class Matrix , class Domain , class Range , class ParallelInfoT >

bool Opm::ParallelOverlappingILU0< Matrix, Domain, Range, ParallelInfoT >::reorderSphere_

protected

◆ upper_

template<class Matrix , class Domain , class Range , class ParallelInfoT >

CRS Opm::ParallelOverlappingILU0< Matrix, Domain, Range, ParallelInfoT >::upper_

protected

◆ w_

template<class Matrix , class Domain , class Range , class ParallelInfoT >

const field_type Opm::ParallelOverlappingILU0< Matrix, Domain, Range, ParallelInfoT >::w_

protected

The relaxation factor to use.

The documentation for this class was generated from the following files:

Classes

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ block_type

◆ domain_type

◆ field_type

◆ matrix_type

◆ range_type

◆ size_type

Constructor & Destructor Documentation

◆ ParallelOverlappingILU0() [1/5]

◆ ParallelOverlappingILU0() [2/5]

◆ ParallelOverlappingILU0() [3/5]

◆ ParallelOverlappingILU0() [4/5]

◆ ParallelOverlappingILU0() [5/5]

Member Function Documentation

◆ apply()

◆ category()

◆ copyOwnerToAll()

◆ post()

◆ pre()

◆ reorderBack()

◆ reorderD()

◆ reorderV()

◆ update()

Member Data Documentation

◆ A_

◆ comm_

◆ ILU_

◆ iluIteration_

◆ interiorSize_

◆ inv_

◆ lower_

◆ milu_

◆ ordering_

◆ redBlack_

◆ relaxation_

◆ reorderedD_

◆ reorderedV_

◆ reorderSphere_

◆ upper_

◆ w_
