#include <StandardWellConnections.hpp>

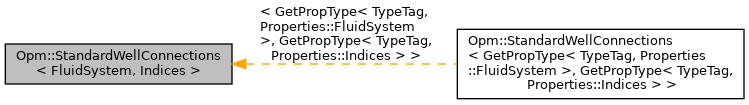

Inheritance diagram for Opm::StandardWellConnections< FluidSystem, Indices >:

Classes
struct	Properties

Public Types
using	Scalar = typename FluidSystem::Scalar

using	Eval = typename WellInterfaceIndices< FluidSystem, Indices >::Eval

using	EvalWell = typename StandardWellPrimaryVariables< FluidSystem, Indices >::EvalWell

Public Member Functions
	StandardWellConnections (const WellInterfaceIndices< FluidSystem, Indices > &well)

void	computePropertiesForPressures (const WellState< Scalar > &well_state, const std::function< Scalar(int, int)> &getTemperature, const std::function< Scalar(int)> &getSaltConcentration, const std::function< int(int)> &pvtRegionIdx, const std::function< Scalar(int)> &solventInverseFormationVolumeFactor, const std::function< Scalar(int)> &solventRefDensity, Properties &props) const

void	computeProperties (const WellState< Scalar > &well_state, const std::function< Scalar(int, int)> &invB, const std::function< Scalar(int, int)> &mobility, const std::function< Scalar(int)> &solventInverseFormationVolumeFactor, const std::function< Scalar(int)> &solventMobility, const Properties &props, DeferredLogger &deferred_logger)
	Compute connection properties (densities, pressure drop, ...) More...

Scalar	rho () const
	Returns density for first perforation. More...

Scalar	rho (const typename std::vector< Scalar >::size_type i) const
	Returns density for specific perforation/connection. More...

Scalar	pressure_diff (const unsigned perf) const
	Returns pressure drop for a given perforation. More...

Eval	connectionRateBrine (double &rate, const double vap_wat_rate, const std::vector< EvalWell > &cq_s, const std::variant< Scalar, EvalWell > &saltConcentration) const

Eval	connectionRateFoam (const std::vector< EvalWell > &cq_s, const std::variant< Scalar, EvalWell > &foamConcentration, const Phase transportPhase, DeferredLogger &deferred_logger) const

std::tuple< Eval, EvalWell >	connectionRatePolymer (double &rate, const std::vector< EvalWell > &cq_s, const std::variant< Scalar, EvalWell > &polymerConcentration) const

std::tuple< Eval, Eval, Eval >	connectionRatesMICP (const std::vector< EvalWell > &cq_s, const std::variant< Scalar, EvalWell > &microbialConcentration, const std::variant< Scalar, EvalWell > &oxygenConcentration, const std::variant< Scalar, EvalWell > &ureaConcentration) const

std::tuple< Eval, EvalWell >	connectionRatezFraction (double &rate, const double dis_gas_rate, const std::vector< EvalWell > &cq_s, const std::variant< Scalar, std::array< EvalWell, 2 > > &solventConcentration) const

Member Typedef Documentation

◆ Eval

template<class FluidSystem , class Indices >

using Opm::StandardWellConnections< FluidSystem, Indices >::Eval = typename WellInterfaceIndices<FluidSystem,Indices>::Eval

◆ EvalWell

template<class FluidSystem , class Indices >

using Opm::StandardWellConnections< FluidSystem, Indices >::EvalWell = typename StandardWellPrimaryVariables<FluidSystem,Indices>::EvalWell

◆ Scalar

template<class FluidSystem , class Indices >

using Opm::StandardWellConnections< FluidSystem, Indices >::Scalar = typename FluidSystem::Scalar

Constructor & Destructor Documentation

◆ StandardWellConnections()

template<class FluidSystem , class Indices >

Opm::StandardWellConnections< FluidSystem, Indices >::StandardWellConnections ( const WellInterfaceIndices< FluidSystem, Indices > & well )

Member Function Documentation

◆ computeProperties()

template<class FluidSystem , class Indices >

void Opm::StandardWellConnections< FluidSystem, Indices >::computeProperties	(	const WellState< Scalar > &	well_state,
		const std::function< Scalar(int, int)> &	invB,
		const std::function< Scalar(int, int)> &	mobility,
		const std::function< Scalar(int)> &	solventInverseFormationVolumeFactor,
		const std::function< Scalar(int)> &	solventMobility,
		const Properties &	props,
		DeferredLogger &	deferred_logger
	)

Compute connection properties (densities, pressure drop, ...)

◆ computePropertiesForPressures()

template<class FluidSystem , class Indices >

void Opm::StandardWellConnections< FluidSystem, Indices >::computePropertiesForPressures	(	const WellState< Scalar > &	well_state,
		const std::function< Scalar(int, int)> &	getTemperature,
		const std::function< Scalar(int)> &	getSaltConcentration,
		const std::function< int(int)> &	pvtRegionIdx,
		const std::function< Scalar(int)> &	solventInverseFormationVolumeFactor,
		const std::function< Scalar(int)> &	solventRefDensity,
		Properties &	props
	)		const

◆ connectionRateBrine()

template<class FluidSystem , class Indices >

Eval Opm::StandardWellConnections< FluidSystem, Indices >::connectionRateBrine	(	double &	rate,
		const double	vap_wat_rate,
		const std::vector< EvalWell > &	cq_s,
		const std::variant< Scalar, EvalWell > &	saltConcentration
	)		const

◆ connectionRateFoam()

template<class FluidSystem , class Indices >

Eval Opm::StandardWellConnections< FluidSystem, Indices >::connectionRateFoam	(	const std::vector< EvalWell > &	cq_s,
		const std::variant< Scalar, EvalWell > &	foamConcentration,
		const Phase	transportPhase,
		DeferredLogger &	deferred_logger
	)		const

◆ connectionRatePolymer()

template<class FluidSystem , class Indices >

std::tuple< Eval, EvalWell > Opm::StandardWellConnections< FluidSystem, Indices >::connectionRatePolymer	(	double &	rate,
		const std::vector< EvalWell > &	cq_s,
		const std::variant< Scalar, EvalWell > &	polymerConcentration
	)		const

◆ connectionRatesMICP()

template<class FluidSystem , class Indices >

std::tuple< Eval, Eval, Eval > Opm::StandardWellConnections< FluidSystem, Indices >::connectionRatesMICP	(	const std::vector< EvalWell > &	cq_s,
		const std::variant< Scalar, EvalWell > &	microbialConcentration,
		const std::variant< Scalar, EvalWell > &	oxygenConcentration,
		const std::variant< Scalar, EvalWell > &	ureaConcentration
	)		const

◆ connectionRatezFraction()

template<class FluidSystem , class Indices >

std::tuple< Eval, EvalWell > Opm::StandardWellConnections< FluidSystem, Indices >::connectionRatezFraction	(	double &	rate,
		const double	dis_gas_rate,
		const std::vector< EvalWell > &	cq_s,
		const std::variant< Scalar, std::array< EvalWell, 2 > > &	solventConcentration
	)		const

◆ pressure_diff()

template<class FluidSystem , class Indices >

Scalar Opm::StandardWellConnections< FluidSystem, Indices >::pressure_diff ( const unsigned perf ) const

inline

Returns pressure drop for a given perforation.

◆ rho() [1/2]

template<class FluidSystem , class Indices >

Scalar Opm::StandardWellConnections< FluidSystem, Indices >::rho ( ) const

inline

Returns density for first perforation.

References Opm::StandardWellConnections< FluidSystem, Indices >::rho().

Referenced by Opm::StandardWellConnections< FluidSystem, Indices >::rho().

◆ rho() [2/2]

template<class FluidSystem , class Indices >

Scalar Opm::StandardWellConnections< FluidSystem, Indices >::rho ( const typename std::vector< Scalar >::size_type i ) const

inline

Returns density for specific perforation/connection.

Parameters

[in] i Connection index

Returns: Mixture density at connection i.

The documentation for this class was generated from the following file:

StandardWellConnections.hpp
