Abstract interface for ISTL solvers. More...

#include <AbstractISTLSolver.hpp>

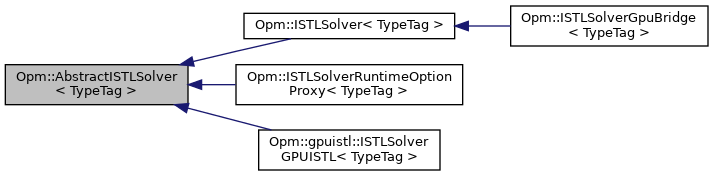

Inheritance diagram for Opm::AbstractISTLSolver< TypeTag >:

Public Types
using	CommunicationType = Dune::OwnerOverlapCopyCommunication< int, int >

using	SparseMatrixAdapter = GetPropType< TypeTag, Properties::SparseMatrixAdapter >

using	Vector = GetPropType< TypeTag, Properties::GlobalEqVector >

using	Matrix = typename SparseMatrixAdapter::IstlMatrix

Public Member Functions
virtual	~AbstractISTLSolver ()=default

virtual void	eraseMatrix ()=0
	Signals that the memory for the matrix internally in the solver could be erased. More...

virtual void	setActiveSolver (int num)=0
	Set the active solver by its index. More...

virtual int	numAvailableSolvers () const =0
	Get the number of available solvers. More...

virtual void	prepare (const Matrix &M, Vector &b)=0
	Prepare the solver with the given matrix and right-hand side vector. More...

virtual void	prepare (const SparseMatrixAdapter &M, Vector &b)=0
	Prepare the solver with the given sparse matrix and right-hand side vector. More...

virtual void	setResidual (Vector &b)=0
	Set the residual vector. More...

virtual void	getResidual (Vector &b) const =0
	Get the residual vector. More...

virtual void	setMatrix (const SparseMatrixAdapter &M)=0
	Set the matrix for the solver. More...

virtual bool	solve (Vector &x)=0
	Solve the system of equations Ax = b. More...

virtual int	iterations () const =0
	Get the number of iterations used in the last solve. More...

virtual const CommunicationType *	comm () const =0
	Get the communication object used by the solver. More...

virtual int	getSolveCount () const =0
	Get the count of how many times the solver has been called. More...

Static Protected Member Functions
static bool	checkConvergence (const Dune::InverseOperatorResult &result, const FlowLinearSolverParameters &parameters)
	Check the convergence of the linear solver. More...

Detailed Description

template<class TypeTag>
class Opm::AbstractISTLSolver< TypeTag >

Abstract interface for ISTL solvers.

This class defines the interface for ISTL solvers used in OPM. It provides methods for preparing the solver, setting and getting residuals, solving the system, and managing communication.

Note: This class is used in the ISTLSolverRuntimeOptionProxy which we where we can set the solver type at runtime, and this proxy holds a pointer to an instance of this class.

Member Typedef Documentation

◆ CommunicationType

template<class TypeTag >

using Opm::AbstractISTLSolver< TypeTag >::CommunicationType = Dune::OwnerOverlapCopyCommunication<int, int>

◆ Matrix

template<class TypeTag >

using Opm::AbstractISTLSolver< TypeTag >::Matrix = typename SparseMatrixAdapter::IstlMatrix

◆ SparseMatrixAdapter

template<class TypeTag >

using Opm::AbstractISTLSolver< TypeTag >::SparseMatrixAdapter = GetPropType<TypeTag, Properties::SparseMatrixAdapter>

◆ Vector

template<class TypeTag >

using Opm::AbstractISTLSolver< TypeTag >::Vector = GetPropType<TypeTag, Properties::GlobalEqVector>

Constructor & Destructor Documentation

◆ ~AbstractISTLSolver()

template<class TypeTag >

virtual Opm::AbstractISTLSolver< TypeTag >::~AbstractISTLSolver ( )

virtualdefault

Member Function Documentation

◆ checkConvergence()

template<class TypeTag >

static bool Opm::AbstractISTLSolver< TypeTag >::checkConvergence	(	const Dune::InverseOperatorResult &	result,
		const FlowLinearSolverParameters &	parameters
	)

inlinestaticprotected

Check the convergence of the linear solver.

This method checks if the linear solver has converged based on the result and parameters.

Parameters

result	The result of the linear solver.
parameters	The parameters used for the linear solver.

Returns: true if the solver has converged, false otherwise.

References Opm::FlowLinearSolverParameters::ignoreConvergenceFailure_, and Opm::FlowLinearSolverParameters::relaxed_linear_solver_reduction_.

Referenced by Opm::ISTLSolver< TypeTag >::checkConvergence().

◆ comm()

template<class TypeTag >

virtual const CommunicationType * Opm::AbstractISTLSolver< TypeTag >::comm ( ) const

pure virtual

Get the communication object used by the solver.

This method returns a pointer to the communication object used by the solver.

Returns: A pointer to the communication object.

Implemented in Opm::gpuistl::ISTLSolverGPUISTL< TypeTag >, Opm::ISTLSolver< TypeTag >, and Opm::ISTLSolverRuntimeOptionProxy< TypeTag >.

◆ eraseMatrix()

template<class TypeTag >

virtual void Opm::AbstractISTLSolver< TypeTag >::eraseMatrix ( )

pure virtual

Signals that the memory for the matrix internally in the solver could be erased.

Note: This call could be ignored by the solver, but it is a hint that the solver does not need the matrix anymore.

Implemented in Opm::gpuistl::ISTLSolverGPUISTL< TypeTag >, Opm::ISTLSolver< TypeTag >, and Opm::ISTLSolverRuntimeOptionProxy< TypeTag >.

◆ getResidual()

template<class TypeTag >

virtual void Opm::AbstractISTLSolver< TypeTag >::getResidual ( Vector & b ) const

pure virtual

Get the residual vector.

This method retrieves the current residual vector from the solver.

Parameters

b	The vector to store the residual.

Implemented in Opm::ISTLSolverGpuBridge< TypeTag >, Opm::gpuistl::ISTLSolverGPUISTL< TypeTag >, Opm::ISTLSolver< TypeTag >, and Opm::ISTLSolverRuntimeOptionProxy< TypeTag >.

◆ getSolveCount()

template<class TypeTag >

virtual int Opm::AbstractISTLSolver< TypeTag >::getSolveCount ( ) const

pure virtual

Get the count of how many times the solver has been called.

This method returns the number of times the solve() method has been called.

Returns: The count of solve calls.

Implemented in Opm::gpuistl::ISTLSolverGPUISTL< TypeTag >, Opm::ISTLSolver< TypeTag >, and Opm::ISTLSolverRuntimeOptionProxy< TypeTag >.

◆ iterations()

template<class TypeTag >

virtual int Opm::AbstractISTLSolver< TypeTag >::iterations ( ) const

pure virtual

Get the number of iterations used in the last solve.

This method returns the number of iterations that the solver performed during the last call to solve().

Returns: The number of iterations.

Note: This value is only valid after a call to solve().

Implemented in Opm::gpuistl::ISTLSolverGPUISTL< TypeTag >, Opm::ISTLSolver< TypeTag >, and Opm::ISTLSolverRuntimeOptionProxy< TypeTag >.

◆ numAvailableSolvers()

template<class TypeTag >

virtual int Opm::AbstractISTLSolver< TypeTag >::numAvailableSolvers ( ) const

pure virtual

Get the number of available solvers.

Returns: The number of solvers that can be used.

Implemented in Opm::gpuistl::ISTLSolverGPUISTL< TypeTag >, Opm::ISTLSolver< TypeTag >, and Opm::ISTLSolverRuntimeOptionProxy< TypeTag >.

◆ prepare() [1/2]

template<class TypeTag >

virtual void Opm::AbstractISTLSolver< TypeTag >::prepare	(	const Matrix &	M,
		Vector &	b
	)

pure virtual

Prepare the solver with the given matrix and right-hand side vector.

This method initializes the solver with the provided matrix and vector, preparing it for solving the system of equations.

Parameters

M	The matrix representing the system of equations.
b	The right-hand side vector.

Implemented in Opm::ISTLSolverGpuBridge< TypeTag >, Opm::gpuistl::ISTLSolverGPUISTL< TypeTag >, Opm::ISTLSolver< TypeTag >, and Opm::ISTLSolverRuntimeOptionProxy< TypeTag >.

◆ prepare() [2/2]

template<class TypeTag >

virtual void Opm::AbstractISTLSolver< TypeTag >::prepare	(	const SparseMatrixAdapter &	M,
		Vector &	b
	)

pure virtual

Prepare the solver with the given sparse matrix and right-hand side vector.

This method initializes the solver with the provided sparse matrix and vector, preparing it for solving the system of equations.

Parameters

M	The sparse matrix representing the system of equations.
b	The right-hand side vector.

Note: This method should be called in addition to setResidual() and setMatrix() before calling solve().

Implemented in Opm::gpuistl::ISTLSolverGPUISTL< TypeTag >, Opm::ISTLSolver< TypeTag >, and Opm::ISTLSolverRuntimeOptionProxy< TypeTag >.

◆ setActiveSolver()

template<class TypeTag >

virtual void Opm::AbstractISTLSolver< TypeTag >::setActiveSolver ( int num )

pure virtual

Set the active solver by its index.

Parameters

num	The index of the solver to set as active.

Note: The index corresponds to the order in which solvers are registered.

Implemented in Opm::ISTLSolver< TypeTag >, Opm::gpuistl::ISTLSolverGPUISTL< TypeTag >, and Opm::ISTLSolverRuntimeOptionProxy< TypeTag >.

◆ setMatrix()

template<class TypeTag >

virtual void Opm::AbstractISTLSolver< TypeTag >::setMatrix ( const SparseMatrixAdapter & M )

pure virtual

Set the matrix for the solver.

This method sets the matrix that the solver will use to solve the system of equations.

Parameters

M	The sparse matrix adapter containing the matrix data.

Note: This method should be called in addition to prepare() and setResidual() before calling solve().

Implemented in Opm::ISTLSolverGpuBridge< TypeTag >, Opm::gpuistl::ISTLSolverGPUISTL< TypeTag >, Opm::ISTLSolver< TypeTag >, and Opm::ISTLSolverRuntimeOptionProxy< TypeTag >.

◆ setResidual()

template<class TypeTag >

virtual void Opm::AbstractISTLSolver< TypeTag >::setResidual ( Vector & b )

pure virtual

Set the residual vector.

This method sets the residual vector for the solver.

Parameters

b	The residual vector to set.

Note: This method should be called in addition to prepare() and setMatrix() before calling solve().

Implemented in Opm::ISTLSolverGpuBridge< TypeTag >, Opm::gpuistl::ISTLSolverGPUISTL< TypeTag >, Opm::ISTLSolver< TypeTag >, and Opm::ISTLSolverRuntimeOptionProxy< TypeTag >.

◆ solve()

template<class TypeTag >

virtual bool Opm::AbstractISTLSolver< TypeTag >::solve ( Vector & x )

pure virtual

Solve the system of equations Ax = b.

This method solves the linear system represented by the matrix A and the right-hand side vector b, storing the solution in vector x.

Parameters

x	The vector to store the solution.

Returns: true if the solver converged, false otherwise.

Before this function is called, the following function calls should have been made:

prepare(const Matrix& M, Vector& b) or prepare(const SparseMatrixAdapter& M, Vector& b)
setResidual(Vector& b) or setResidual(const Vector& b)
setMatrix(const SparseMatrixAdapter& M)

Implemented in Opm::ISTLSolverGpuBridge< TypeTag >, Opm::gpuistl::ISTLSolverGPUISTL< TypeTag >, Opm::ISTLSolver< TypeTag >, and Opm::ISTLSolverRuntimeOptionProxy< TypeTag >.

The documentation for this class was generated from the following file:

AbstractISTLSolver.hpp
