Public Member Functions | Static Public Member Functions | Protected Member Functions | Protected Attributes | List of all members
Opm::Accelerator::Preconditioner< Scalar, block_size, ApplyScalar > Class Template Referenceabstract

#include <Preconditioner.hpp>

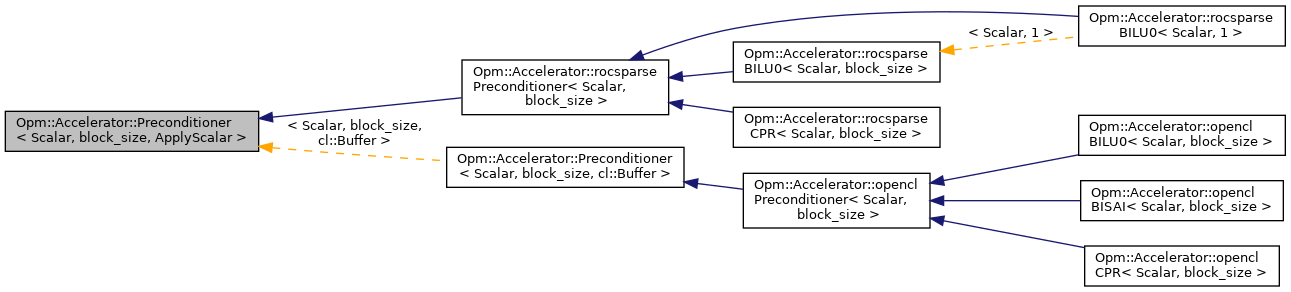

Inheritance diagram for Opm::Accelerator::Preconditioner< Scalar, block_size, ApplyScalar >:
Inheritance graph

Public Member Functions

virtual ~Preconditioner ()=default

virtual void apply (const ApplyScalar &y, ApplyScalar &x, WellContributions< Scalar > &wellContribs)=0

virtual bool analyze_matrix (BlockedMatrix< Scalar > *mat)=0

virtual bool analyze_matrix (BlockedMatrix< Scalar > *mat, BlockedMatrix< Scalar > *jacMat)=0

virtual bool create_preconditioner (BlockedMatrix< Scalar > *mat)=0

virtual bool create_preconditioner (BlockedMatrix< Scalar > *mat, BlockedMatrix< Scalar > *jacMat)=0


Static Public Member Functions

static std::unique_ptr< Preconditioner > create (PreconditionerType type, bool opencl_ilu_parallel, int verbosity)


Protected Member Functions

 Preconditioner (int verbosity_)


Protected Attributes

int N = 0

int Nb = 0

int nnz = 0

int nnzb = 0

int verbosity = 0


Constructor & Destructor Documentation

◆ Preconditioner()

template<class Scalar , unsigned int block_size, class ApplyScalar = Scalar>
Opm::Accelerator::Preconditioner< Scalar, block_size, ApplyScalar >::Preconditioner ( int  verbosity_)
inlineprotected

◆ ~Preconditioner()

template<class Scalar , unsigned int block_size, class ApplyScalar = Scalar>
virtual Opm::Accelerator::Preconditioner< Scalar, block_size, ApplyScalar >::~Preconditioner ( )
virtualdefault

Member Function Documentation

◆ analyze_matrix() [1/2]

template<class Scalar , unsigned int block_size, class ApplyScalar = Scalar>
virtual bool Opm::Accelerator::Preconditioner< Scalar, block_size, ApplyScalar >::analyze_matrix ( BlockedMatrix< Scalar > *  mat)
pure virtual

Implemented in Opm::Accelerator::openclBILU0< Scalar, block_size >, Opm::Accelerator::openclBISAI< Scalar, block_size >, Opm::Accelerator::openclCPR< Scalar, block_size >, Opm::Accelerator::rocsparseBILU0< Scalar, block_size >, Opm::Accelerator::rocsparseBILU0< Scalar, 1 >, and Opm::Accelerator::rocsparseCPR< Scalar, block_size >.

◆ analyze_matrix() [2/2]

template<class Scalar , unsigned int block_size, class ApplyScalar = Scalar>
virtual bool Opm::Accelerator::Preconditioner< Scalar, block_size, ApplyScalar >::analyze_matrix ( BlockedMatrix< Scalar > *  mat,
BlockedMatrix< Scalar > *  jacMat
)
pure virtual

Implemented in Opm::Accelerator::openclBILU0< Scalar, block_size >, Opm::Accelerator::openclBISAI< Scalar, block_size >, Opm::Accelerator::openclCPR< Scalar, block_size >, Opm::Accelerator::rocsparseBILU0< Scalar, block_size >, Opm::Accelerator::rocsparseBILU0< Scalar, 1 >, and Opm::Accelerator::rocsparseCPR< Scalar, block_size >.

◆ apply()

template<class Scalar , unsigned int block_size, class ApplyScalar = Scalar>
virtual void Opm::Accelerator::Preconditioner< Scalar, block_size, ApplyScalar >::apply ( const ApplyScalar &  y,
ApplyScalar &  x,
WellContributions< Scalar > &  wellContribs
)
pure virtual

Implemented in Opm::Accelerator::openclBILU0< Scalar, block_size >, Opm::Accelerator::openclBISAI< Scalar, block_size >, and Opm::Accelerator::openclCPR< Scalar, block_size >.

◆ create()

template<class Scalar , unsigned int block_size, class ApplyScalar = Scalar>
static std::unique_ptr< Preconditioner > Opm::Accelerator::Preconditioner< Scalar, block_size, ApplyScalar >::create ( PreconditionerType  type,
bool  opencl_ilu_parallel,
int  verbosity
)
static

◆ create_preconditioner() [1/2]

template<class Scalar , unsigned int block_size, class ApplyScalar = Scalar>
virtual bool Opm::Accelerator::Preconditioner< Scalar, block_size, ApplyScalar >::create_preconditioner ( BlockedMatrix< Scalar > *  mat)
pure virtual

Implemented in Opm::Accelerator::openclBILU0< Scalar, block_size >, Opm::Accelerator::openclBISAI< Scalar, block_size >, Opm::Accelerator::openclCPR< Scalar, block_size >, Opm::Accelerator::rocsparseBILU0< Scalar, block_size >, Opm::Accelerator::rocsparseBILU0< Scalar, 1 >, and Opm::Accelerator::rocsparseCPR< Scalar, block_size >.

◆ create_preconditioner() [2/2]

template<class Scalar , unsigned int block_size, class ApplyScalar = Scalar>
virtual bool Opm::Accelerator::Preconditioner< Scalar, block_size, ApplyScalar >::create_preconditioner ( BlockedMatrix< Scalar > *  mat,
BlockedMatrix< Scalar > *  jacMat
)
pure virtual

Implemented in Opm::Accelerator::openclBILU0< Scalar, block_size >, Opm::Accelerator::openclBISAI< Scalar, block_size >, Opm::Accelerator::openclCPR< Scalar, block_size >, Opm::Accelerator::rocsparseBILU0< Scalar, block_size >, Opm::Accelerator::rocsparseBILU0< Scalar, 1 >, and Opm::Accelerator::rocsparseCPR< Scalar, block_size >.

Member Data Documentation

◆ N

template<class Scalar , unsigned int block_size, class ApplyScalar = Scalar>
int Opm::Accelerator::Preconditioner< Scalar, block_size, ApplyScalar >::N = 0
protected

◆ Nb

template<class Scalar , unsigned int block_size, class ApplyScalar = Scalar>
int Opm::Accelerator::Preconditioner< Scalar, block_size, ApplyScalar >::Nb = 0
protected

◆ nnz

template<class Scalar , unsigned int block_size, class ApplyScalar = Scalar>
int Opm::Accelerator::Preconditioner< Scalar, block_size, ApplyScalar >::nnz = 0
protected

◆ nnzb

template<class Scalar , unsigned int block_size, class ApplyScalar = Scalar>
int Opm::Accelerator::Preconditioner< Scalar, block_size, ApplyScalar >::nnzb = 0
protected

◆ verbosity

template<class Scalar , unsigned int block_size, class ApplyScalar = Scalar>
int Opm::Accelerator::Preconditioner< Scalar, block_size, ApplyScalar >::verbosity = 0
protected
The documentation for this class was generated from the following file:
