This template class contains the data which is required to calculate the fluxes of the fluid phases over a face of a finite volume for the black-oil model. More...

#include <blackoilextensivequantities.hh>

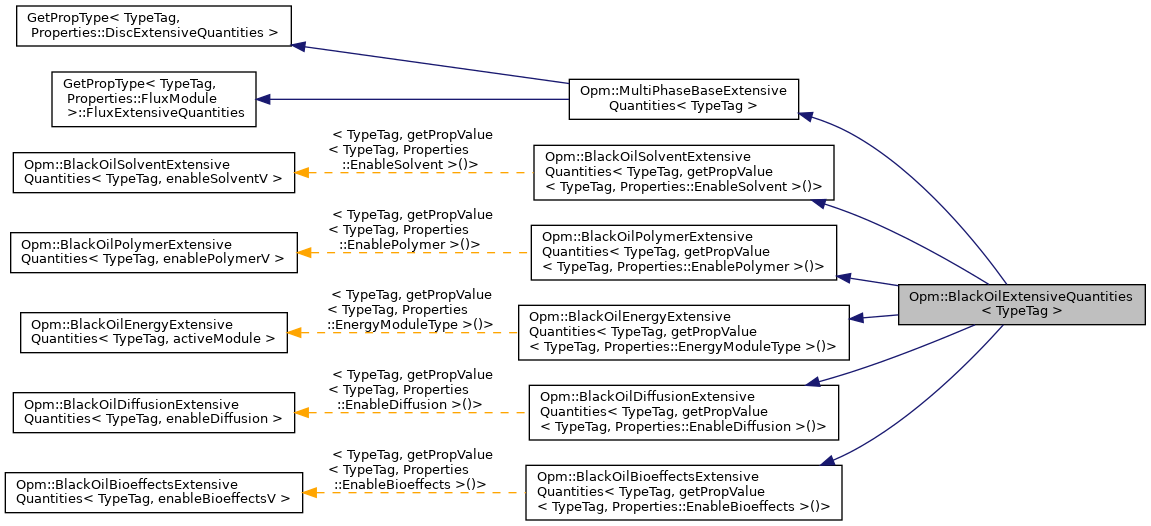

Inheritance diagram for Opm::BlackOilExtensiveQuantities< TypeTag >:

Public Member Functions
void	update (const ElementContext &elemCtx, unsigned scvfIdx, unsigned timeIdx)
	Update the extensive quantities for a given sub-control-volume-face. More...

template<class Context , class FluidState >
void	updateBoundary (const Context &ctx, unsigned bfIdx, unsigned timeIdx, const FluidState &fluidState)

short	upstreamIndex (unsigned phaseIdx) const
	Return the local index of the upstream control volume for a given phase as a function of the normal flux. More...

short	downstreamIndex (unsigned phaseIdx) const
	Return the local index of the downstream control volume for a given phase as a function of the normal flux. More...

Scalar	upstreamWeight (unsigned) const
	Return the weight of the upstream control volume for a given phase as a function of the normal flux. More...

Scalar	downstreamWeight (unsigned phaseIdx) const
	Return the weight of the downstream control volume for a given phase as a function of the normal flux. More...

void	updateVolumeFluxPerm (const ElementContext &elemCtx, unsigned scvfIdx, unsigned timeIdx)
	Method which calculates the volume flux of the polymer "phase" using the pressure potential gradient of the gas phase and the intrinsic permeability. More...

void	updateVolumeFluxTrans (const ElementContext &elemCtx, unsigned scvfIdx, unsigned timeIdx)
	Method which calculates the volume flux of the polymer "phase" using the gas pressure potential difference between cells and transmissibilities. More...

unsigned	solventUpstreamIndex () const

unsigned	solventDownstreamIndex () const

const Evaluation &	solventVolumeFlux () const

void	setSolventVolumeFlux (const Evaluation &solventVolumeFlux)

Static Public Member Functions
static void	registerParameters ()
	Register all run-time parameters for the extensive quantities. More...

Protected Member Functions
Implementation &	asImp_ ()

const Implementation &	asImp_ () const

Detailed Description

template<class TypeTag>
class Opm::BlackOilExtensiveQuantities< TypeTag >

This template class contains the data which is required to calculate the fluxes of the fluid phases over a face of a finite volume for the black-oil model.

This means pressure and concentration gradients, phase densities at the intergration point, etc.

Member Function Documentation

◆ asImp_() [1/2]

template<class TypeTag >

Implementation & Opm::BlackOilExtensiveQuantities< TypeTag >::asImp_ ( )

inlineprotected

Referenced by Opm::BlackOilExtensiveQuantities< TypeTag >::update(), and Opm::BlackOilExtensiveQuantities< TypeTag >::updateBoundary().

◆ asImp_() [2/2]

template<class TypeTag >

const Implementation & Opm::BlackOilExtensiveQuantities< TypeTag >::asImp_ ( ) const

inlineprotected

◆ downstreamIndex()

template<class TypeTag >

short Opm::MultiPhaseBaseExtensiveQuantities< TypeTag >::downstreamIndex ( unsigned phaseIdx ) const

inlineinherited

Return the local index of the downstream control volume for a given phase as a function of the normal flux.

Parameters

phaseIdx The index of the fluid phase for which the downstream direction is requested.

◆ downstreamWeight()

template<class TypeTag >

Scalar Opm::MultiPhaseBaseExtensiveQuantities< TypeTag >::downstreamWeight ( unsigned phaseIdx ) const

inlineinherited

Return the weight of the downstream control volume for a given phase as a function of the normal flux.

Parameters

phaseIdx The index of the fluid phase

References Opm::MultiPhaseBaseExtensiveQuantities< TypeTag >::upstreamWeight().

◆ registerParameters()

template<class TypeTag >

static void Opm::MultiPhaseBaseExtensiveQuantities< TypeTag >::registerParameters ( )

inlinestaticinherited

Register all run-time parameters for the extensive quantities.

Referenced by Opm::ImmiscibleExtensiveQuantities< TypeTag >::registerParameters().

◆ setSolventVolumeFlux()

void Opm::BlackOilSolventExtensiveQuantities< TypeTag, enableSolventV >::setSolventVolumeFlux ( const Evaluation & solventVolumeFlux )

inlineinherited

◆ solventDownstreamIndex()

unsigned Opm::BlackOilSolventExtensiveQuantities< TypeTag, enableSolventV >::solventDownstreamIndex ( ) const

inlineinherited

◆ solventUpstreamIndex()

unsigned Opm::BlackOilSolventExtensiveQuantities< TypeTag, enableSolventV >::solventUpstreamIndex ( ) const

inlineinherited

◆ solventVolumeFlux()

const Evaluation & Opm::BlackOilSolventExtensiveQuantities< TypeTag, enableSolventV >::solventVolumeFlux ( ) const

inlineinherited

◆ update()

template<class TypeTag >

void Opm::BlackOilExtensiveQuantities< TypeTag >::update	(	const ElementContext &	elemCtx,
		unsigned	scvfIdx,
		unsigned	timeIdx
	)

inline

Update the extensive quantities for a given sub-control-volume-face.

Parameters

elemCtx	Reference to the current element context.
scvfIdx	The local index of the sub-control-volume face for which the extensive quantities should be calculated.
timeIdx	The index used by the time discretization.

References Opm::BlackOilExtensiveQuantities< TypeTag >::asImp_(), and Opm::MultiPhaseBaseExtensiveQuantities< TypeTag >::update().

◆ updateBoundary()

template<class TypeTag >

template<class Context , class FluidState >

void Opm::BlackOilExtensiveQuantities< TypeTag >::updateBoundary	(	const Context &	ctx,
		unsigned	bfIdx,
		unsigned	timeIdx,
		const FluidState &	fluidState
	)

inline

References Opm::BlackOilExtensiveQuantities< TypeTag >::asImp_(), and Opm::MultiPhaseBaseExtensiveQuantities< TypeTag >::updateBoundary().

◆ updateVolumeFluxPerm()

void Opm::BlackOilSolventExtensiveQuantities< TypeTag, enableSolventV >::updateVolumeFluxPerm	(	const ElementContext &	elemCtx,
		unsigned	scvfIdx,
		unsigned	timeIdx
	)

inlineinherited

Method which calculates the volume flux of the polymer "phase" using the pressure potential gradient of the gas phase and the intrinsic permeability.

◆ updateVolumeFluxTrans()

void Opm::BlackOilSolventExtensiveQuantities< TypeTag, enableSolventV >::updateVolumeFluxTrans	(	const ElementContext &	elemCtx,
		unsigned	scvfIdx,
		unsigned	timeIdx
	)

inlineinherited

Method which calculates the volume flux of the polymer "phase" using the gas pressure potential difference between cells and transmissibilities.

◆ upstreamIndex()

template<class TypeTag >

short Opm::MultiPhaseBaseExtensiveQuantities< TypeTag >::upstreamIndex ( unsigned phaseIdx ) const

inlineinherited

Return the local index of the upstream control volume for a given phase as a function of the normal flux.

Parameters

phaseIdx The index of the fluid phase for which the upstream direction is requested.

◆ upstreamWeight()

template<class TypeTag >

Scalar Opm::MultiPhaseBaseExtensiveQuantities< TypeTag >::upstreamWeight ( unsigned ) const

inlineinherited

Return the weight of the upstream control volume for a given phase as a function of the normal flux.

Parameters

phaseIdx The index of the fluid phase

Referenced by Opm::MultiPhaseBaseExtensiveQuantities< TypeTag >::downstreamWeight().

The documentation for this class was generated from the following file:

blackoilextensivequantities.hh
