Opm::BlackOilPrimaryVariables< TypeTag > Class Template Reference

Represents the primary variables used by the black-oil model. More...

#include <blackoilprimaryvariables.hh>

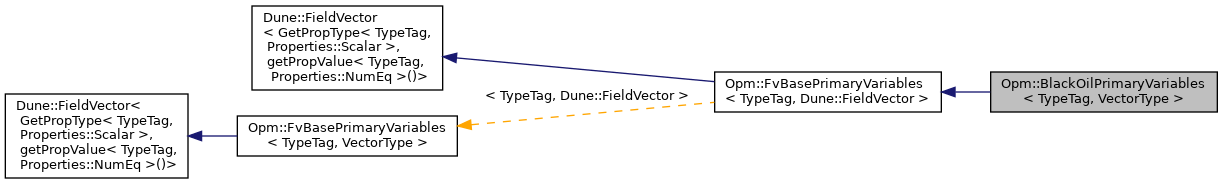

Inheritance diagram for Opm::BlackOilPrimaryVariables< TypeTag >:

Public Types
enum class	WaterMeaning : std::uint8_t { Sw , Rvw , Rsw , Disabled }
enum class	PressureMeaning : std::uint8_t { Po , Pg , Pw }
enum class	GasMeaning : std::uint8_t { Sg , Rs , Rv , Disabled }
enum class	BrineMeaning : std::uint8_t { Cs , Sp , Disabled }
enum class	SolventMeaning : std::uint8_t { Ss , Rsolw , Disabled }

Public Member Functions
	BlackOilPrimaryVariables ()
	BlackOilPrimaryVariables (const BlackOilPrimaryVariables &value)=default
	Copy constructor. More...
void	setPressureScale (Scalar val)
Evaluation	makeEvaluation (unsigned varIdx, unsigned timeIdx, LinearizationType linearizationType=LinearizationType()) const
void	setPvtRegionIndex (unsigned value)
	Set the index of the region which should be used for PVT properties. More...
unsigned	pvtRegionIndex () const
	Return the index of the region which should be used for PVT properties. More...
WaterMeaning	primaryVarsMeaningWater () const
	Return the interpretation which should be applied to the switching primary variables. More...
void	setPrimaryVarsMeaningWater (WaterMeaning newMeaning)
	Set the interpretation which should be applied to the switching primary variables. More...
PressureMeaning	primaryVarsMeaningPressure () const
	Return the interpretation which should be applied to the switching primary variables. More...
void	setPrimaryVarsMeaningPressure (PressureMeaning newMeaning)
	Set the interpretation which should be applied to the switching primary variables. More...
GasMeaning	primaryVarsMeaningGas () const
	Return the interpretation which should be applied to the switching primary variables. More...
void	setPrimaryVarsMeaningGas (GasMeaning newMeaning)
	Set the interpretation which should be applied to the switching primary variables. More...
BrineMeaning	primaryVarsMeaningBrine () const
void	setPrimaryVarsMeaningBrine (BrineMeaning newMeaning)
	Set the interpretation which should be applied to the switching primary variables. More...
SolventMeaning	primaryVarsMeaningSolvent () const
void	setPrimaryVarsMeaningSolvent (SolventMeaning newMeaning)
	Set the interpretation which should be applied to the switching primary variables. More...
template<class FluidState >
void	assignMassConservative (const FluidState &fluidState, const MaterialLawParams &matParams, bool isInEquilibrium=false)
	< Import base class assignment operators. More...
template<class FluidState >
void	assignNaive (const FluidState &fluidState)
	Directly retrieve the primary variables from an arbitrary fluid state. More...
bool	adaptPrimaryVariables (const Problem &problem, unsigned globalDofIdx, Scalar swMaximum, Scalar thresholdWaterFilledCell, Scalar eps=0.0)
	Adapt the interpretation of the switching variables to be physically meaningful. More...
bool	chopAndNormalizeSaturations ()
BlackOilPrimaryVariables &	operator= (const BlackOilPrimaryVariables &other)=default
void	checkDefined () const
	< Import base class assignment operators. More...
template<class Serializer >
void	serializeOp (Serializer &serializer)
bool	operator== (const BlackOilPrimaryVariables &rhs) const
FvBasePrimaryVariables &	operator= (const FvBasePrimaryVariables &value)=default
	Assignment from another primary variables object. More...

Static Public Member Functions
static BlackOilPrimaryVariables	serializationTestObject ()
static void	init ()
static void	registerParameters ()

Detailed Description

template<class TypeTag>
class Opm::BlackOilPrimaryVariables< TypeTag >

Represents the primary variables used by the black-oil model.

Member Enumeration Documentation

BrineMeaning

template<class TypeTag >

enum class Opm::BlackOilPrimaryVariables::BrineMeaning : std::uint8_t

strong

Enumerator
Cs
Sp
Disabled

GasMeaning

template<class TypeTag >

enum class Opm::BlackOilPrimaryVariables::GasMeaning : std::uint8_t

strong

Enumerator
Sg
Rs
Rv
Disabled

PressureMeaning

template<class TypeTag >

enum class Opm::BlackOilPrimaryVariables::PressureMeaning : std::uint8_t

strong

Enumerator
Po
Pg
Pw

SolventMeaning

template<class TypeTag >

enum class Opm::BlackOilPrimaryVariables::SolventMeaning : std::uint8_t

strong

Enumerator
Ss
Rsolw
Disabled

WaterMeaning

template<class TypeTag >

enum class Opm::BlackOilPrimaryVariables::WaterMeaning : std::uint8_t

strong

Enumerator
Sw
Rvw
Rsw
Disabled

Constructor & Destructor Documentation

BlackOilPrimaryVariables() [1/2]

template<class TypeTag >

Opm::BlackOilPrimaryVariables< TypeTag >::BlackOilPrimaryVariables ( )

inline

BlackOilPrimaryVariables() [2/2]

template<class TypeTag >

Opm::BlackOilPrimaryVariables< TypeTag >::BlackOilPrimaryVariables ( const BlackOilPrimaryVariables< TypeTag > &  value )

default

Copy constructor.

Parameters

value

The primary variables that will be duplicated.

Member Function Documentation

adaptPrimaryVariables()

template<class TypeTag >

bool Opm::BlackOilPrimaryVariables< TypeTag >::adaptPrimaryVariables ( const Problem &  problem, unsigned  globalDofIdx, Scalar  swMaximum, Scalar  thresholdWaterFilledCell, Scalar  eps = 0.0  )

inline

Adapt the interpretation of the switching variables to be physically meaningful.

If the meaning of the primary variables changes, their values are also adapted in a meaningful manner. A Scalar eps can be passed to make the switching condition more strict. Useful for avoiding ocsilation in the primaryVarsMeaning.

Returns

true Iff the interpretation of one of the switching variables was changed

References Opm::BlackOilPrimaryVariables< TypeTag >::Cs, Opm::BlackOilPrimaryVariables< TypeTag >::Disabled, Opm::BlackOilBrineModule< TypeTag, enableBrineV >::hasPcfactTables(), Opm::BlackOilSolventModule< TypeTag, enableSolventV >::isSolubleInWater(), Opm::BlackOilBrineModule< TypeTag, enableBrineV >::pcfactTable(), Opm::BlackOilPrimaryVariables< TypeTag >::Pg, Opm::BlackOilPrimaryVariables< TypeTag >::Po, Opm::BlackOilPrimaryVariables< TypeTag >::primaryVarsMeaningBrine(), Opm::BlackOilPrimaryVariables< TypeTag >::primaryVarsMeaningGas(), Opm::BlackOilPrimaryVariables< TypeTag >::primaryVarsMeaningPressure(), Opm::BlackOilPrimaryVariables< TypeTag >::primaryVarsMeaningSolvent(), Opm::BlackOilPrimaryVariables< TypeTag >::primaryVarsMeaningWater(), Opm::BlackOilPrimaryVariables< TypeTag >::pvtRegionIndex(), Opm::BlackOilPrimaryVariables< TypeTag >::Pw, Opm::BlackOilExtboModule< TypeTag, enableExtboV >::rs(), Opm::BlackOilPrimaryVariables< TypeTag >::Rs, Opm::BlackOilPrimaryVariables< TypeTag >::Rsolw, Opm::BlackOilPrimaryVariables< TypeTag >::Rsw, Opm::BlackOilExtboModule< TypeTag, enableExtboV >::rv(), Opm::BlackOilPrimaryVariables< TypeTag >::Rv, Opm::BlackOilPrimaryVariables< TypeTag >::Rvw, Opm::BlackOilBrineModule< TypeTag, enableBrineV >::saltSol(), Opm::BlackOilPrimaryVariables< TypeTag >::setPrimaryVarsMeaningBrine(), Opm::BlackOilPrimaryVariables< TypeTag >::setPrimaryVarsMeaningGas(), Opm::BlackOilPrimaryVariables< TypeTag >::setPrimaryVarsMeaningPressure(), Opm::BlackOilPrimaryVariables< TypeTag >::setPrimaryVarsMeaningSolvent(), Opm::BlackOilPrimaryVariables< TypeTag >::setPrimaryVarsMeaningWater(), Opm::BlackOilPrimaryVariables< TypeTag >::Sg, Opm::BlackOilSolventModule< TypeTag, enableSolventV >::solubilityLimit(), Opm::BlackOilPrimaryVariables< TypeTag >::Sp, Opm::BlackOilPrimaryVariables< TypeTag >::Ss, and Opm::BlackOilPrimaryVariables< TypeTag >::Sw.

assignMassConservative()

template<class TypeTag >

template<class FluidState >

void Opm::BlackOilPrimaryVariables< TypeTag >::assignMassConservative ( const FluidState &  fluidState, const MaterialLawParams &  matParams, bool  isInEquilibrium = false  )

inline

< Import base class assignment operators.

Set the primary variables from an arbitrary fluid state in a mass conservative way.

If an energy equation is included, the fluid temperatures are the same as the one given in the fluid state, not the enthalpy.

Parameters

fluidState	The fluid state which should be represented by the primary variables. The temperatures, pressures, compositions and densities of all phases must be defined.
matParams	The capillary pressure law parameters
isInEquilibrium	If true, the fluid state expresses thermodynamic equilibrium assuming the relations expressed by the fluid system. This implies that in addition to the quantities mentioned above, the fugacities are also defined.

References Opm::BlackOilPrimaryVariables< TypeTag >::assignNaive().

assignNaive()

template<class TypeTag >

template<class FluidState >

void Opm::BlackOilPrimaryVariables< TypeTag >::assignNaive ( const FluidState &  fluidState )

inline

Directly retrieve the primary variables from an arbitrary fluid state.

This method retrieves all primary variables from an abitrary fluid state without careing whether the state which is represented by the resulting primary variables features the equivalent mass as the given fluid state. This method is massively cheaper and simpler than assignMassConservative() but it should be used with care!

Parameters

fluidState

The fluid state which should be represented by the primary variables. The temperatures, pressures, compositions and densities of all phases must be defined.

References Opm::BlackOilEnergyModule< TypeTag, enableEnergyV >::assignPrimaryVars(), Opm::BlackOilPrimaryVariables< TypeTag >::Cs, Opm::BlackOilPrimaryVariables< TypeTag >::Disabled, Opm::BlackOilPrimaryVariables< TypeTag >::Pg, Opm::BlackOilPrimaryVariables< TypeTag >::Po, Opm::BlackOilPrimaryVariables< TypeTag >::primaryVarsMeaningGas(), Opm::BlackOilPrimaryVariables< TypeTag >::primaryVarsMeaningPressure(), Opm::BlackOilPrimaryVariables< TypeTag >::primaryVarsMeaningWater(), Opm::BlackOilPrimaryVariables< TypeTag >::Pw, Opm::BlackOilPrimaryVariables< TypeTag >::Rs, Opm::BlackOilPrimaryVariables< TypeTag >::Rsw, Opm::BlackOilPrimaryVariables< TypeTag >::Rv, Opm::BlackOilPrimaryVariables< TypeTag >::Rvw, Opm::BlackOilPrimaryVariables< TypeTag >::Sg, Opm::BlackOilPrimaryVariables< TypeTag >::Sp, and Opm::BlackOilPrimaryVariables< TypeTag >::Sw.

Referenced by Opm::BlackOilPrimaryVariables< TypeTag >::assignMassConservative().

checkDefined()

template<class TypeTag >

void Opm::BlackOilPrimaryVariables< TypeTag >::checkDefined ( ) const

inline

< Import base class assignment operators.

Instruct valgrind to check the definedness of all attributes of this class.

We cannot simply check the definedness of the whole object because there might be "alignedness holes" in the memory layout which are caused by the pseudo primary variables.

chopAndNormalizeSaturations()

template<class TypeTag >

bool Opm::BlackOilPrimaryVariables< TypeTag >::chopAndNormalizeSaturations ( )

inline

References Opm::BlackOilPrimaryVariables< TypeTag >::Disabled, Opm::BlackOilPrimaryVariables< TypeTag >::primaryVarsMeaningGas(), Opm::BlackOilPrimaryVariables< TypeTag >::primaryVarsMeaningSolvent(), Opm::BlackOilPrimaryVariables< TypeTag >::primaryVarsMeaningWater(), Opm::BlackOilPrimaryVariables< TypeTag >::Sg, Opm::BlackOilPrimaryVariables< TypeTag >::Ss, and Opm::BlackOilPrimaryVariables< TypeTag >::Sw.

init()

template<class TypeTag >

static void Opm::BlackOilPrimaryVariables< TypeTag >::init ( )

inlinestatic

makeEvaluation()

template<class TypeTag >

Evaluation Opm::BlackOilPrimaryVariables< TypeTag >::makeEvaluation ( unsigned  varIdx, unsigned  timeIdx, LinearizationType  linearizationType = LinearizationType()  ) const

inline

operator=() [1/2]

template<class TypeTag >

BlackOilPrimaryVariables & Opm::BlackOilPrimaryVariables< TypeTag >::operator= ( const BlackOilPrimaryVariables< TypeTag > &  other )

default

operator=() [2/2]

template<class TypeTag >

FvBasePrimaryVariables & Opm::FvBasePrimaryVariables< TypeTag >::operator= ( const FvBasePrimaryVariables &  value )

default

Assignment from another primary variables object.

operator==()

template<class TypeTag >

bool Opm::BlackOilPrimaryVariables< TypeTag >::operator== ( const BlackOilPrimaryVariables< TypeTag > &  rhs ) const

inline

primaryVarsMeaningBrine()

template<class TypeTag >

BrineMeaning Opm::BlackOilPrimaryVariables< TypeTag >::primaryVarsMeaningBrine ( ) const

inline

Referenced by Opm::BlackOilPrimaryVariables< TypeTag >::adaptPrimaryVariables().

primaryVarsMeaningGas()

template<class TypeTag >

GasMeaning Opm::BlackOilPrimaryVariables< TypeTag >::primaryVarsMeaningGas ( ) const

inline

Return the interpretation which should be applied to the switching primary variables.

Referenced by Opm::BlackOilPrimaryVariables< TypeTag >::adaptPrimaryVariables(), Opm::BlackOilPrimaryVariables< TypeTag >::assignNaive(), and Opm::BlackOilPrimaryVariables< TypeTag >::chopAndNormalizeSaturations().

primaryVarsMeaningPressure()

template<class TypeTag >

PressureMeaning Opm::BlackOilPrimaryVariables< TypeTag >::primaryVarsMeaningPressure ( ) const

inline

Return the interpretation which should be applied to the switching primary variables.

Referenced by Opm::BlackOilPrimaryVariables< TypeTag >::adaptPrimaryVariables(), and Opm::BlackOilPrimaryVariables< TypeTag >::assignNaive().

primaryVarsMeaningSolvent()

template<class TypeTag >

SolventMeaning Opm::BlackOilPrimaryVariables< TypeTag >::primaryVarsMeaningSolvent ( ) const

inline

Referenced by Opm::BlackOilPrimaryVariables< TypeTag >::adaptPrimaryVariables(), and Opm::BlackOilPrimaryVariables< TypeTag >::chopAndNormalizeSaturations().

primaryVarsMeaningWater()

template<class TypeTag >

WaterMeaning Opm::BlackOilPrimaryVariables< TypeTag >::primaryVarsMeaningWater ( ) const

inline

Return the interpretation which should be applied to the switching primary variables.

Referenced by Opm::BlackOilPrimaryVariables< TypeTag >::adaptPrimaryVariables(), Opm::BlackOilPrimaryVariables< TypeTag >::assignNaive(), and Opm::BlackOilPrimaryVariables< TypeTag >::chopAndNormalizeSaturations().

pvtRegionIndex()

template<class TypeTag >

unsigned Opm::BlackOilPrimaryVariables< TypeTag >::pvtRegionIndex ( ) const

inline

Return the index of the region which should be used for PVT properties.

Referenced by Opm::BlackOilPrimaryVariables< TypeTag >::adaptPrimaryVariables().

registerParameters()

template<class TypeTag >

static void Opm::BlackOilPrimaryVariables< TypeTag >::registerParameters ( )

inlinestatic

serializationTestObject()

template<class TypeTag >

static BlackOilPrimaryVariables Opm::BlackOilPrimaryVariables< TypeTag >::serializationTestObject ( )

inlinestatic

References Opm::BlackOilPrimaryVariables< TypeTag >::Pg, Opm::BlackOilPrimaryVariables< TypeTag >::Rsw, Opm::BlackOilPrimaryVariables< TypeTag >::Rv, Opm::BlackOilPrimaryVariables< TypeTag >::Sp, and Opm::BlackOilPrimaryVariables< TypeTag >::Ss.

serializeOp()

template<class TypeTag >

template<class Serializer >

void Opm::BlackOilPrimaryVariables< TypeTag >::serializeOp ( Serializer &  serializer )

inline

setPressureScale()

template<class TypeTag >

void Opm::BlackOilPrimaryVariables< TypeTag >::setPressureScale ( Scalar  val )

inline

setPrimaryVarsMeaningBrine()

template<class TypeTag >

void Opm::BlackOilPrimaryVariables< TypeTag >::setPrimaryVarsMeaningBrine ( BrineMeaning  newMeaning )

inline

Set the interpretation which should be applied to the switching primary variables.

Referenced by Opm::BlackOilPrimaryVariables< TypeTag >::adaptPrimaryVariables().

setPrimaryVarsMeaningGas()

template<class TypeTag >

void Opm::BlackOilPrimaryVariables< TypeTag >::setPrimaryVarsMeaningGas ( GasMeaning  newMeaning )

inline

Set the interpretation which should be applied to the switching primary variables.

Referenced by Opm::BlackOilPrimaryVariables< TypeTag >::adaptPrimaryVariables().

setPrimaryVarsMeaningPressure()

template<class TypeTag >

void Opm::BlackOilPrimaryVariables< TypeTag >::setPrimaryVarsMeaningPressure ( PressureMeaning  newMeaning )

inline

Set the interpretation which should be applied to the switching primary variables.

Referenced by Opm::BlackOilPrimaryVariables< TypeTag >::adaptPrimaryVariables().

setPrimaryVarsMeaningSolvent()

template<class TypeTag >

void Opm::BlackOilPrimaryVariables< TypeTag >::setPrimaryVarsMeaningSolvent ( SolventMeaning  newMeaning )

inline

Set the interpretation which should be applied to the switching primary variables.

Referenced by Opm::BlackOilPrimaryVariables< TypeTag >::adaptPrimaryVariables().

setPrimaryVarsMeaningWater()

template<class TypeTag >

void Opm::BlackOilPrimaryVariables< TypeTag >::setPrimaryVarsMeaningWater ( WaterMeaning  newMeaning )

inline

Set the interpretation which should be applied to the switching primary variables.

Referenced by Opm::BlackOilPrimaryVariables< TypeTag >::adaptPrimaryVariables().

setPvtRegionIndex()

template<class TypeTag >

void Opm::BlackOilPrimaryVariables< TypeTag >::setPvtRegionIndex ( unsigned  value )

inline

Set the index of the region which should be used for PVT properties.

PVT regions represent spatial variation of the composition decribed by the pseudo-components used by the black oil model (i.e., oil, gas and water). This introduce spatially varying pvt behaviour.

---

The documentation for this class was generated from the following file:

• blackoilprimaryvariables.hh
