Opm::CommunicateAboveBelow< Scalar > Class Template Reference

Class to facilitate getting values associated with the above/below perforation. More...

#include <ParallelWellInfo.hpp>

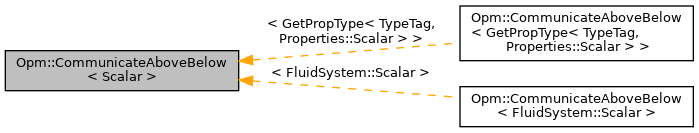

Inheritance diagram for Opm::CommunicateAboveBelow< Scalar >:

Public Types
enum	Attribute { owner =1 , overlap =2 , ownerAbove = 3 , overlapAbove = 4 }
using	LocalIndex = Dune::ParallelLocalIndex< Attribute >
using	IndexSet = Dune::ParallelIndexSet< int, LocalIndex, 50 >
using	RI = Dune::RemoteIndices< IndexSet >

Public Member Functions
	CommunicateAboveBelow (const Parallel::Communication &comm)
void	pushBackEclIndex (int above, int current, bool owner=true)
	Adds information about original index of the perforations in ECL Schedule. More...
void	clear ()
	Clear all the parallel information. More...
void	beginReset ()
	Indicates that we will add the index information. More...
int	endReset ()
	Indicates that the index information is complete. More...
std::vector< Scalar >	communicateAbove (Scalar first_value, const Scalar *current, std::size_t size)
	Creates an array of values for the perforation above. More...
std::vector< Scalar >	communicateBelow (Scalar first_value, const Scalar *current, std::size_t size)
	Creates an array of values for the perforation below. More...
template<class RAIterator >
void	partialSumPerfValues (RAIterator begin, RAIterator end) const
	Do a (in place) partial sum on values attached to all perforations. More...
const IndexSet &	getIndexSet () const
	Get index set for the local perforations. More...
int	numLocalPerfs () const

Detailed Description

template<class Scalar>
class Opm::CommunicateAboveBelow< Scalar >

Class to facilitate getting values associated with the above/below perforation.

Member Typedef Documentation

IndexSet

template<class Scalar >

using Opm::CommunicateAboveBelow< Scalar >::IndexSet = Dune::ParallelIndexSet<int,LocalIndex,50>

LocalIndex

template<class Scalar >

using Opm::CommunicateAboveBelow< Scalar >::LocalIndex = Dune::ParallelLocalIndex<Attribute>

RI

template<class Scalar >

using Opm::CommunicateAboveBelow< Scalar >::RI = Dune::RemoteIndices<IndexSet>

Member Enumeration Documentation

Attribute

template<class Scalar >

enum Opm::CommunicateAboveBelow::Attribute

Enumerator
owner
overlap
ownerAbove
overlapAbove

Constructor & Destructor Documentation

CommunicateAboveBelow()

template<class Scalar >

Opm::CommunicateAboveBelow< Scalar >::CommunicateAboveBelow ( const Parallel::Communication &  comm )

explicit

Member Function Documentation

beginReset()

template<class Scalar >

void Opm::CommunicateAboveBelow< Scalar >::beginReset

(

)

Indicates that we will add the index information.

See also

pushBackEclIndex

clear()

template<class Scalar >

void Opm::CommunicateAboveBelow< Scalar >::clear

(

)

Clear all the parallel information.

communicateAbove()

template<class Scalar >

std::vector< Scalar > Opm::CommunicateAboveBelow< Scalar >::communicateAbove	(	Scalar	first_value,
		const Scalar *	current,
		std::size_t	size
	)

Creates an array of values for the perforation above.

Parameters

first_value	Value to use for above of the first perforation
current	C-array of the values at the perforations
size	The size of the C-array and the returned vector

Returns

a vector containing the values for the perforation above.

communicateBelow()

template<class Scalar >

std::vector< Scalar > Opm::CommunicateAboveBelow< Scalar >::communicateBelow	(	Scalar	first_value,
		const Scalar *	current,
		std::size_t	size
	)

Creates an array of values for the perforation below.

Parameters

first_value	Value to use for above of the first perforation
current	C-array of the values at the perforations
size	The size of the C-array and the returned vector

Returns

a vector containing the values for the perforation above.

endReset()

template<class Scalar >

int Opm::CommunicateAboveBelow< Scalar >::endReset

(

)

Indicates that the index information is complete.

Sets up the commmunication structures to be used by communicate()

Returns

The number of local perforations

getIndexSet()

template<class Scalar >

const IndexSet & Opm::CommunicateAboveBelow< Scalar >::getIndexSet

(

)

const

Get index set for the local perforations.

numLocalPerfs()

template<class Scalar >

int Opm::CommunicateAboveBelow< Scalar >::numLocalPerfs

(

)

const

partialSumPerfValues()

template<class Scalar >

template<class RAIterator >

void Opm::CommunicateAboveBelow< Scalar >::partialSumPerfValues	(	RAIterator	begin,
		RAIterator	end
	)		const

Do a (in place) partial sum on values attached to all perforations.

For distributed wells this may include perforations stored elsewhere. The result is stored in ther range given as the parameters

Parameters

begin	The start of the range
ebd	The end of the range

Template Parameters

RAIterator

The type og random access iterator

pushBackEclIndex()

template<class Scalar >

void Opm::CommunicateAboveBelow< Scalar >::pushBackEclIndex	(	int	above,
		int	current,
		bool	owner = true
	)

Adds information about original index of the perforations in ECL Schedule.

Warning

Theses indices need to be push in the same order as they appear in the ECL well specifiation. Use -1 if there is no perforation above.

Parameters

above	The ECL index of the next open perforation above.
current	The ECL index of the current open perforation.

---

The documentation for this class was generated from the following file:

• ParallelWellInfo.hpp
