Class encapsulating some information about parallel wells. More...

#include <ParallelWellInfo.hpp>

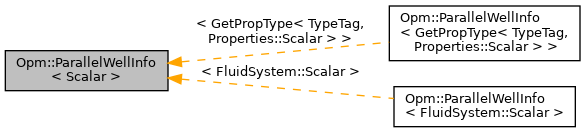

Inheritance diagram for Opm::ParallelWellInfo< Scalar >:

Public Member Functions
	ParallelWellInfo (const std::string &name={""}, bool hasLocalCells=true)
	Constructs object using MPI_COMM_SELF. More...

	ParallelWellInfo (const std::pair< std::string, bool > &well_info, Parallel::Communication allComm)
	Constructs object with communication between all rank sharing a well. More...

const Parallel::Communication &	communication () const

void	communicateFirstPerforation (bool hasFirst)
	Collectively decide which rank has first perforation. More...

template<class T >
T	broadcastFirstPerforationValue (const T &t) const

std::vector< Scalar >	communicateAboveValues (Scalar first_value, const Scalar *current, std::size_t size) const
	Creates an array of values for the perforation above. More...

std::vector< Scalar >	communicateAboveValues (Scalar first_value, const std::vector< Scalar > &current) const
	Creates an array of values for the perforation above. More...

std::vector< Scalar >	communicateBelowValues (Scalar last_value, const Scalar *current, std::size_t size) const
	Creates an array of values for the perforation below. More...

std::vector< Scalar >	communicateBelowValues (Scalar last_value, const std::vector< Scalar > &current) const
	Creates an array of values for the perforation above. More...

void	pushBackEclIndex (int above, int current)
	Adds information about the ecl indices of the perforations. More...

const std::string &	name () const
	Name of the well. More...

bool	hasLocalCells () const
	Whether local cells are perforated somewhen. More...

bool	isOwner () const

void	beginReset ()
	Inidicate that we will reset the ecl index information. More...

void	endReset ()
	Inidicate completion of reset of the ecl index information. More...

template<typename It >
It::value_type	sumPerfValues (It begin, It end) const
	Sum all the values of the perforations. More...

template<class RAIterator >
void	partialSumPerfValues (RAIterator begin, RAIterator end) const
	Do a (in place) partial sum on values attached to all perforations. More...

void	clear ()
	Free data of communication data structures. More...

const GlobalPerfContainerFactory< Scalar > &	getGlobalPerfContainerFactory () const
	Get a factor to create a global representation of peforation data. More...

Static Public Attributes
static constexpr int	INVALID_ECL_INDEX = -1

Detailed Description

template<class Scalar>
class Opm::ParallelWellInfo< Scalar >

Class encapsulating some information about parallel wells.

e.g. It provides a communicator for well information

Constructor & Destructor Documentation

◆ ParallelWellInfo() [1/2]

template<class Scalar >

Opm::ParallelWellInfo< Scalar >::ParallelWellInfo	(	const std::string &	name = `{""}`,
		bool	hasLocalCells = `true`
	)

Constructs object using MPI_COMM_SELF.

◆ ParallelWellInfo() [2/2]

template<class Scalar >

Opm::ParallelWellInfo< Scalar >::ParallelWellInfo	(	const std::pair< std::string, bool > &	well_info,
		Parallel::Communication	allComm
	)

Constructs object with communication between all rank sharing a well.

Parameters

well_info	Pair of well name and whether local cells might be perforated on this rank
allComm	The communication object with all MPI ranks active in the simulation. Default is the one with all ranks available.

Member Function Documentation

◆ beginReset()

template<class Scalar >

void Opm::ParallelWellInfo< Scalar >::beginReset ( )

Inidicate that we will reset the ecl index information.

See also: pushBackEclIndex;

◆ broadcastFirstPerforationValue()

template<class Scalar >

template<class T >

T Opm::ParallelWellInfo< Scalar >::broadcastFirstPerforationValue ( const T & t ) const

If the well does not have any open connections the member rankWithFirstPerf is not initialized, and no broadcast is performed. In this case the argument is returned unmodified.

◆ clear()

template<class Scalar >

void Opm::ParallelWellInfo< Scalar >::clear ( )

Free data of communication data structures.

◆ communicateAboveValues() [1/2]

template<class Scalar >

std::vector< Scalar > Opm::ParallelWellInfo< Scalar >::communicateAboveValues	(	Scalar	first_value,
		const Scalar *	current,
		std::size_t	size
	)		const

Creates an array of values for the perforation above.

Parameters

first_value	Value to use for above of the first perforation
current	C-array of the values at the perforations
size	The size of the C-array and the returned vector

Returns: a vector containing the values for the perforation above.

◆ communicateAboveValues() [2/2]

template<class Scalar >

std::vector< Scalar > Opm::ParallelWellInfo< Scalar >::communicateAboveValues	(	Scalar	first_value,
		const std::vector< Scalar > &	current
	)		const

Creates an array of values for the perforation above.

Parameters

first_value	Value to use for above of the first perforation
current	vector of current values

◆ communicateBelowValues() [1/2]

template<class Scalar >

std::vector< Scalar > Opm::ParallelWellInfo< Scalar >::communicateBelowValues	(	Scalar	last_value,
		const Scalar *	current,
		std::size_t	size
	)		const

Creates an array of values for the perforation below.

Parameters

last_value	Value to use for below of the last perforation
current	C-array of the values at the perforations
size	The size of the C-array and the returned vector

Returns: a vector containing the values for the perforation above.

◆ communicateBelowValues() [2/2]

template<class Scalar >

std::vector< Scalar > Opm::ParallelWellInfo< Scalar >::communicateBelowValues	(	Scalar	last_value,
		const std::vector< Scalar > &	current
	)		const

Creates an array of values for the perforation above.

Parameters

last_value	Value to use for below of the last perforation
current	vector of current values

◆ communicateFirstPerforation()

template<class Scalar >

void Opm::ParallelWellInfo< Scalar >::communicateFirstPerforation ( bool hasFirst )

Collectively decide which rank has first perforation.

◆ communication()

template<class Scalar >

const Parallel::Communication & Opm::ParallelWellInfo< Scalar >::communication ( ) const

inline

◆ endReset()

template<class Scalar >

void Opm::ParallelWellInfo< Scalar >::endReset ( )

Inidicate completion of reset of the ecl index information.

◆ getGlobalPerfContainerFactory()

template<class Scalar >

const GlobalPerfContainerFactory< Scalar > & Opm::ParallelWellInfo< Scalar >::getGlobalPerfContainerFactory ( ) const

Get a factor to create a global representation of peforation data.

That is a container that holds data for every perforation no matter where it is stored. Container is ordered via ascendings index of the perforations in the ECL schedule.

◆ hasLocalCells()

template<class Scalar >

bool Opm::ParallelWellInfo< Scalar >::hasLocalCells ( ) const

inline

Whether local cells are perforated somewhen.

◆ isOwner()

template<class Scalar >

bool Opm::ParallelWellInfo< Scalar >::isOwner ( ) const

inline

◆ name()

template<class Scalar >

const std::string & Opm::ParallelWellInfo< Scalar >::name ( ) const

inline

Name of the well.

◆ partialSumPerfValues()

template<class Scalar >

template<class RAIterator >

void Opm::ParallelWellInfo< Scalar >::partialSumPerfValues	(	RAIterator	begin,
		RAIterator	end
	)		const

inline

Do a (in place) partial sum on values attached to all perforations.

For distributed wells this may include perforations stored elsewhere. The result is stored in ther range given as the parameters

Parameters

begin	The start of the range
ebd	The end of the range

Template Parameters

RAIterator The type og random access iterator

◆ pushBackEclIndex()

template<class Scalar >

void Opm::ParallelWellInfo< Scalar >::pushBackEclIndex	(	int	above,
		int	current
	)

Adds information about the ecl indices of the perforations.

Warning: Theses indices need to be push in the same order as they appear in the ECL well specifiation. Use -1 if there is no perforation above.

Parameters

above	The ECL index of the next open perforation above.
current	The ECL index of the current open perforation.

◆ sumPerfValues()

template<class Scalar >

template<typename It >

It::value_type Opm::ParallelWellInfo< Scalar >::sumPerfValues	(	It	begin,
		It	end
	)		const

Sum all the values of the perforations.

Member Data Documentation

◆ INVALID_ECL_INDEX

template<class Scalar >

constexpr int Opm::ParallelWellInfo< Scalar >::INVALID_ECL_INDEX = -1

staticconstexpr

The documentation for this class was generated from the following files:
