Public Member Functions | List of all members
Opm::SatfuncConsistencyChecks< Scalar >::Check Class Referenceabstract

#include <SatfuncConsistencyChecks.hpp>

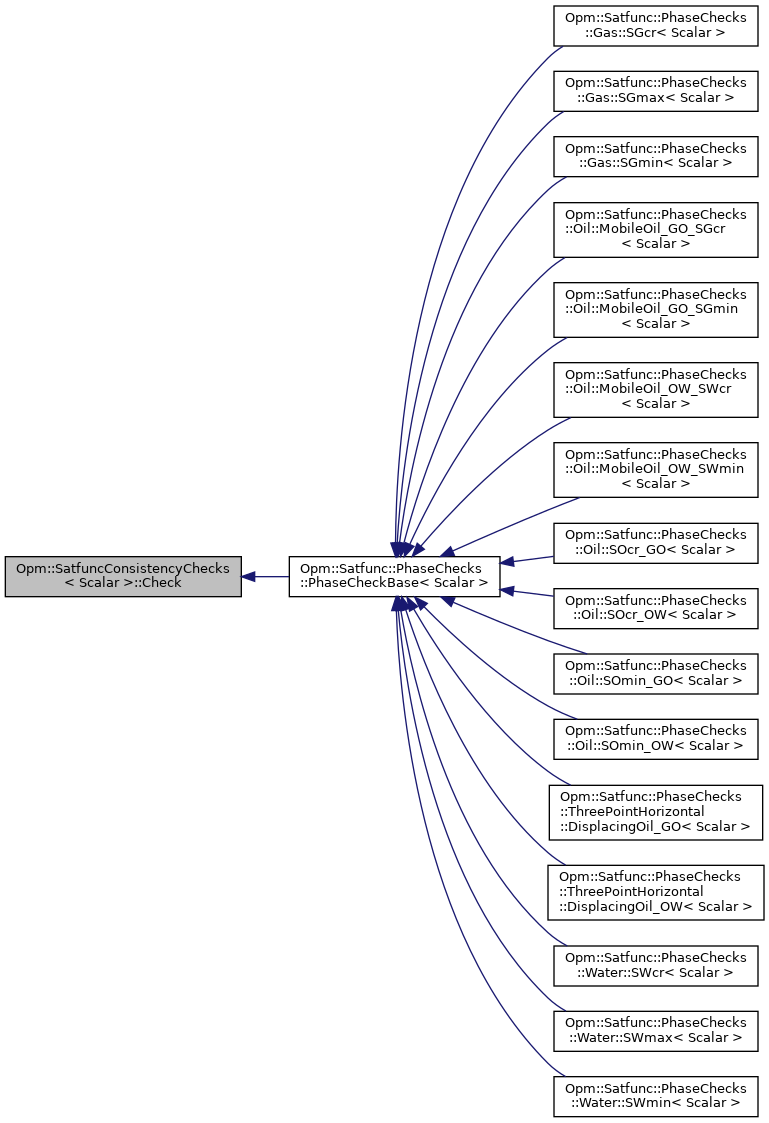

Inheritance diagram for Opm::SatfuncConsistencyChecks< Scalar >::Check:
Inheritance graph

Public Member Functions

virtual ~Check ()=default
 Virtual destructor since class has virtual functions. More...

virtual void test (const EclEpsScalingPointsInfo< Scalar > &endPoints)=0

virtual bool isViolated () const =0
 Whether or not last set of end-points violated this particular check. More...

virtual bool isCritical () const =0

virtual std::size_t numExportedCheckValues () const =0
 Number of Scalar values involved in the check. More...

virtual void exportCheckValues (Scalar *exportedCheckValues) const =0

virtual std::string description () const =0

virtual std::string condition () const =0
 Textual representation of the consistency condition. More...

virtual void columnNames (std::string *headers) const =0


Detailed Description

template<typename Scalar>
class Opm::SatfuncConsistencyChecks< Scalar >::Check

Call-back interface for an individual check.

Specific checks are expected to inherit from this base class.

Constructor & Destructor Documentation

◆ ~Check()

template<typename Scalar >
virtual Opm::SatfuncConsistencyChecks< Scalar >::Check::~Check ( )
virtualdefault

Virtual destructor since class has virtual functions.

Member Function Documentation

◆ columnNames()

template<typename Scalar >
virtual void Opm::SatfuncConsistencyChecks< Scalar >::Check::columnNames ( std::string *  headers) const
pure virtual

Retrieve names of the exported check values.

Order should match that of exportCheckValues().

Parameters
[in,out]headersPointer to contiguous sequence of at least numExportedCheckValues() strings. It is the responsibility of columnNames() to populate this sequence with sensible values.

Implemented in Opm::Satfunc::PhaseChecks::Gas::SGmin< Scalar >, Opm::Satfunc::PhaseChecks::Gas::SGmax< Scalar >, Opm::Satfunc::PhaseChecks::Gas::SGcr< Scalar >, Opm::Satfunc::PhaseChecks::Oil::SOcr_GO< Scalar >, Opm::Satfunc::PhaseChecks::Oil::SOmin_GO< Scalar >, Opm::Satfunc::PhaseChecks::Oil::MobileOil_GO_SGmin< Scalar >, Opm::Satfunc::PhaseChecks::Oil::MobileOil_GO_SGcr< Scalar >, Opm::Satfunc::PhaseChecks::Oil::SOcr_OW< Scalar >, Opm::Satfunc::PhaseChecks::Oil::SOmin_OW< Scalar >, Opm::Satfunc::PhaseChecks::Oil::MobileOil_OW_SWmin< Scalar >, Opm::Satfunc::PhaseChecks::Oil::MobileOil_OW_SWcr< Scalar >, Opm::Satfunc::PhaseChecks::ThreePointHorizontal::DisplacingOil_GO< Scalar >, Opm::Satfunc::PhaseChecks::ThreePointHorizontal::DisplacingOil_OW< Scalar >, Opm::Satfunc::PhaseChecks::Water::SWmin< Scalar >, Opm::Satfunc::PhaseChecks::Water::SWmax< Scalar >, and Opm::Satfunc::PhaseChecks::Water::SWcr< Scalar >.

◆ condition()

template<typename Scalar >
virtual std::string Opm::SatfuncConsistencyChecks< Scalar >::Check::condition ( ) const
pure virtual

Textual representation of the consistency condition.

Implemented in Opm::Satfunc::PhaseChecks::Gas::SGmin< Scalar >, Opm::Satfunc::PhaseChecks::Gas::SGmax< Scalar >, Opm::Satfunc::PhaseChecks::Gas::SGcr< Scalar >, Opm::Satfunc::PhaseChecks::Oil::SOcr_GO< Scalar >, Opm::Satfunc::PhaseChecks::Oil::SOmin_GO< Scalar >, Opm::Satfunc::PhaseChecks::Oil::MobileOil_GO_SGmin< Scalar >, Opm::Satfunc::PhaseChecks::Oil::MobileOil_GO_SGcr< Scalar >, Opm::Satfunc::PhaseChecks::Oil::SOcr_OW< Scalar >, Opm::Satfunc::PhaseChecks::Oil::SOmin_OW< Scalar >, Opm::Satfunc::PhaseChecks::Oil::MobileOil_OW_SWmin< Scalar >, Opm::Satfunc::PhaseChecks::Oil::MobileOil_OW_SWcr< Scalar >, Opm::Satfunc::PhaseChecks::ThreePointHorizontal::DisplacingOil_GO< Scalar >, Opm::Satfunc::PhaseChecks::ThreePointHorizontal::DisplacingOil_OW< Scalar >, Opm::Satfunc::PhaseChecks::Water::SWmin< Scalar >, Opm::Satfunc::PhaseChecks::Water::SWmax< Scalar >, and Opm::Satfunc::PhaseChecks::Water::SWcr< Scalar >.

◆ description()

template<typename Scalar >
virtual std::string Opm::SatfuncConsistencyChecks< Scalar >::Check::description ( ) const
pure virtual

Descriptive textual summary of this check.

Might for instance be something along the lines of Oil-phase scaled end-points

Implemented in Opm::Satfunc::PhaseChecks::Gas::SGmin< Scalar >, Opm::Satfunc::PhaseChecks::Gas::SGmax< Scalar >, Opm::Satfunc::PhaseChecks::Gas::SGcr< Scalar >, Opm::Satfunc::PhaseChecks::Oil::SOcr_GO< Scalar >, Opm::Satfunc::PhaseChecks::Oil::SOmin_GO< Scalar >, Opm::Satfunc::PhaseChecks::Oil::MobileOil_GO_SGmin< Scalar >, Opm::Satfunc::PhaseChecks::Oil::MobileOil_GO_SGcr< Scalar >, Opm::Satfunc::PhaseChecks::Oil::SOcr_OW< Scalar >, Opm::Satfunc::PhaseChecks::Oil::SOmin_OW< Scalar >, Opm::Satfunc::PhaseChecks::Oil::MobileOil_OW_SWmin< Scalar >, Opm::Satfunc::PhaseChecks::Oil::MobileOil_OW_SWcr< Scalar >, Opm::Satfunc::PhaseChecks::ThreePointHorizontal::DisplacingOil_GO< Scalar >, Opm::Satfunc::PhaseChecks::ThreePointHorizontal::DisplacingOil_OW< Scalar >, Opm::Satfunc::PhaseChecks::Water::SWmin< Scalar >, Opm::Satfunc::PhaseChecks::Water::SWmax< Scalar >, and Opm::Satfunc::PhaseChecks::Water::SWcr< Scalar >.

◆ exportCheckValues()

template<typename Scalar >
virtual void Opm::SatfuncConsistencyChecks< Scalar >::Check::exportCheckValues ( Scalar *  exportedCheckValues) const
pure virtual

Get a linearised copy of the Scalar values involved in the check.

Parameters
[in,out]exportedCheckValuesPointer to contiguous sequence of at least numExportedCheckValues() Scalars. It is the responsibility of exportCheckValues() to populate this sequence with sensible values.

Implemented in Opm::Satfunc::PhaseChecks::Gas::SGmin< Scalar >, Opm::Satfunc::PhaseChecks::Gas::SGmax< Scalar >, Opm::Satfunc::PhaseChecks::Gas::SGcr< Scalar >, Opm::Satfunc::PhaseChecks::Oil::SOcr_GO< Scalar >, Opm::Satfunc::PhaseChecks::Oil::SOmin_GO< Scalar >, Opm::Satfunc::PhaseChecks::Oil::MobileOil_GO_SGmin< Scalar >, Opm::Satfunc::PhaseChecks::Oil::MobileOil_GO_SGcr< Scalar >, Opm::Satfunc::PhaseChecks::Oil::SOcr_OW< Scalar >, Opm::Satfunc::PhaseChecks::Oil::SOmin_OW< Scalar >, Opm::Satfunc::PhaseChecks::Oil::MobileOil_OW_SWmin< Scalar >, Opm::Satfunc::PhaseChecks::Oil::MobileOil_OW_SWcr< Scalar >, Opm::Satfunc::PhaseChecks::ThreePointHorizontal::DisplacingOil_GO< Scalar >, Opm::Satfunc::PhaseChecks::ThreePointHorizontal::DisplacingOil_OW< Scalar >, Opm::Satfunc::PhaseChecks::Water::SWmin< Scalar >, Opm::Satfunc::PhaseChecks::Water::SWmax< Scalar >, and Opm::Satfunc::PhaseChecks::Water::SWcr< Scalar >.

◆ isCritical()

template<typename Scalar >
virtual bool Opm::SatfuncConsistencyChecks< Scalar >::Check::isCritical ( ) const
pure virtual

Whether or not this check is critical to the simulator's ability to run the case.

Violating critical checks should typically stop the run.

Implemented in Opm::Satfunc::PhaseChecks::PhaseCheckBase< Scalar >.

◆ isViolated()

template<typename Scalar >
virtual bool Opm::SatfuncConsistencyChecks< Scalar >::Check::isViolated ( ) const
pure virtual

Whether or not last set of end-points violated this particular check.

Implemented in Opm::Satfunc::PhaseChecks::PhaseCheckBase< Scalar >.

◆ numExportedCheckValues()

template<typename Scalar >
virtual std::size_t Opm::SatfuncConsistencyChecks< Scalar >::Check::numExportedCheckValues ( ) const
pure virtual

Number of Scalar values involved in the check.

Implemented in Opm::Satfunc::PhaseChecks::Gas::SGmin< Scalar >, Opm::Satfunc::PhaseChecks::Gas::SGmax< Scalar >, Opm::Satfunc::PhaseChecks::Gas::SGcr< Scalar >, Opm::Satfunc::PhaseChecks::Oil::SOcr_GO< Scalar >, Opm::Satfunc::PhaseChecks::Oil::SOmin_GO< Scalar >, Opm::Satfunc::PhaseChecks::Oil::MobileOil_GO_SGmin< Scalar >, Opm::Satfunc::PhaseChecks::Oil::MobileOil_GO_SGcr< Scalar >, Opm::Satfunc::PhaseChecks::Oil::SOcr_OW< Scalar >, Opm::Satfunc::PhaseChecks::Oil::SOmin_OW< Scalar >, Opm::Satfunc::PhaseChecks::Oil::MobileOil_OW_SWmin< Scalar >, Opm::Satfunc::PhaseChecks::Oil::MobileOil_OW_SWcr< Scalar >, Opm::Satfunc::PhaseChecks::ThreePointHorizontal::DisplacingOil_GO< Scalar >, Opm::Satfunc::PhaseChecks::ThreePointHorizontal::DisplacingOil_OW< Scalar >, Opm::Satfunc::PhaseChecks::Water::SWmin< Scalar >, Opm::Satfunc::PhaseChecks::Water::SWmax< Scalar >, and Opm::Satfunc::PhaseChecks::Water::SWcr< Scalar >.

◆ test()

template<typename Scalar >
virtual void Opm::SatfuncConsistencyChecks< Scalar >::Check::test ( const EclEpsScalingPointsInfo< Scalar > &  endPoints)
pure virtual

Run specific check against a set of saturation function end-points.

Parameters
[in]endPointsSet of saturation function end-points. Might for instance be the scaled end-points of the drainage functions in a single grid block or the unscaled end-points of the tabulated saturation functions in a single saturation region.

Implemented in Opm::Satfunc::PhaseChecks::PhaseCheckBase< Scalar >.

The documentation for this class was generated from the following file:
