A class which handles sequential implicit solution of the energy equation as specified in by TEMP. More...

#include <TemperatureModel.hpp>

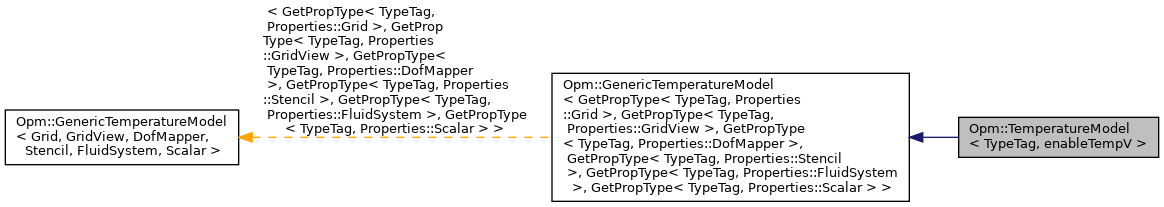

Inheritance diagram for Opm::TemperatureModel< TypeTag, enableTempV >:

Public Types
using	CartesianIndexMapper = Dune::CartesianIndexMapper< GetPropType< TypeTag, Properties::Grid > >

Public Member Functions
	TemperatureModel (Simulator &simulator)

void	init ()

void	beginTimeStep ()

void	endTimeStep (WellStateType &wellState)
	Informs the temperature model that a time step has just been finished. More...

template<class Restarter >
void	serialize (Restarter &)
	This method writes the complete state of all temperature to the hard disk. More...

template<class Restarter >
void	deserialize (Restarter &)
	This method restores the complete state of the temperature from disk. More...

bool	doTemp ()

const GetPropType< TypeTag, Properties::Scalar >	temperature (size_t globalIdx) const

Static Public Attributes
static constexpr int	dimWorld

Protected Member Functions
void	updateStorageCache ()

void	advanceTemperatureFields ()

void	solveAndUpdate ()

bool	converged (const int iter)

template<class LhsEval >
void	computeStorageTerm (unsigned globI, LhsEval &storage)

template<class RateVector >
void	computeFluxTerm (const FluidStateTemp &fsIn, const FluidStateTemp &fsEx, const RateVector &darcyFlux, Evaluation &flux)

template<class ResidualNBInfo >
void	computeHeatFluxTerm (const IntensiveQuantitiesTemp &intQuantsIn, const IntensiveQuantitiesTemp &intQuantsEx, const ResidualNBInfo &res_nbinfo, Evaluation &heatFlux)

void	assembleEquations ()

template<class Well >
void	assembleEquationWell (const Well &well)

template<class Well , class SingleWellState >
void	computeWellTemperature (const Well &well, SingleWellState &ws)

void	doInit (std::size_t numGridDof)
	Initialize all internal data structures needed by the temperature module. More...

bool	linearSolve_ (const EnergyMatrix &M, EnergyVector &x, EnergyVector &b)

Protected Attributes
const Simulator &	simulator_

EnergyVector	storage1_

std::vector< IntensiveQuantitiesTemp >	intQuants_

SparseTable< NeighborInfoCPU >	neighborInfo_ {}

std::vector< MatrixBlockTemp * >	diagMatAddress_ {}

std::unique_ptr< SpareMatrixEnergyAdapter >	energyMatrix_

std::vector< int >	overlapRows_

std::vector< int >	interiorRows_

Scalar	scalingFactor_ {1.0}

const GetPropType< TypeTag, Properties::GridView > &	gridView_

const EclipseState &	eclState_

const CartesianIndexMapper &	cartMapper_

const GetPropType< TypeTag, Properties::DofMapper > &	dofMapper_

EnergyVector	energyVector_

std::vector< GetPropType< TypeTag, Properties::Scalar > >	temperature_

std::vector< GetPropType< TypeTag, Properties::Scalar > >	energy_rates_

bool	doTemp_

GetPropType< TypeTag, Properties::Scalar >	maxTempChange_

Detailed Description

template<class TypeTag, bool enableTempV = getPropValue<TypeTag, Properties::EnergyModuleType>() == EnergyModules::SequentialImplicitThermal>
class Opm::TemperatureModel< TypeTag, enableTempV >

A class which handles sequential implicit solution of the energy equation as specified in by TEMP.

Member Typedef Documentation

◆ CartesianIndexMapper

using Opm::GenericTemperatureModel< GetPropType< TypeTag, Properties::Grid > , GetPropType< TypeTag, Properties::GridView > , GetPropType< TypeTag, Properties::DofMapper > , GetPropType< TypeTag, Properties::Stencil > , GetPropType< TypeTag, Properties::FluidSystem > , GetPropType< TypeTag, Properties::Scalar > >::CartesianIndexMapper = Dune::CartesianIndexMapper<GetPropType< TypeTag, Properties::Grid > >

inherited

Constructor & Destructor Documentation

◆ TemperatureModel()

template<class TypeTag , bool enableTempV = getPropValue<TypeTag, Properties::EnergyModuleType>() == EnergyModules::SequentialImplicitThermal>

Opm::TemperatureModel< TypeTag, enableTempV >::TemperatureModel ( Simulator & simulator )

inlineexplicit

Member Function Documentation

◆ advanceTemperatureFields()

template<class TypeTag , bool enableTempV = getPropValue<TypeTag, Properties::EnergyModuleType>() == EnergyModules::SequentialImplicitThermal>

void Opm::TemperatureModel< TypeTag, enableTempV >::advanceTemperatureFields ( )

inlineprotected

References Opm::TemperatureModel< TypeTag, enableTempV >::assembleEquations(), Opm::TemperatureModel< TypeTag, enableTempV >::converged(), and Opm::TemperatureModel< TypeTag, enableTempV >::solveAndUpdate().

Referenced by Opm::TemperatureModel< TypeTag, enableTempV >::endTimeStep().

◆ assembleEquations()

template<class TypeTag , bool enableTempV = getPropValue<TypeTag, Properties::EnergyModuleType>() == EnergyModules::SequentialImplicitThermal>

void Opm::TemperatureModel< TypeTag, enableTempV >::assembleEquations ( )

inlineprotected

Referenced by Opm::TemperatureModel< TypeTag, enableTempV >::advanceTemperatureFields().

◆ assembleEquationWell()

template<class TypeTag , bool enableTempV = getPropValue<TypeTag, Properties::EnergyModuleType>() == EnergyModules::SequentialImplicitThermal>

template<class Well >

void Opm::TemperatureModel< TypeTag, enableTempV >::assembleEquationWell ( const Well & well )

inlineprotected

Referenced by Opm::TemperatureModel< TypeTag, enableTempV >::assembleEquations().

◆ beginTimeStep()

template<class TypeTag , bool enableTempV = getPropValue<TypeTag, Properties::EnergyModuleType>() == EnergyModules::SequentialImplicitThermal>

void Opm::TemperatureModel< TypeTag, enableTempV >::beginTimeStep ( )

inline

◆ computeFluxTerm()

template<class TypeTag , bool enableTempV = getPropValue<TypeTag, Properties::EnergyModuleType>() == EnergyModules::SequentialImplicitThermal>

template<class RateVector >

void Opm::TemperatureModel< TypeTag, enableTempV >::computeFluxTerm	(	const FluidStateTemp &	fsIn,
		const FluidStateTemp &	fsEx,
		const RateVector &	darcyFlux,
		Evaluation &	flux
	)

inlineprotected

References Opm::TemperatureModel< TypeTag, enableTempV >::scalingFactor_.

Referenced by Opm::TemperatureModel< TypeTag, enableTempV >::assembleEquations().

◆ computeHeatFluxTerm()

template<class TypeTag , bool enableTempV = getPropValue<TypeTag, Properties::EnergyModuleType>() == EnergyModules::SequentialImplicitThermal>

template<class ResidualNBInfo >

void Opm::TemperatureModel< TypeTag, enableTempV >::computeHeatFluxTerm	(	const IntensiveQuantitiesTemp &	intQuantsIn,
		const IntensiveQuantitiesTemp &	intQuantsEx,
		const ResidualNBInfo &	res_nbinfo,
		Evaluation &	heatFlux
	)

inlineprotected

References Opm::BlackOilEnergyIntensiveQuantitiesTemp< TypeTag >::fluidStateTemp(), and Opm::TemperatureModel< TypeTag, enableTempV >::scalingFactor_.

Referenced by Opm::TemperatureModel< TypeTag, enableTempV >::assembleEquations().

◆ computeStorageTerm()

template<class TypeTag , bool enableTempV = getPropValue<TypeTag, Properties::EnergyModuleType>() == EnergyModules::SequentialImplicitThermal>

template<class LhsEval >

void Opm::TemperatureModel< TypeTag, enableTempV >::computeStorageTerm	(	unsigned	globI,
		LhsEval &	storage
	)

inlineprotected

References Opm::TemperatureModel< TypeTag, enableTempV >::intQuants_, Opm::TemperatureModel< TypeTag, enableTempV >::scalingFactor_, and Opm::TemperatureModel< TypeTag, enableTempV >::simulator_.

Referenced by Opm::TemperatureModel< TypeTag, enableTempV >::assembleEquations(), and Opm::TemperatureModel< TypeTag, enableTempV >::updateStorageCache().

◆ computeWellTemperature()

template<class TypeTag , bool enableTempV = getPropValue<TypeTag, Properties::EnergyModuleType>() == EnergyModules::SequentialImplicitThermal>

template<class Well , class SingleWellState >

void Opm::TemperatureModel< TypeTag, enableTempV >::computeWellTemperature	(	const Well &	well,
		SingleWellState &	ws
	)

inlineprotected

References Opm::TemperatureModel< TypeTag, enableTempV >::intQuants_, Opm::SingleWellState< Scalar, IndexTraits >::perf_data, Opm::TemperatureModel< TypeTag, enableTempV >::simulator_, Opm::SingleWellState< Scalar, IndexTraits >::status, and Opm::SingleWellState< Scalar, IndexTraits >::temperature.

Referenced by Opm::TemperatureModel< TypeTag, enableTempV >::endTimeStep().

◆ converged()

template<class TypeTag , bool enableTempV = getPropValue<TypeTag, Properties::EnergyModuleType>() == EnergyModules::SequentialImplicitThermal>

bool Opm::TemperatureModel< TypeTag, enableTempV >::converged ( const int iter )

inlineprotected

References Opm::GenericTemperatureModel< GetPropType< TypeTag, Properties::Grid >, GetPropType< TypeTag, Properties::GridView >, GetPropType< TypeTag, Properties::DofMapper >, GetPropType< TypeTag, Properties::Stencil >, GetPropType< TypeTag, Properties::FluidSystem >, GetPropType< TypeTag, Properties::Scalar > >::energyVector_, Opm::Parameters::Get(), and Opm::TemperatureModel< TypeTag, enableTempV >::simulator_.

Referenced by Opm::TemperatureModel< TypeTag, enableTempV >::advanceTemperatureFields().

◆ deserialize()

template<class TypeTag , bool enableTempV = getPropValue<TypeTag, Properties::EnergyModuleType>() == EnergyModules::SequentialImplicitThermal>

template<class Restarter >

void Opm::TemperatureModel< TypeTag, enableTempV >::deserialize ( Restarter & )

inline

This method restores the complete state of the temperature from disk.

It is the inverse of the serialize() method.

◆ doInit()

void Opm::GenericTemperatureModel< GetPropType< TypeTag, Properties::Grid > , GetPropType< TypeTag, Properties::GridView > , GetPropType< TypeTag, Properties::DofMapper > , GetPropType< TypeTag, Properties::Stencil > , GetPropType< TypeTag, Properties::FluidSystem > , GetPropType< TypeTag, Properties::Scalar > >::doInit ( std::size_t numGridDof )

protectedinherited

Initialize all internal data structures needed by the temperature module.

◆ doTemp()

bool Opm::GenericTemperatureModel< GetPropType< TypeTag, Properties::Grid > , GetPropType< TypeTag, Properties::GridView > , GetPropType< TypeTag, Properties::DofMapper > , GetPropType< TypeTag, Properties::Stencil > , GetPropType< TypeTag, Properties::FluidSystem > , GetPropType< TypeTag, Properties::Scalar > >::doTemp ( )

inlineinherited

◆ endTimeStep()

template<class TypeTag , bool enableTempV = getPropValue<TypeTag, Properties::EnergyModuleType>() == EnergyModules::SequentialImplicitThermal>

void Opm::TemperatureModel< TypeTag, enableTempV >::endTimeStep ( WellStateType & wellState )

inline

Informs the temperature model that a time step has just been finished.

◆ init()

template<class TypeTag , bool enableTempV = getPropValue<TypeTag, Properties::EnergyModuleType>() == EnergyModules::SequentialImplicitThermal>

void Opm::TemperatureModel< TypeTag, enableTempV >::init ( )

inline

◆ linearSolve_()

bool Opm::GenericTemperatureModel< GetPropType< TypeTag, Properties::Grid > , GetPropType< TypeTag, Properties::GridView > , GetPropType< TypeTag, Properties::DofMapper > , GetPropType< TypeTag, Properties::Stencil > , GetPropType< TypeTag, Properties::FluidSystem > , GetPropType< TypeTag, Properties::Scalar > >::linearSolve_	(	const EnergyMatrix &	M,
		EnergyVector &	x,
		EnergyVector &	b
	)

protectedinherited

◆ serialize()

template<class TypeTag , bool enableTempV = getPropValue<TypeTag, Properties::EnergyModuleType>() == EnergyModules::SequentialImplicitThermal>

template<class Restarter >

void Opm::TemperatureModel< TypeTag, enableTempV >::serialize ( Restarter & )

inline

This method writes the complete state of all temperature to the hard disk.

◆ solveAndUpdate()

template<class TypeTag , bool enableTempV = getPropValue<TypeTag, Properties::EnergyModuleType>() == EnergyModules::SequentialImplicitThermal>

void Opm::TemperatureModel< TypeTag, enableTempV >::solveAndUpdate ( )

inlineprotected

Referenced by Opm::TemperatureModel< TypeTag, enableTempV >::advanceTemperatureFields().

◆ temperature()

const GetPropType< TypeTag, Properties::Scalar > Opm::GenericTemperatureModel< GetPropType< TypeTag, Properties::Grid > , GetPropType< TypeTag, Properties::GridView > , GetPropType< TypeTag, Properties::DofMapper > , GetPropType< TypeTag, Properties::Stencil > , GetPropType< TypeTag, Properties::FluidSystem > , GetPropType< TypeTag, Properties::Scalar > >::temperature ( size_t globalIdx ) const
