Opm::VFPInjProperties< Scalar > Class Template Reference

#include <VFPInjProperties.hpp>

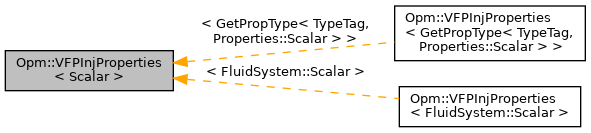

Inheritance diagram for Opm::VFPInjProperties< Scalar >:

Public Member Functions
void	addTable (const VFPInjTable &new_table)
template<class EvalWell >
EvalWell	bhp (const int table_id, const EvalWell &aqua, const EvalWell &liquid, const EvalWell &vapour, const Scalar thp) const
const VFPInjTable &	getTable (const int table_id) const
bool	hasTable (const int table_id) const
bool	empty () const
Scalar	bhp (const int table_id, const Scalar aqua, const Scalar liquid, const Scalar vapour, const Scalar thp) const
Scalar	thp (const int table_id, const Scalar aqua, const Scalar liquid, const Scalar vapour, const Scalar bhp) const

Protected Attributes
std::map< int, std::reference_wrapper< const VFPInjTable > >	m_tables

Member Function Documentation

addTable()

template<class Scalar >

void Opm::VFPInjProperties< Scalar >::addTable

(

const VFPInjTable &

new_table

)

Takes no ownership of data.

bhp() [1/2]

template<class Scalar >

template<class EvalWell >

EvalWell Opm::VFPInjProperties< Scalar >::bhp	(	const int	table_id,
		const EvalWell &	aqua,
		const EvalWell &	liquid,
		const EvalWell &	vapour,
		const Scalar	thp
	)		const

Linear interpolation of bhp as a function of the input parameters given as Evaluation Each entry corresponds typically to one well.

Parameters

table_id	Table number to use. A negative entry (e.g., -1) will indicate that no table is used, and the corresponding BHP will be calculated as a constant -1e100.
aqua	Water phase
liquid	Oil phase
vapour	Gas phase
thp	Tubing head pressure

Returns

The bottom hole pressure, interpolated/extrapolated linearly using the above parameters from the values in the input table, for each entry in the input ADB objects.

Referenced by Opm::NetworkVfpPressureCalculator< Scalar, IndexTraits, VFPInjProperties< Scalar > >::compute().

bhp() [2/2]

template<class Scalar >

Scalar Opm::VFPInjProperties< Scalar >::bhp	(	const int	table_id,
		const Scalar	aqua,
		const Scalar	liquid,
		const Scalar	vapour,
		const Scalar	thp
	)		const

Linear interpolation of bhp as a function of the input parameters

Parameters

table_id	Table number to use
aqua	Water phase
liquid	Oil phase
vapour	Gas phase
thp	Tubing head pressure

Returns

The bottom hole pressure, interpolated/extrapolated linearly using the above parameters from the values in the input table.

empty()

template<class Scalar >

bool Opm::VFPInjProperties< Scalar >::empty ( ) const

inline

Returns true if no vfp tables are in the current map

References Opm::VFPInjProperties< Scalar >::m_tables.

getTable()

template<class Scalar >

const VFPInjTable & Opm::VFPInjProperties< Scalar >::getTable

(

const int

table_id

)

const

Returns the table associated with the ID, or throws an exception if the table does not exist

Referenced by Opm::NetworkVfpPressureCalculator< Scalar, IndexTraits, VFPInjProperties< Scalar > >::compute().

hasTable()

template<class Scalar >

bool Opm::VFPInjProperties< Scalar >::hasTable

(

const int

table_id

)

const

Check whether there is table associated with ID

thp()

template<class Scalar >

Scalar Opm::VFPInjProperties< Scalar >::thp	(	const int	table_id,
		const Scalar	aqua,
		const Scalar	liquid,
		const Scalar	vapour,
		const Scalar	bhp
	)		const

Linear interpolation of thp as a function of the input parameters

Parameters

table_id	Table number to use
aqua	Water phase
liquid	Oil phase
vapour	Gas phase
bhp	Bottom hole pressure

Returns

The tubing hole pressure, interpolated/extrapolated linearly using the above parameters from the values in the input table.

Member Data Documentation

m_tables

template<class Scalar >

std::map<int, std::reference_wrapper<const VFPInjTable> > Opm::VFPInjProperties< Scalar >::m_tables

protected

Referenced by Opm::VFPInjProperties< Scalar >::empty().

---

The documentation for this class was generated from the following files:

• BlackoilWellModelNetworkGeneric.hpp
• VFPInjProperties.hpp
