Opm::VFPProdProperties< Scalar > Class Template Reference

#include <VFPProdProperties.hpp>

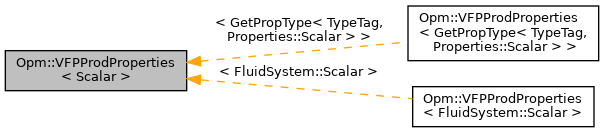

Inheritance diagram for Opm::VFPProdProperties< Scalar >:

Public Member Functions
void	addTable (const VFPProdTable &new_table)
template<class EvalWell >
EvalWell	bhp (const int table_id, const EvalWell &aqua, const EvalWell &liquid, const EvalWell &vapour, const Scalar thp, const Scalar alq, const Scalar explicit_wfr, const Scalar explicit_gfr, const bool use_expvfp) const
Scalar	bhp (const int table_id, const Scalar aqua, const Scalar liquid, const Scalar vapour, const Scalar thp, const Scalar alq, const Scalar explicit_wfr, const Scalar explicit_gfr, const bool use_expvfp) const
Scalar	thp (const int table_id, const Scalar aqua, const Scalar liquid, const Scalar vapour, const Scalar bhp, const Scalar alq, const Scalar explicit_wfr, const Scalar explicit_gfr, const bool use_expvfp) const
const VFPProdTable &	getTable (const int table_id) const
bool	hasTable (const int table_id) const
bool	empty () const
Scalar	minimumBHP (const int table_id, const Scalar thp, const Scalar wfr, const Scalar gfr, const Scalar alq) const

Protected Member Functions
std::vector< Scalar >	bhpwithflo (const std::vector< Scalar > &flos, const int table_id, const Scalar wfr, const Scalar gfr, const Scalar thp, const Scalar alq, const Scalar dp) const

Protected Attributes
std::map< int, std::reference_wrapper< const VFPProdTable > >	m_tables

Detailed Description

template<class Scalar>
class Opm::VFPProdProperties< Scalar >

Class which linearly interpolates BHP as a function of rate, tubing head pressure, water fraction, gas fraction, and artificial lift for production VFP tables, and similarly the BHP as a function of the rate and tubing head pressure.

Member Function Documentation

addTable()

template<class Scalar >

void Opm::VFPProdProperties< Scalar >::addTable

(

const VFPProdTable &

new_table

)

Takes no ownership of data.

bhp() [1/2]

template<class Scalar >

template<class EvalWell >

EvalWell Opm::VFPProdProperties< Scalar >::bhp	(	const int	table_id,
		const EvalWell &	aqua,
		const EvalWell &	liquid,
		const EvalWell &	vapour,
		const Scalar	thp,
		const Scalar	alq,
		const Scalar	explicit_wfr,
		const Scalar	explicit_gfr,
		const bool	use_expvfp
	)		const

Linear interpolation of bhp as a function of the input parameters given as Evalutions Each entry corresponds typically to one well.

Parameters

table_id	Table number to use. A negative entry (e.g., -1) will indicate that no table is used, and the corresponding BHP will be calculated as a constant -1e100.
aqua	Water phase
liquid	Oil phase
vapour	Gas phase
thp	Tubing head pressure
alq	Artificial lift or other parameter
explicit_wfr	Explicit wfr
explicit_gfr	Explicit gfr
use_expvfp	True to use explicit VFP calculations

Returns

The bottom hole pressure, interpolated/extrapolated linearly using the above parameters from the values in the input table, for each entry in the input ADB objects.

bhp() [2/2]

template<class Scalar >

Scalar Opm::VFPProdProperties< Scalar >::bhp	(	const int	table_id,
		const Scalar	aqua,
		const Scalar	liquid,
		const Scalar	vapour,
		const Scalar	thp,
		const Scalar	alq,
		const Scalar	explicit_wfr,
		const Scalar	explicit_gfr,
		const bool	use_expvfp
	)		const

Linear interpolation of bhp as a function of the input parameters

Parameters

table_id	Table number to use
aqua	Water phase
liquid	Oil phase
vapour	Gas phase
thp	Tubing head pressure
alq	Artificial lift or other parameter
explicit_wfr	Explicit wfr
explicit_gfr	Explicit gfr
use_expvfp	True to use explicit VFP calculations

Returns

The bottom hole pressure, interpolated/extrapolated linearly using the above parameters from the values in the input table.

bhpwithflo()

template<class Scalar >

std::vector< Scalar > Opm::VFPProdProperties< Scalar >::bhpwithflo ( const std::vector< Scalar > &  flos, const int  table_id, const Scalar  wfr, const Scalar  gfr, const Scalar  thp, const Scalar  alq, const Scalar  dp  ) const

protected

empty()

template<class Scalar >

bool Opm::VFPProdProperties< Scalar >::empty ( ) const

inline

Returns true if no vfp tables are in the current map

References Opm::VFPProdProperties< Scalar >::m_tables.

getTable()

template<class Scalar >

const VFPProdTable & Opm::VFPProdProperties< Scalar >::getTable

(

const int

table_id

)

const

Returns the table associated with the ID, or throws an exception if the table does not exist

hasTable()

template<class Scalar >

bool Opm::VFPProdProperties< Scalar >::hasTable

(

const int

table_id

)

const

Check whether there is table associated with ID

minimumBHP()

template<class Scalar >

Scalar Opm::VFPProdProperties< Scalar >::minimumBHP	(	const int	table_id,
		const Scalar	thp,
		const Scalar	wfr,
		const Scalar	gfr,
		const Scalar	alq
	)		const

Returns minimum bhp for given thp, wfr, gfr and alq

thp()

template<class Scalar >

Scalar Opm::VFPProdProperties< Scalar >::thp	(	const int	table_id,
		const Scalar	aqua,
		const Scalar	liquid,
		const Scalar	vapour,
		const Scalar	bhp,
		const Scalar	alq,
		const Scalar	explicit_wfr,
		const Scalar	explicit_gfr,
		const bool	use_expvfp
	)		const

Linear interpolation of thp as a function of the input parameters

Parameters

table_id	Table number to use
aqua	Water phase
liquid	Oil phase
vapour	Gas phase
bhp	Bottom hole pressure
alq	Artificial lift or other parameter
explicit_wfr	Explicit wfr
explicit_gfr	Explicit gfr
use_expvfp	True to use explicit VFP calculations

Returns

The tubing hole pressure, interpolated/extrapolated linearly using the above parameters from the values in the input table.

Member Data Documentation

m_tables

template<class Scalar >

std::map<int, std::reference_wrapper<const VFPProdTable> > Opm::VFPProdProperties< Scalar >::m_tables

protected

Referenced by Opm::VFPProdProperties< Scalar >::empty().

---

The documentation for this class was generated from the following file:

• VFPProdProperties.hpp
