Opm::NcpIndices< TypeTag, PVOffset > Struct Template Reference

The primary variable and equation indices for the compositional multi-phase NCP model. More...

#include <ncpindices.hh>

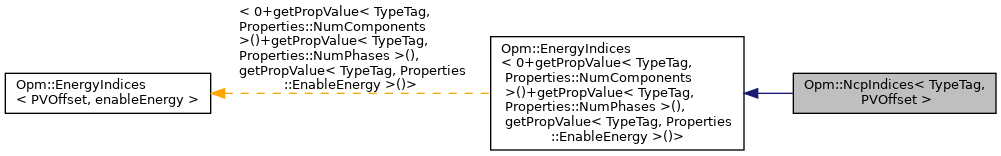

Inheritance diagram for Opm::NcpIndices< TypeTag, PVOffset >:

Static Public Attributes
static constexpr int	numEq = numComponents + numPhases + EnergyIndices::numEq_
	The number of primary variables / equations. More...
static constexpr int	conti0EqIdx = PVOffset
	Index of the equation for the continuity of mass of the first component. More...
static constexpr int	ncp0EqIdx = conti0EqIdx + numComponents
	Index of the first phase NCP equation. More...
static constexpr int	fugacity0Idx = PVOffset
	Index of the primary variable for the fugacity of the first component. More...
static constexpr int	saturation0Idx = fugacity0Idx + numComponents
	Index of the saturation of the first phase in a vector of primary variables. More...
static constexpr int	pressure0Idx = saturation0Idx + numPhases - 1
	Index of the first phase' pressure in a vector of primary variables. More...

Detailed Description

template<class TypeTag, int PVOffset = 0>
struct Opm::NcpIndices< TypeTag, PVOffset >

The primary variable and equation indices for the compositional multi-phase NCP model.

Member Data Documentation

conti0EqIdx

template<class TypeTag , int PVOffset = 0>

constexpr int Opm::NcpIndices< TypeTag, PVOffset >::conti0EqIdx = PVOffset

staticconstexpr

Index of the equation for the continuity of mass of the first component.

numComponents equations follow...

fugacity0Idx

template<class TypeTag , int PVOffset = 0>

constexpr int Opm::NcpIndices< TypeTag, PVOffset >::fugacity0Idx = PVOffset

staticconstexpr

Index of the primary variable for the fugacity of the first component.

numComponents primary variables follow...

ncp0EqIdx

template<class TypeTag , int PVOffset = 0>

constexpr int Opm::NcpIndices< TypeTag, PVOffset >::ncp0EqIdx = conti0EqIdx + numComponents

staticconstexpr

Index of the first phase NCP equation.

The index for the remaining phases are consecutive.

numEq

template<class TypeTag , int PVOffset = 0>

constexpr int Opm::NcpIndices< TypeTag, PVOffset >::numEq = numComponents + numPhases + EnergyIndices::numEq_

staticconstexpr

The number of primary variables / equations.

pressure0Idx

template<class TypeTag , int PVOffset = 0>

constexpr int Opm::NcpIndices< TypeTag, PVOffset >::pressure0Idx = saturation0Idx + numPhases - 1

staticconstexpr

Index of the first phase' pressure in a vector of primary variables.

saturation0Idx

template<class TypeTag , int PVOffset = 0>

constexpr int Opm::NcpIndices< TypeTag, PVOffset >::saturation0Idx = fugacity0Idx + numComponents

staticconstexpr

Index of the saturation of the first phase in a vector of primary variables.

The following (numPhases - 1) primary variables represent the saturations for the phases [1, ..., numPhases - 1]

---

The documentation for this struct was generated from the following file:

• ncpindices.hh
