Opm::PerforationData< Scalar > Struct Template Reference

Static data associated with a well perforation. More...

#include <PerforationData.hpp>

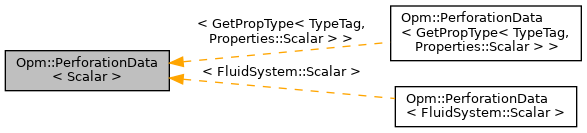

Inheritance diagram for Opm::PerforationData< Scalar >:

Public Member Functions
bool	operator== (const PerforationData &) const
template<class Serializer >
void	serializeOp (Serializer &serializer)

Static Public Member Functions
static PerforationData	serializationTestObject ()

Public Attributes
int	cell_index {}
Scalar	connection_transmissibility_factor {}
Scalar	connection_d_factor {}
int	satnum_id {}
std::size_t	ecl_index {}
	The original index of the perforation in ECL Schedule. More...
int	grid_id {}
	Grid identity for this perforation: 0 = global grid, > 0 = numeric LGR level (refined grid in CARFIN declaration order). More...
std::size_t	global_index {}
	Linearised Cartesian cell index relative to the cell's own grid origin. For grid_id == 0 this is the global-grid Cartesian index; for grid_id > 0 this is the LGR-local Cartesian index. More...

Detailed Description

template<class Scalar>
struct Opm::PerforationData< Scalar >

Static data associated with a well perforation.

Member Function Documentation

operator==()

template<class Scalar >

bool Opm::PerforationData< Scalar >::operator==

(

const PerforationData< Scalar > &

)

const

serializationTestObject()

template<class Scalar >

static PerforationData Opm::PerforationData< Scalar >::serializationTestObject ( )

static

serializeOp()

template<class Scalar >

template<class Serializer >

void Opm::PerforationData< Scalar >::serializeOp ( Serializer &  serializer )

inline

References Opm::PerforationData< Scalar >::cell_index, Opm::PerforationData< Scalar >::connection_d_factor, Opm::PerforationData< Scalar >::connection_transmissibility_factor, Opm::PerforationData< Scalar >::ecl_index, Opm::PerforationData< Scalar >::global_index, Opm::PerforationData< Scalar >::grid_id, and Opm::PerforationData< Scalar >::satnum_id.

Member Data Documentation

cell_index

template<class Scalar >

int Opm::PerforationData< Scalar >::cell_index {}

Referenced by Opm::PerforationData< Scalar >::serializeOp().

connection_d_factor

template<class Scalar >

Scalar Opm::PerforationData< Scalar >::connection_d_factor {}

Referenced by Opm::PerforationData< Scalar >::serializeOp().

connection_transmissibility_factor

template<class Scalar >

Scalar Opm::PerforationData< Scalar >::connection_transmissibility_factor {}

Referenced by Opm::PerforationData< Scalar >::serializeOp().

ecl_index

template<class Scalar >

std::size_t Opm::PerforationData< Scalar >::ecl_index {}

The original index of the perforation in ECL Schedule.

Referenced by Opm::PerforationData< Scalar >::serializeOp().

global_index

template<class Scalar >

std::size_t Opm::PerforationData< Scalar >::global_index {}

Linearised Cartesian cell index relative to the cell's own grid origin. For grid_id == 0 this is the global-grid Cartesian index; for grid_id > 0 this is the LGR-local Cartesian index.

Together with grid_id, the pair (grid_id, global_index) uniquely identifies any cell in the deck – including refined siblings under a common coarse parent, which would otherwise alias if identified via globalCellIdxMap[active_idx] alone (which returns the level-0 ancestor's Cartesian, shared by all siblings).

Referenced by Opm::PerforationData< Scalar >::serializeOp().

grid_id

template<class Scalar >

int Opm::PerforationData< Scalar >::grid_id {}

Grid identity for this perforation: 0 = global grid, > 0 = numeric LGR level (refined grid in CARFIN declaration order).

Referenced by Opm::PerforationData< Scalar >::serializeOp().

satnum_id

template<class Scalar >

int Opm::PerforationData< Scalar >::satnum_id {}

Referenced by Opm::PerforationData< Scalar >::serializeOp().

---

The documentation for this struct was generated from the following files:

• BlackoilWellModelRestart.hpp
• PerforationData.hpp
