Class for handling the gaslift in the blackoil well model. More...

#include <BlackoilWellModelGasLift.hpp>

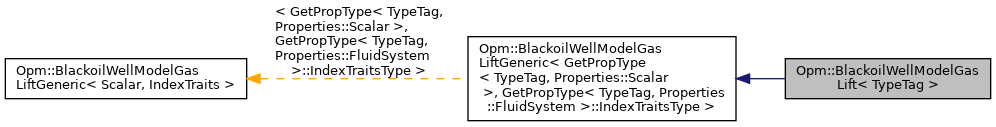

Inheritance diagram for Opm::BlackoilWellModelGasLift< TypeTag >:

Public Types
using	Scalar = GetPropType< TypeTag, Properties::Scalar >

using	FluidSystem = GetPropType< TypeTag, Properties::FluidSystem >

using	IndexTraits = typename FluidSystem::IndexTraitsType

using	Base = BlackoilWellModelGasLiftGeneric< Scalar, IndexTraits >

using	GLiftEclWells = typename GasLiftGroupInfo< Scalar, IndexTraits >::GLiftEclWells

using	GLiftOptWells = typename Base::GLiftOptWells

using	GLiftProdWells = typename Base::GLiftProdWells

using	GLiftSyncGroups = typename GasLiftSingleWellGeneric< Scalar, IndexTraits >::GLiftSyncGroups

using	GLiftWellStateMap = typename Base::GLiftWellStateMap

using	Simulator = GetPropType< TypeTag, Properties::Simulator >

using	WellInterfacePtr = std::shared_ptr< WellInterface< TypeTag > >

using	WellStateType = WellState< Scalar, IndexTraits >

Public Member Functions
	BlackoilWellModelGasLift (bool terminal_output)

bool	maybeDoGasLiftOptimize (const Simulator &simulator, const std::vector< WellInterfacePtr > &well_container, const std::map< std::string, Scalar > &node_pressures, const bool updatePotentials, WellStateType &wellState, GroupState< Scalar > &groupState, DeferredLogger &deferred_logger)

void	gliftDebug (const std::string &msg, DeferredLogger &deferred_logger) const

bool	terminalOutput () const

void	serializeOp (Serializer &serializer)

bool	operator== (const BlackoilWellModelGasLiftGeneric &that) const

Static Public Member Functions
static void	initGliftEclWellMap (const std::vector< WellInterfacePtr > &well_container, GLiftEclWells &ecl_well_map)

Static Public Attributes
static constexpr bool	glift_debug

Protected Member Functions
void	gliftDebugShowALQ (const std::vector< WellInterfaceGeneric< GetPropType< TypeTag, Properties::Scalar >, GetPropType< TypeTag, Properties::FluidSystem >::IndexTraitsType > * > &well_container, const WellState< GetPropType< TypeTag, Properties::Scalar >, GetPropType< TypeTag, Properties::FluidSystem >::IndexTraitsType > &wellState, DeferredLogger &deferred_logger)

void	gasLiftOptimizationStage2 (const Parallel::Communication &comm, const Schedule &schedule, const SummaryState &summaryState, WellState< GetPropType< TypeTag, Properties::Scalar >, GetPropType< TypeTag, Properties::FluidSystem >::IndexTraitsType > &wellState, GroupState< GetPropType< TypeTag, Properties::Scalar > > &groupState, GLiftProdWells &prod_wells, GLiftOptWells &glift_wells, GasLiftGroupInfo< GetPropType< TypeTag, Properties::Scalar >, GetPropType< TypeTag, Properties::FluidSystem >::IndexTraitsType > &group_info, GLiftWellStateMap &map, const int episodeIndex, DeferredLogger &deferred_logger)

Protected Attributes
bool	terminal_output_

double	last_glift_opt_time_

Detailed Description

template<typename TypeTag>
class Opm::BlackoilWellModelGasLift< TypeTag >

Class for handling the gaslift in the blackoil well model.

Member Typedef Documentation

◆ Base

template<typename TypeTag >

using Opm::BlackoilWellModelGasLift< TypeTag >::Base = BlackoilWellModelGasLiftGeneric<Scalar, IndexTraits>

◆ FluidSystem

template<typename TypeTag >

using Opm::BlackoilWellModelGasLift< TypeTag >::FluidSystem = GetPropType<TypeTag, Properties::FluidSystem>

◆ GLiftEclWells

template<typename TypeTag >

using Opm::BlackoilWellModelGasLift< TypeTag >::GLiftEclWells = typename GasLiftGroupInfo<Scalar, IndexTraits>::GLiftEclWells

◆ GLiftOptWells

template<typename TypeTag >

using Opm::BlackoilWellModelGasLift< TypeTag >::GLiftOptWells = typename Base::GLiftOptWells

◆ GLiftProdWells

template<typename TypeTag >

using Opm::BlackoilWellModelGasLift< TypeTag >::GLiftProdWells = typename Base::GLiftProdWells

◆ GLiftSyncGroups

template<typename TypeTag >

using Opm::BlackoilWellModelGasLift< TypeTag >::GLiftSyncGroups = typename GasLiftSingleWellGeneric<Scalar, IndexTraits>::GLiftSyncGroups

◆ GLiftWellStateMap

template<typename TypeTag >

using Opm::BlackoilWellModelGasLift< TypeTag >::GLiftWellStateMap = typename Base::GLiftWellStateMap

◆ IndexTraits

template<typename TypeTag >

using Opm::BlackoilWellModelGasLift< TypeTag >::IndexTraits = typename FluidSystem::IndexTraitsType

◆ Scalar

template<typename TypeTag >

using Opm::BlackoilWellModelGasLift< TypeTag >::Scalar = GetPropType<TypeTag, Properties::Scalar>

◆ Simulator

template<typename TypeTag >

using Opm::BlackoilWellModelGasLift< TypeTag >::Simulator = GetPropType<TypeTag, Properties::Simulator>

◆ WellInterfacePtr

template<typename TypeTag >

using Opm::BlackoilWellModelGasLift< TypeTag >::WellInterfacePtr = std::shared_ptr<WellInterface<TypeTag> >

◆ WellStateType

template<typename TypeTag >

using Opm::BlackoilWellModelGasLift< TypeTag >::WellStateType = WellState<Scalar, IndexTraits>

Constructor & Destructor Documentation

◆ BlackoilWellModelGasLift()

template<typename TypeTag >

Opm::BlackoilWellModelGasLift< TypeTag >::BlackoilWellModelGasLift ( bool terminal_output )

inlineexplicit

Member Function Documentation

◆ gasLiftOptimizationStage2()

void Opm::BlackoilWellModelGasLiftGeneric< GetPropType< TypeTag, Properties::Scalar > , GetPropType< TypeTag, Properties::FluidSystem >::IndexTraitsType >::gasLiftOptimizationStage2	(	const Parallel::Communication &	comm,
		const Schedule &	schedule,
		const SummaryState &	summaryState,
		WellState< GetPropType< TypeTag, Properties::Scalar > , GetPropType< TypeTag, Properties::FluidSystem >::IndexTraitsType > &	wellState,
		GroupState< GetPropType< TypeTag, Properties::Scalar > > &	groupState,
		GLiftProdWells &	prod_wells,
		GLiftOptWells &	glift_wells,
		GasLiftGroupInfo< GetPropType< TypeTag, Properties::Scalar > , GetPropType< TypeTag, Properties::FluidSystem >::IndexTraitsType > &	group_info,
		GLiftWellStateMap &	map,
		const int	episodeIndex,
		DeferredLogger &	deferred_logger
	)

protectedinherited

◆ gliftDebug()

void Opm::BlackoilWellModelGasLiftGeneric< GetPropType< TypeTag, Properties::Scalar > , GetPropType< TypeTag, Properties::FluidSystem >::IndexTraitsType >::gliftDebug	(	const std::string &	msg,
		DeferredLogger &	deferred_logger
	)		const

inherited

◆ gliftDebugShowALQ()

void Opm::BlackoilWellModelGasLiftGeneric< GetPropType< TypeTag, Properties::Scalar > , GetPropType< TypeTag, Properties::FluidSystem >::IndexTraitsType >::gliftDebugShowALQ	(	const std::vector< WellInterfaceGeneric< GetPropType< TypeTag, Properties::Scalar > , GetPropType< TypeTag, Properties::FluidSystem >::IndexTraitsType > * > &	well_container,
		const WellState< GetPropType< TypeTag, Properties::Scalar > , GetPropType< TypeTag, Properties::FluidSystem >::IndexTraitsType > &	wellState,
		DeferredLogger &	deferred_logger
	)

protectedinherited

◆ initGliftEclWellMap()

template<typename TypeTag >

void Opm::BlackoilWellModelGasLift< TypeTag >::initGliftEclWellMap	(	const std::vector< WellInterfacePtr > &	well_container,
		GLiftEclWells &	ecl_well_map
	)

static

◆ maybeDoGasLiftOptimize()

template<typename TypeTag >

bool Opm::BlackoilWellModelGasLift< TypeTag >::maybeDoGasLiftOptimize	(	const Simulator &	simulator,
		const std::vector< WellInterfacePtr > &	well_container,
		const std::map< std::string, Scalar > &	node_pressures,
		const bool	updatePotentials,
		WellStateType &	wellState,
		GroupState< Scalar > &	groupState,
		DeferredLogger &	deferred_logger
	)

◆ operator==()

bool Opm::BlackoilWellModelGasLiftGeneric< GetPropType< TypeTag, Properties::Scalar > , GetPropType< TypeTag, Properties::FluidSystem >::IndexTraitsType >::operator== ( const BlackoilWellModelGasLiftGeneric< GetPropType< TypeTag, Properties::Scalar >, GetPropType< TypeTag, Properties::FluidSystem >::IndexTraitsType > & that ) const

inlineinherited

◆ serializeOp()

void Opm::BlackoilWellModelGasLiftGeneric< GetPropType< TypeTag, Properties::Scalar > , GetPropType< TypeTag, Properties::FluidSystem >::IndexTraitsType >::serializeOp ( Serializer & serializer )

inlineinherited

◆ terminalOutput()

bool Opm::BlackoilWellModelGasLiftGeneric< GetPropType< TypeTag, Properties::Scalar > , GetPropType< TypeTag, Properties::FluidSystem >::IndexTraitsType >::terminalOutput ( ) const

inlineinherited

Member Data Documentation

◆ glift_debug

template<typename TypeTag >

constexpr bool Opm::BlackoilWellModelGasLiftGeneric< Scalar, IndexTraits >::glift_debug

staticconstexpr

◆ last_glift_opt_time_

double Opm::BlackoilWellModelGasLiftGeneric< GetPropType< TypeTag, Properties::Scalar > , GetPropType< TypeTag, Properties::FluidSystem >::IndexTraitsType >::last_glift_opt_time_

protectedinherited

◆ terminal_output_

bool Opm::BlackoilWellModelGasLiftGeneric< GetPropType< TypeTag, Properties::Scalar > , GetPropType< TypeTag, Properties::FluidSystem >::IndexTraitsType >::terminal_output_

protectedinherited
