Opm::MultisegmentWellSegments< FluidSystem, Indices > Class Template Reference

#include <MultisegmentWellSegments.hpp>

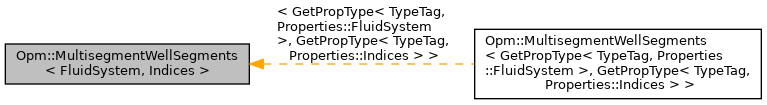

Inheritance diagram for Opm::MultisegmentWellSegments< FluidSystem, Indices >:

Classes
struct	SegmentPvt
	The quantities taken from a segment fluid state. More...

Public Member Functions
	MultisegmentWellSegments (const int numSegments, const ParallelWellInfo< Scalar > &parallel_well_info, WellInterfaceGeneric< Scalar, IndexTraits > &well)
void	computeFluidProperties (const std::vector< SegmentPvt > &segment_pvt, const PrimaryVariables &primary_variables, DeferredLogger &deferred_logger)
	Compute per-segment fluid properties from the pre-computed segment PVT values. More...
EvalWell	computeVolumeRatio (const int seg, const SegmentPvt &pvt, const PrimaryVariables &primary_variables, DeferredLogger &deferred_logger) const
	Volume ratio of a segment from its PVT values and composition. More...
void	updateUpwindingSegments (const PrimaryVariables &primary_variables)
	Update upwinding segments. More...
EvalWell	getHydroPressureLoss (const int seg, const int seg_side) const
Scalar	getPressureDiffSegLocalPerf (const int seg, const int local_perf_index) const
	Pressure difference between segment and perforation. More...
EvalWell	getFrictionPressureLoss (const int seg, const bool extra_reverse_flow_derivatives=false) const
EvalWell	pressureDropSpiralICD (const int seg, const bool extra_reverse_flow_derivatives=false) const
EvalWell	pressureDropAutoICD (const int seg, const UnitSystem &unit_system, const bool extra_reverse_flow_derivatives=false) const
EvalWell	pressureDropValve (const int seg, const SummaryState &st, const bool extra_reverse_flow_derivatives=false) const
EvalWell	accelerationPressureLossContribution (const int seg, const Scalar area, const bool extra_reverse_flow_derivatives=false) const
const std::vector< std::vector< int > > &	inlets () const
const std::vector< int > &	inlets (const int seg) const
const std::vector< std::vector< int > > &	perforations () const
int	upwinding_segment (const int seg) const
Scalar	getRefDensity () const
const EvalWell &	density (const int seg) const
const EvalWell &	volumeRatio (const int seg) const
	Segment volume ratio (reservoir volume per unit surface volume). More...
Scalar	local_perforation_depth_diff (const int local_perf_index) const
void	copyPhaseDensities (SegmentState< Scalar > &segSol) const

Constructor & Destructor Documentation

MultisegmentWellSegments()

template<typename FluidSystem , typename Indices >

Opm::MultisegmentWellSegments< FluidSystem, Indices >::MultisegmentWellSegments	(	const int	numSegments,
		const ParallelWellInfo< Scalar > &	parallel_well_info,
		WellInterfaceGeneric< Scalar, IndexTraits > &	well
	)

Member Function Documentation

accelerationPressureLossContribution()

template<typename FluidSystem , typename Indices >

EvalWell Opm::MultisegmentWellSegments< FluidSystem, Indices >::accelerationPressureLossContribution	(	const int	seg,
		const Scalar	area,
		const bool	extra_reverse_flow_derivatives = false
	)		const

computeFluidProperties()

template<typename FluidSystem , typename Indices >

void Opm::MultisegmentWellSegments< FluidSystem, Indices >::computeFluidProperties	(	const std::vector< SegmentPvt > &	segment_pvt,
		const PrimaryVariables &	primary_variables,
		DeferredLogger &	deferred_logger
	)

Compute per-segment fluid properties from the pre-computed segment PVT values.

Reuses the inverse formation volume factors and dissolution/vaporization ratios where applicable, and evaluates the remaining PVT properties. Also updates the cached segment volume ratios.

computeVolumeRatio()

template<typename FluidSystem , typename Indices >

EvalWell Opm::MultisegmentWellSegments< FluidSystem, Indices >::computeVolumeRatio	(	const int	seg,
		const SegmentPvt &	pvt,
		const PrimaryVariables &	primary_variables,
		DeferredLogger &	deferred_logger
	)		const

Volume ratio of a segment from its PVT values and composition.

copyPhaseDensities()

template<typename FluidSystem , typename Indices >

void Opm::MultisegmentWellSegments< FluidSystem, Indices >::copyPhaseDensities

(

SegmentState< Scalar > &

segSol

)

const

density()

template<typename FluidSystem , typename Indices >

const EvalWell & Opm::MultisegmentWellSegments< FluidSystem, Indices >::density ( const int  seg ) const

inline

getFrictionPressureLoss()

template<typename FluidSystem , typename Indices >

EvalWell Opm::MultisegmentWellSegments< FluidSystem, Indices >::getFrictionPressureLoss	(	const int	seg,
		const bool	extra_reverse_flow_derivatives = false
	)		const

getHydroPressureLoss()

template<typename FluidSystem , typename Indices >

EvalWell Opm::MultisegmentWellSegments< FluidSystem, Indices >::getHydroPressureLoss	(	const int	seg,
		const int	seg_side
	)		const

getPressureDiffSegLocalPerf()

template<typename FluidSystem , typename Indices >

Scalar Opm::MultisegmentWellSegments< FluidSystem, Indices >::getPressureDiffSegLocalPerf	(	const int	seg,
		const int	local_perf_index
	)		const

Pressure difference between segment and perforation.

getRefDensity()

template<typename FluidSystem , typename Indices >

Scalar Opm::MultisegmentWellSegments< FluidSystem, Indices >::getRefDensity ( ) const

inline

inlets() [1/2]

template<typename FluidSystem , typename Indices >

const std::vector< std::vector< int > > & Opm::MultisegmentWellSegments< FluidSystem, Indices >::inlets ( ) const

inline

inlets() [2/2]

template<typename FluidSystem , typename Indices >

const std::vector< int > & Opm::MultisegmentWellSegments< FluidSystem, Indices >::inlets ( const int  seg ) const

inline

local_perforation_depth_diff()

template<typename FluidSystem , typename Indices >

Scalar Opm::MultisegmentWellSegments< FluidSystem, Indices >::local_perforation_depth_diff ( const int  local_perf_index ) const

inline

perforations()

template<typename FluidSystem , typename Indices >

const std::vector< std::vector< int > > & Opm::MultisegmentWellSegments< FluidSystem, Indices >::perforations ( ) const

inline

pressureDropAutoICD()

template<typename FluidSystem , typename Indices >

EvalWell Opm::MultisegmentWellSegments< FluidSystem, Indices >::pressureDropAutoICD	(	const int	seg,
		const UnitSystem &	unit_system,
		const bool	extra_reverse_flow_derivatives = false
	)		const

pressureDropSpiralICD()

template<typename FluidSystem , typename Indices >

EvalWell Opm::MultisegmentWellSegments< FluidSystem, Indices >::pressureDropSpiralICD	(	const int	seg,
		const bool	extra_reverse_flow_derivatives = false
	)		const

pressureDropValve()

template<typename FluidSystem , typename Indices >

EvalWell Opm::MultisegmentWellSegments< FluidSystem, Indices >::pressureDropValve	(	const int	seg,
		const SummaryState &	st,
		const bool	extra_reverse_flow_derivatives = false
	)		const

updateUpwindingSegments()

template<typename FluidSystem , typename Indices >

void Opm::MultisegmentWellSegments< FluidSystem, Indices >::updateUpwindingSegments

(

const PrimaryVariables &

primary_variables

)

Update upwinding segments.

upwinding_segment()

template<typename FluidSystem , typename Indices >

int Opm::MultisegmentWellSegments< FluidSystem, Indices >::upwinding_segment ( const int  seg ) const

inline

volumeRatio()

template<typename FluidSystem , typename Indices >

const EvalWell & Opm::MultisegmentWellSegments< FluidSystem, Indices >::volumeRatio ( const int  seg ) const

inline

Segment volume ratio (reservoir volume per unit surface volume).

Set by computeFluidProperties(), like the other per-segment quantities.

---

The documentation for this class was generated from the following file:

• MultisegmentWellSegments.hpp
