Contains the intensive quantities of the flash-based compositional multi-phase model. More...

#include <flashintensivequantities.hh>

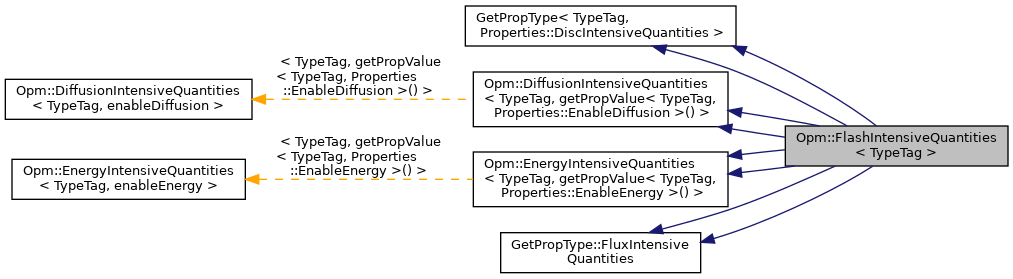

Inheritance diagram for Opm::FlashIntensiveQuantities< TypeTag >:

Public Types
using	FluidState = CompositionalFluidState< Evaluation, FluidSystem, enableEnergy >
	The type of the object returned by the fluidState() method. More...

using	FluidState = CompositionalFluidState< Evaluation, FluidSystem, enableEnergy >
	The type of the object returned by the fluidState() method. More...

Public Member Functions
	FlashIntensiveQuantities ()=default

	FlashIntensiveQuantities (const FlashIntensiveQuantities &other)=default

FlashIntensiveQuantities &	operator= (const FlashIntensiveQuantities &other)=default

void	update (const ElementContext &elemCtx, unsigned dofIdx, unsigned timeIdx)

const FluidState &	fluidState () const
	Returns the phase state for the control-volume. More...

const DimMatrix &	intrinsicPermeability () const
	Returns the intrinsic permeability tensor a degree of freedom. More...

const Evaluation &	relativePermeability (unsigned phaseIdx) const
	Returns the relative permeability of a given phase within the control volume. More...

const Evaluation &	mobility (unsigned phaseIdx) const
	Returns the effective mobility of a given phase within the control volume. More...

const Evaluation &	porosity () const
	Returns the average porosity within the control volume. More...

	FlashIntensiveQuantities ()=default

	FlashIntensiveQuantities (const FlashIntensiveQuantities &other)=default

FlashIntensiveQuantities &	operator= (const FlashIntensiveQuantities &other)=default

void	update (const ElementContext &elemCtx, unsigned dofIdx, unsigned timeIdx)

const FluidState &	fluidState () const
	Returns the phase state for the control-volume. More...

bool	hasHydrocarbon () const

Scalar	saturationForOutput (unsigned phaseIdx) const

bool	phaseIsPresent (unsigned phaseIdx) const
	Presence for reporting, independent of the numerical hydrocarbon floor. More...

const DimMatrix &	intrinsicPermeability () const
	Returns the intrinsic permeability tensor a degree of freedom. More...

const Evaluation &	relativePermeability (unsigned phaseIdx) const
	Returns the relative permeability of a given phase within the control volume. More...

const Evaluation &	mobility (unsigned phaseIdx) const
	Returns the effective mobility of a given phase within the control volume. More...

const Evaluation &	mobility (unsigned phaseIdx, FaceDir::DirEnum) const
	Mobility across a face. Directional relative permeabilities are not supported, so the face direction is not used. More...

Scalar	rockCompTransMultiplier () const
	Transmissibility multiplier from rock compaction. Compositional runs reject ROCKCOMP, so it is one. More...

const Evaluation &	porosity () const
	Returns the average porosity within the control volume. More...

Static Public Attributes
static constexpr Scalar	compositionFloor = 1.0e-8

static constexpr Scalar	hydrocarbonFloor = compositionFloor

Detailed Description

template<class TypeTag>
class Opm::FlashIntensiveQuantities< TypeTag >

Contains the intensive quantities of the flash-based compositional multi-phase model.

Contains the intensive quantities of the ptflash-based compositional multi-phase model.

Member Typedef Documentation

◆ FluidState [1/2]

template<class TypeTag >

using Opm::FlashIntensiveQuantities< TypeTag >::FluidState = CompositionalFluidState<Evaluation, FluidSystem, enableEnergy>

The type of the object returned by the fluidState() method.

◆ FluidState [2/2]

template<class TypeTag >

using Opm::FlashIntensiveQuantities< TypeTag >::FluidState = CompositionalFluidState<Evaluation, FluidSystem, enableEnergy>

The type of the object returned by the fluidState() method.

Constructor & Destructor Documentation

◆ FlashIntensiveQuantities() [1/4]

template<class TypeTag >

Opm::FlashIntensiveQuantities< TypeTag >::FlashIntensiveQuantities ( )

default

◆ FlashIntensiveQuantities() [2/4]

template<class TypeTag >

Opm::FlashIntensiveQuantities< TypeTag >::FlashIntensiveQuantities ( const FlashIntensiveQuantities< TypeTag > & other )

default

◆ FlashIntensiveQuantities() [3/4]

template<class TypeTag >

Opm::FlashIntensiveQuantities< TypeTag >::FlashIntensiveQuantities ( )

default

◆ FlashIntensiveQuantities() [4/4]

template<class TypeTag >

Opm::FlashIntensiveQuantities< TypeTag >::FlashIntensiveQuantities ( const FlashIntensiveQuantities< TypeTag > & other )

default

Member Function Documentation

◆ fluidState() [1/2]

template<class TypeTag >

const FluidState & Opm::FlashIntensiveQuantities< TypeTag >::fluidState ( ) const

inline

Returns the phase state for the control-volume.

◆ fluidState() [2/2]

template<class TypeTag >

const FluidState & Opm::FlashIntensiveQuantities< TypeTag >::fluidState ( ) const

inline

Returns the phase state for the control-volume.

◆ hasHydrocarbon()

template<class TypeTag >

bool Opm::FlashIntensiveQuantities< TypeTag >::hasHydrocarbon ( ) const

inline

Whether the primary variables leave any pore space for hydrocarbons, before the numerical floor is applied. Recomputed on every update.

◆ intrinsicPermeability() [1/2]

template<class TypeTag >

const DimMatrix & Opm::FlashIntensiveQuantities< TypeTag >::intrinsicPermeability ( ) const

inline

Returns the intrinsic permeability tensor a degree of freedom.

◆ intrinsicPermeability() [2/2]

template<class TypeTag >

const DimMatrix & Opm::FlashIntensiveQuantities< TypeTag >::intrinsicPermeability ( ) const

inline

Returns the intrinsic permeability tensor a degree of freedom.

◆ mobility() [1/3]

template<class TypeTag >

const Evaluation & Opm::FlashIntensiveQuantities< TypeTag >::mobility ( unsigned phaseIdx ) const

inline

Returns the effective mobility of a given phase within the control volume.

◆ mobility() [2/3]

template<class TypeTag >

const Evaluation & Opm::FlashIntensiveQuantities< TypeTag >::mobility ( unsigned phaseIdx ) const

inline

Returns the effective mobility of a given phase within the control volume.

◆ mobility() [3/3]

template<class TypeTag >

const Evaluation & Opm::FlashIntensiveQuantities< TypeTag >::mobility	(	unsigned	phaseIdx,
		FaceDir::DirEnum
	)		const

inline

Mobility across a face. Directional relative permeabilities are not supported, so the face direction is not used.

◆ operator=() [1/2]

template<class TypeTag >

FlashIntensiveQuantities & Opm::FlashIntensiveQuantities< TypeTag >::operator= ( const FlashIntensiveQuantities< TypeTag > & other )

default

◆ operator=() [2/2]

template<class TypeTag >

FlashIntensiveQuantities & Opm::FlashIntensiveQuantities< TypeTag >::operator= ( const FlashIntensiveQuantities< TypeTag > & other )

default

◆ phaseIsPresent()

template<class TypeTag >

bool Opm::FlashIntensiveQuantities< TypeTag >::phaseIsPresent ( unsigned phaseIdx ) const

inline

Presence for reporting, independent of the numerical hydrocarbon floor.

References Opm::FlashIntensiveQuantities< TypeTag >::saturationForOutput().

◆ porosity() [1/2]

template<class TypeTag >

const Evaluation & Opm::FlashIntensiveQuantities< TypeTag >::porosity ( ) const

inline

Returns the average porosity within the control volume.

◆ porosity() [2/2]

template<class TypeTag >

const Evaluation & Opm::FlashIntensiveQuantities< TypeTag >::porosity ( ) const

inline

Returns the average porosity within the control volume.

◆ relativePermeability() [1/2]

template<class TypeTag >

const Evaluation & Opm::FlashIntensiveQuantities< TypeTag >::relativePermeability ( unsigned phaseIdx ) const

inline

Returns the relative permeability of a given phase within the control volume.

◆ relativePermeability() [2/2]

template<class TypeTag >

const Evaluation & Opm::FlashIntensiveQuantities< TypeTag >::relativePermeability ( unsigned phaseIdx ) const

inline

Returns the relative permeability of a given phase within the control volume.

◆ rockCompTransMultiplier()

template<class TypeTag >

Scalar Opm::FlashIntensiveQuantities< TypeTag >::rockCompTransMultiplier ( ) const

inline

Transmissibility multiplier from rock compaction. Compositional runs reject ROCKCOMP, so it is one.

◆ saturationForOutput()

template<class TypeTag >

Scalar Opm::FlashIntensiveQuantities< TypeTag >::saturationForOutput ( unsigned phaseIdx ) const

inline

Saturation for reporting. The solver keeps the regularized saturations in fluidState(); a cell with no hydrocarbon reports water alone.

Referenced by Opm::FlashIntensiveQuantities< TypeTag >::phaseIsPresent().

◆ update() [1/2]

template<class TypeTag >

void Opm::FlashIntensiveQuantities< TypeTag >::update	(	const ElementContext &	elemCtx,
		unsigned	dofIdx,
		unsigned	timeIdx
	)

inline

◆ update() [2/2]

template<class TypeTag >

void Opm::FlashIntensiveQuantities< TypeTag >::update	(	const ElementContext &	elemCtx,
		unsigned	dofIdx,
		unsigned	timeIdx
	)

inline

References Opm::FlashIntensiveQuantities< TypeTag >::compositionFloor, and Opm::FlashIntensiveQuantities< TypeTag >::hydrocarbonFloor.

Member Data Documentation

◆ compositionFloor

template<class TypeTag >

constexpr Scalar Opm::FlashIntensiveQuantities< TypeTag >::compositionFloor = 1.0e-8

staticconstexpr

Minimum overall mole fraction of a component; the flash needs every component present.

Referenced by Opm::FlashIntensiveQuantities< TypeTag >::update().

◆ hydrocarbonFloor

template<class TypeTag >

constexpr Scalar Opm::FlashIntensiveQuantities< TypeTag >::hydrocarbonFloor = compositionFloor

staticconstexpr

Minimum hydrocarbon share of the pore space, including cells that would otherwise hold water alone. Component-storage derivatives scale with this share, so it cannot vanish. The value matches the composition floor.

Referenced by Opm::FlashIntensiveQuantities< TypeTag >::update().
